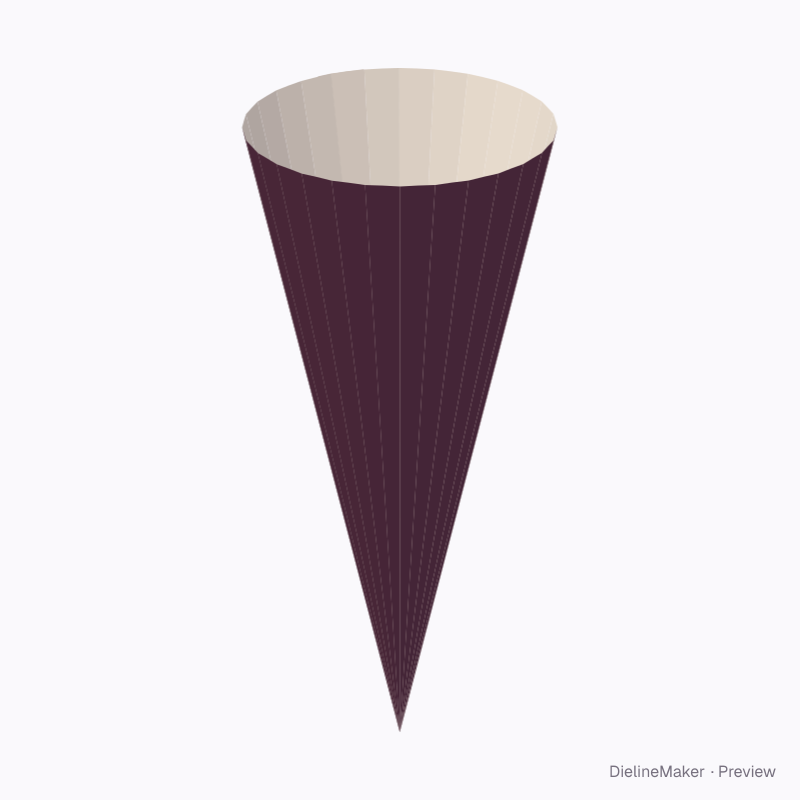

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureFood
Candy favour cone — Paper cone dieline
Editable 75 × 155 mm starting point using paper cone. Adjust the dimensions to your product before prototyping. A ready-sized preset of the paper cone — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 75 × 155 mm
OutsideØ 75 × 155 mm
Flat blank219.3 × 160.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Opening Ø 75 · Height 155 mm
- Size range
- Opening Ø 30–250 · Height 40–400 mm
- Manufacturing
- Ø 75 × 155 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.020 m² · about 22 up on a 720 × 1020 mm sheet
- Default board
- Food SBS, PE-coated 300 g · 0.45 mm caliper
- Board options
- Food SBS PEFood kraft PESBS 300Kraft 350Paper 170SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.45 mm for Food SBS, PE-coated 300 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Left strip ×7 | 8.5 × 160.5 | – |
| Front strip ×6 | 8.5 × 160.5 | – |
| Front strip | 8.5 × 160.5 | π·Ø / 28 × Slant |
| Right strip ×7 | 8.5 × 160.5 | – |
| Back strip ×5 | 8.5 × 160.5 | – |
| Back strip ×2 | 160.5 × 8.5 | – |
| Glue overlap | 160.5 × 8.5 | – |
| Glue overlap | 160.5 × 3.5 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Open tip Ømm
- Glue overlapmm
The paper cone family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this candy favour cone — paper cone yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
