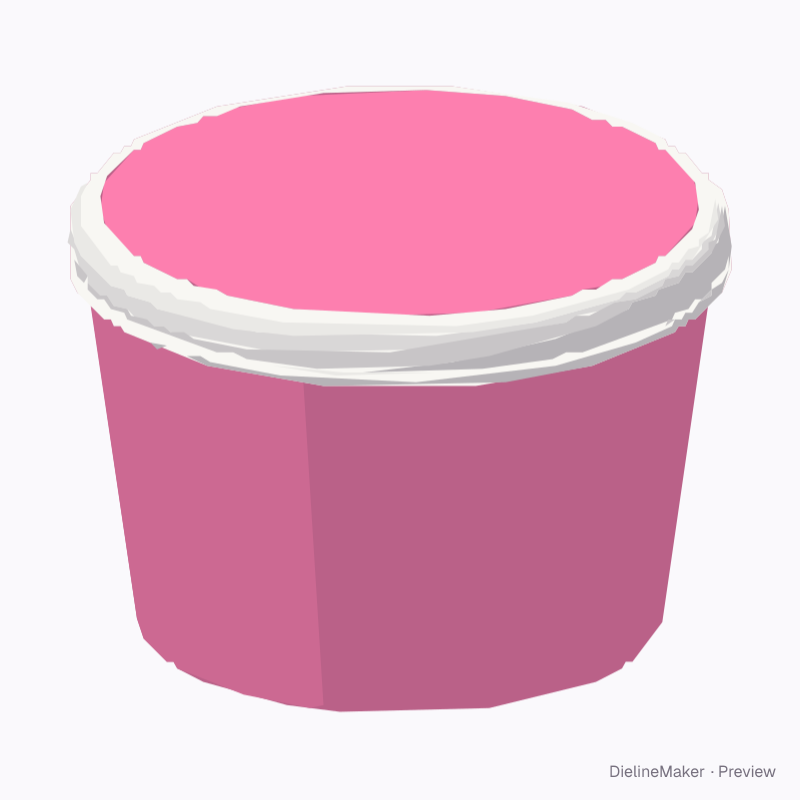

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureLabels
Single-serve ice cream cup 5 oz dieline
Single-serve ice-cream or gelato cup with a paper lid and separate lid artwork. Editable starting dimensions: 85 mm rim, 70 mm base and 52 mm body height. A ready-sized preset of the paper ice cream pint — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 85 × 52 mm
OutsideØ 85 × 52 mm
Flat blank263.3 × 93.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Rim diameter 85 · Body height 52 mm
- Size range
- Rim diameter 65–150 · Body height 35–150 mm
- Manufacturing
- Ø 85 × 52 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Developed paper wall, Lid print disc
- Board area
- 0.018 m² · about 28 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
- Board options
- SBS 300Paper 170Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Side seammm
- Cup construction3 options
- Paper handle2 options
- Base diametermm
- Paper lidon / off
The paper ice cream pint family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this single-serve ice cream cup 5 oz yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
