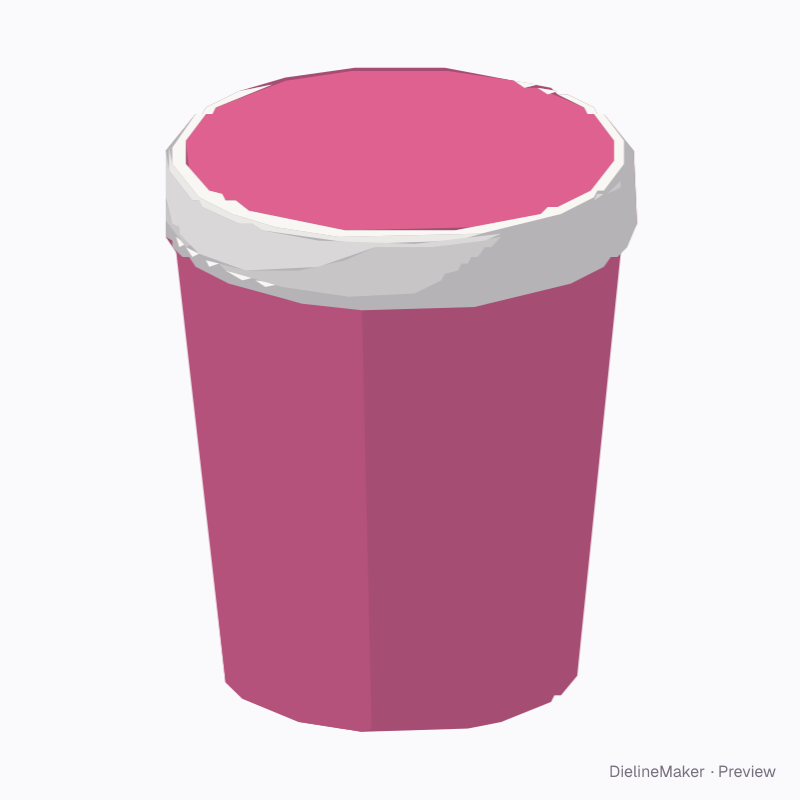

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureLabels
Ice cream pint 473 ml dieline
A tapered paperboard wall, rolled paper rim and matching paper lid. The body artwork uses the true developed cone with its seam overlap; the lid disc is its print area. Base and lid forming allowances must come from the converter. A ready-sized preset of the paper ice cream pint — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 97 × 104 mm
OutsideØ 97 × 104 mm
Flat blank306.1 × 136 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Rim diameter 97 · Body height 104 mm
- Size range
- Rim diameter 65–150 · Body height 35–150 mm
- Manufacturing
- Ø 97 × 104 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Developed paper wall, Lid print disc
- Board area
- 0.036 m² · about 16 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
- Board options
- SBS 300Paper 170Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Side seammm
- Cup construction3 options
