Parametric structureDisplay
Peg-hook floor display dieline
A corrugated backboard with paired hook holes, folding side supports, a foot and a separate stabilizing base. The mockup includes metal hooks; exported cuts cover the board pieces. Hook fit, load capacity and tip resistance need a physical prototype. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside450 × 300 × 1400 mm
Outside450 × 300 × 1400 mm
Flat blank1050 × 1700 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 450 · Support depth 300 · Height 1400 mm
- Size range
- Width 250–800 · Support depth 180–500 · Height 600–1800 mm
- Manufacturing
- 450 × 300 × 1400 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Backboard and folding supports, Stabilizing base
- Board area
- 1.475 m²
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WB-fluteEB double
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Perforated backboardBackboard and folding supports | 450 × 1400 | L × H |
| Left supportBackboard and folding supports | 300 × 1400 | W × H |
| Right supportBackboard and folding supports | 300 × 1400 | W × H |
| Fold-under footBackboard and folding supports | 450 × 300 | L × W |
| Stabilizing baseStabilizing base | 510 × 380 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Hook rowscount
- Hook columnscount

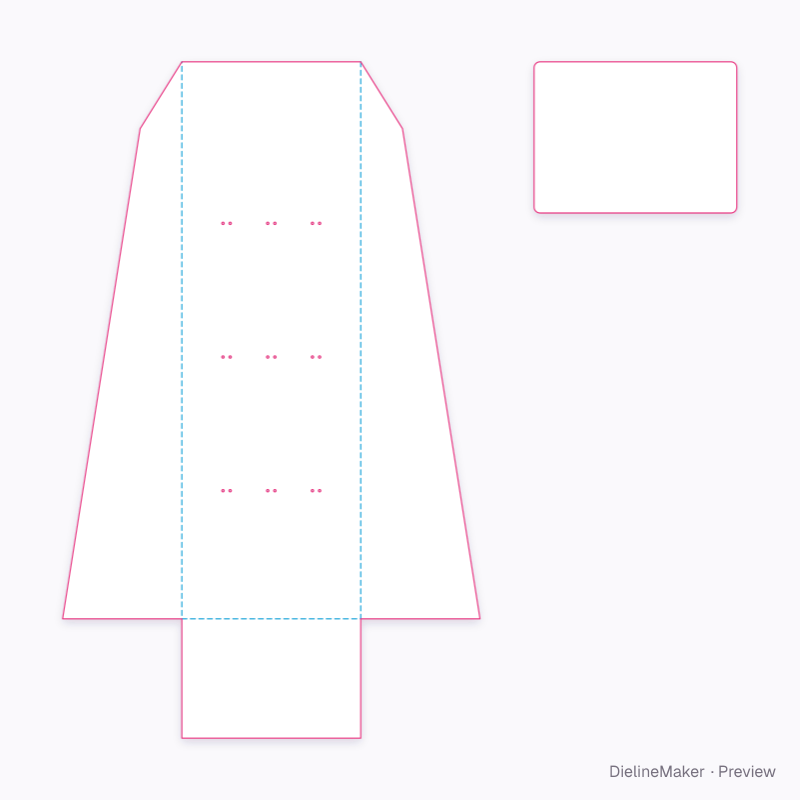

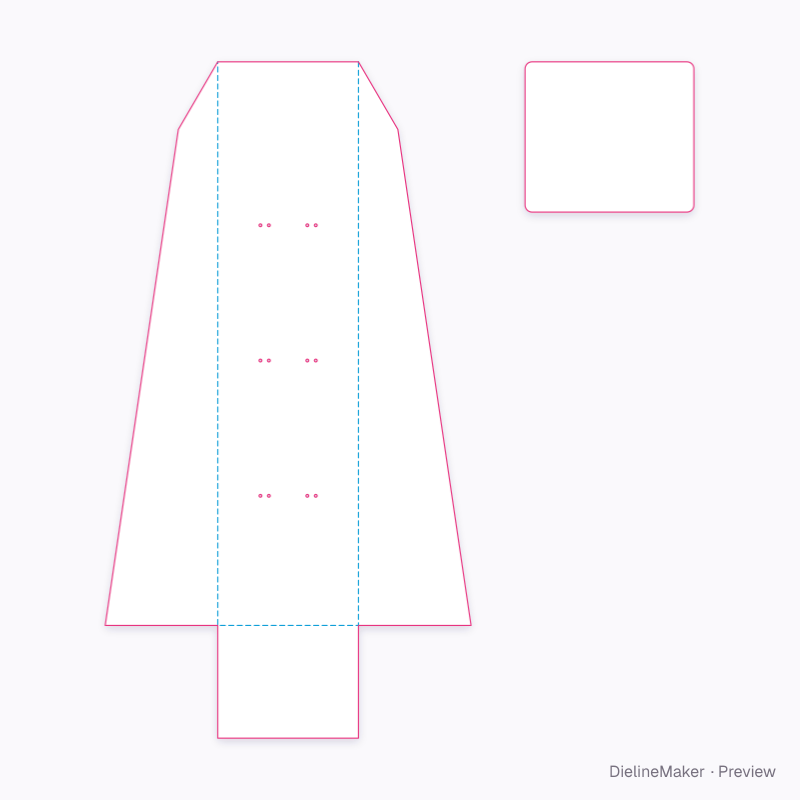

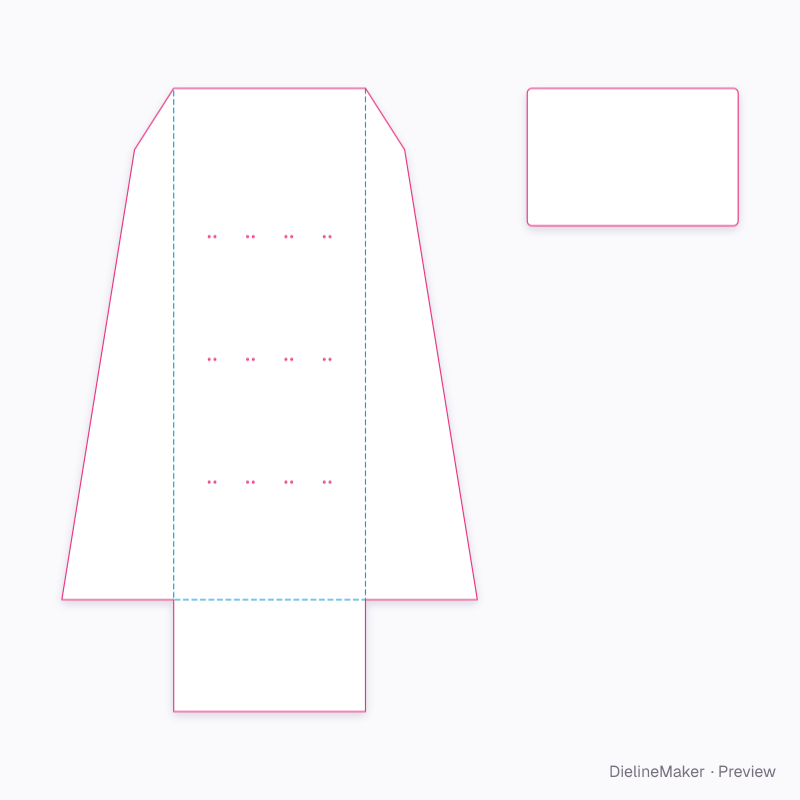

Ready-sized peg-hook floor display presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset

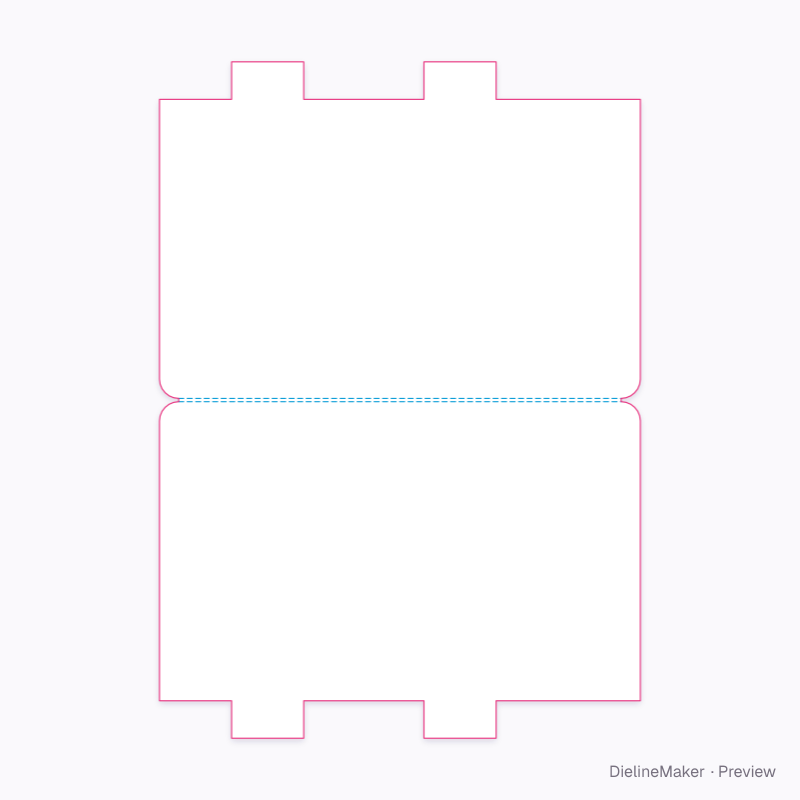

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this peg-hook floor display yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
