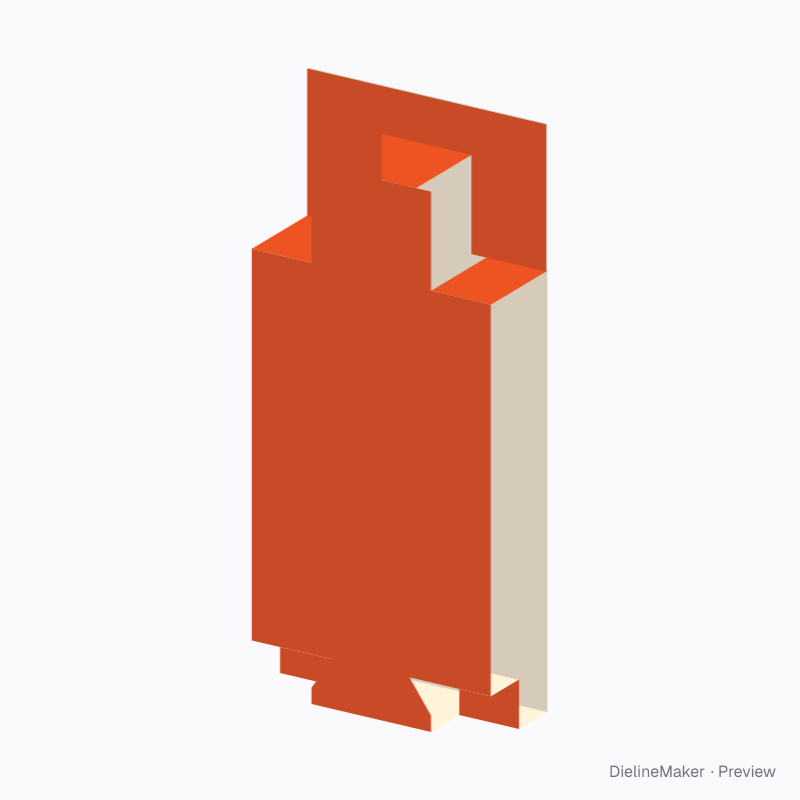

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F50.04.00.00Display
Interlocking backboard pack dieline
A glued tube on a full-height backboard: the middle rises into a tower over the top, the outer quarters step in at the foot, so neighbouring packs key into each other. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside120 × 45 × 270 mm
Outside120 × 46 × 270 mm
Flat blank631 × 120 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F50.04.00.00
- Inside size
- Width (A) 120 · Depth (B) 45 · Backboard height 270 mm
- Size range
- Width (A) 40–400 · Depth (B) 15–150 · Backboard height 80–600 mm
- Manufacturing
- 120 × 45.5 × 270 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.076 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350SBS 300F-fluteSBS 18 pt
- Good for

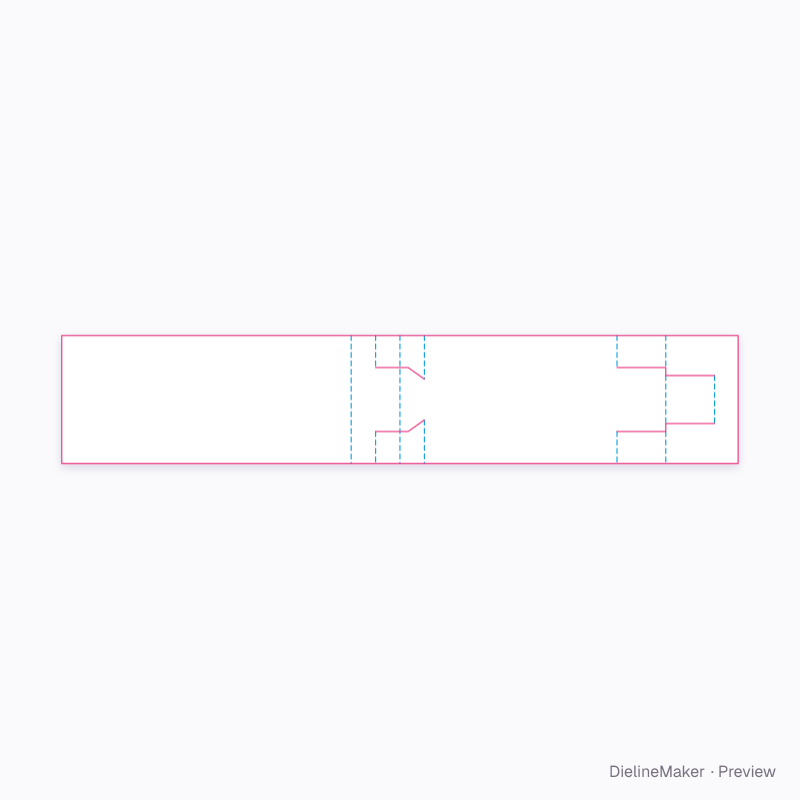

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F50.04.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 248 × 120 | – × L |
| Bottom | 45.5 × 60 | W + T × – |
| Backboard | 270 × 120 | H × L |
| Step top ×2 | 22.8 × 40.8 | – |
| Step riser ×2 | 22.8 × 30 | – |
| Top ×2 | 45.5 × 30 | W + T × – |
| Tower top | 45.5 × 45 | W + T × – |
| Glued back panel | 67.5 × 30 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Glued back panelmm
- Tower widthmm
