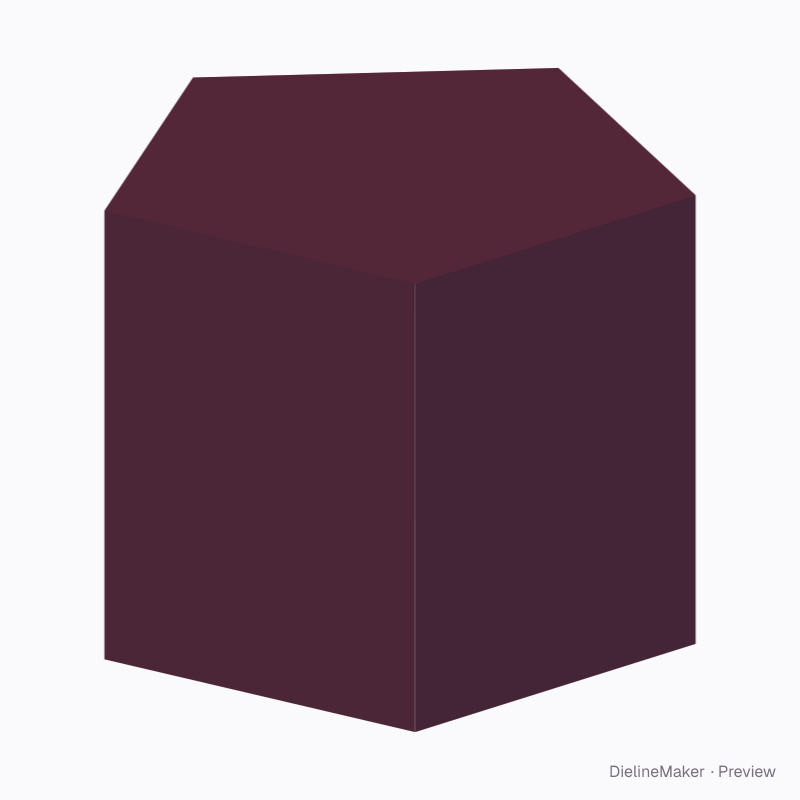

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
Polygon mini hamper — Pentagon box dieline
Editable 190 × 155 mm starting point using pentagon box. Adjust the dimensions to your product before prototyping. A ready-sized preset of the pentagon box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside190 × 155 mm
Outside191 × 156 mm
Flat blank624.9 × 544.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 190 · Height 155 mm
- Size range
- Width 40–300 · Height 20–400 mm
- Manufacturing
- 190.5 × 155.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.174 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350SBS 18 pt
- Good for

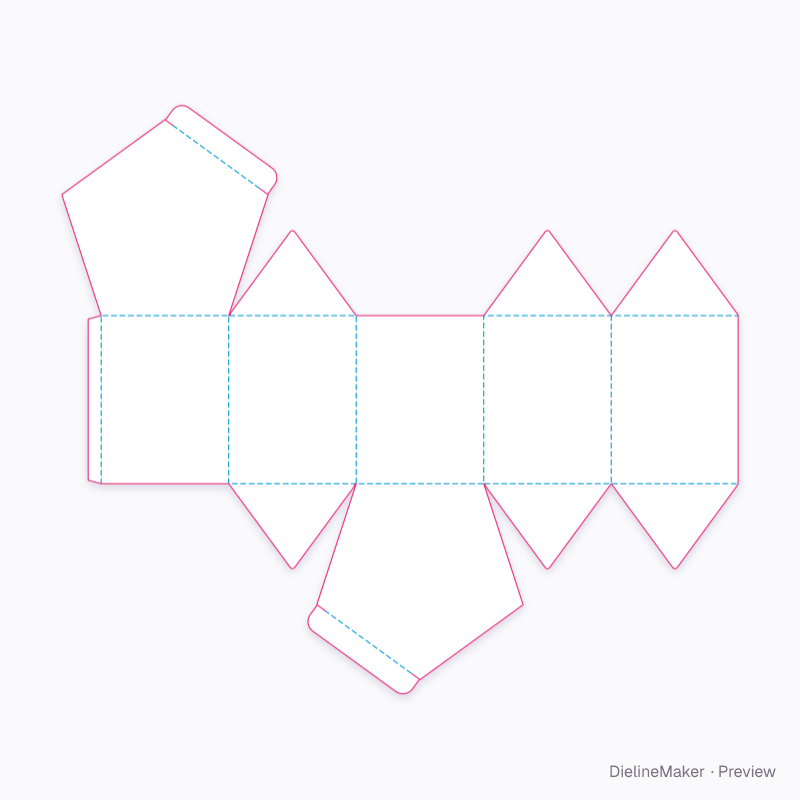

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Back left | 117.8 × 155.5 | side × H + T |
| Left | 117.8 × 155.5 | side × H + T |
| Front | 117.8 × 155.5 | side × H + T |
| Right | 117.8 × 155.5 | side × H + T |
| Back right | 117.3 × 155.5 | side − T × H + T |
| Glue flap | 12 × 155.5 | – × H + T |
| Top lid | 117.8 × 181.3 | – |
| Tuck ×2 | 116.8 × 22 | – |
| Top dust flap | 116.7 × 78.5 | – |
| Top dust flap | 117.8 × 78.5 | – |
| Top dust flap | 117.3 × 78.5 | – |
| Bottom lid | 117.8 × 181.3 | – |
| Bottom dust flap ×2 | 116.7 × 78.5 | – |
| Bottom dust flap | 117.3 × 78.5 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Tuck depthmm
- Slit lockon / off
The pentagon box family
The same structure with sizes, boards and options set for a use.

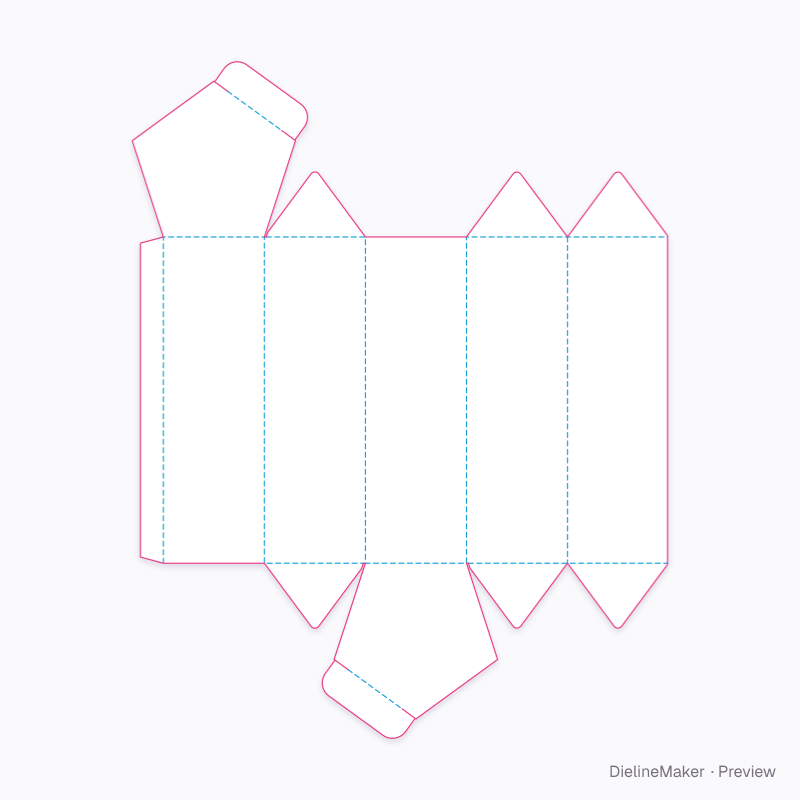

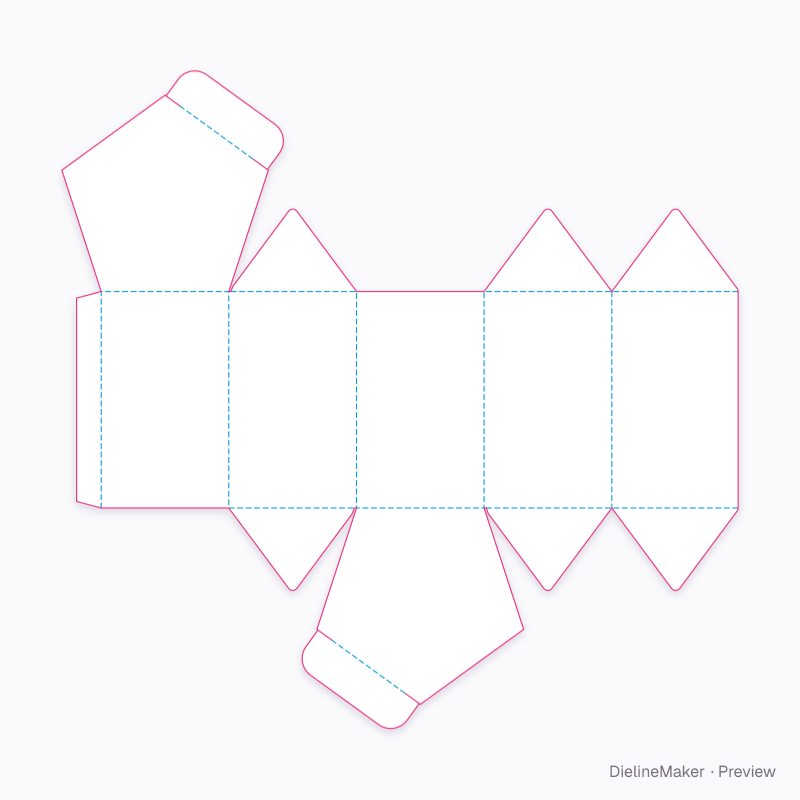

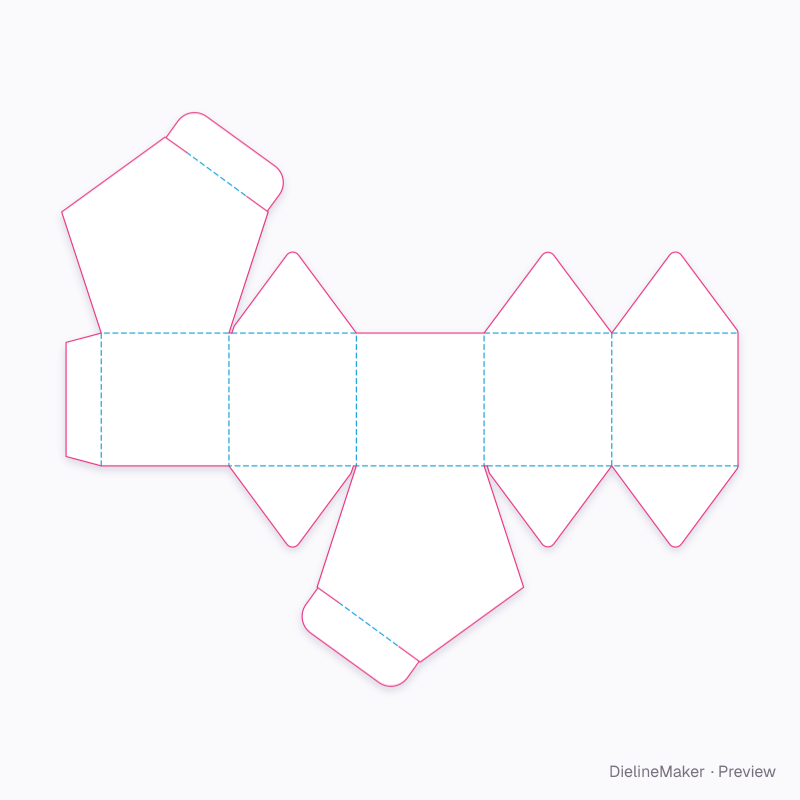

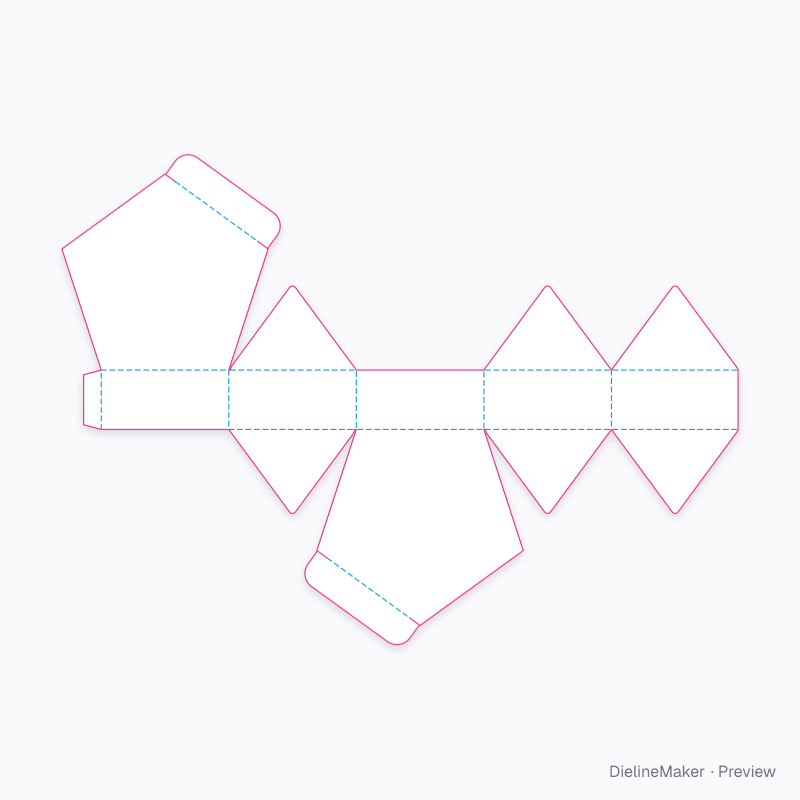

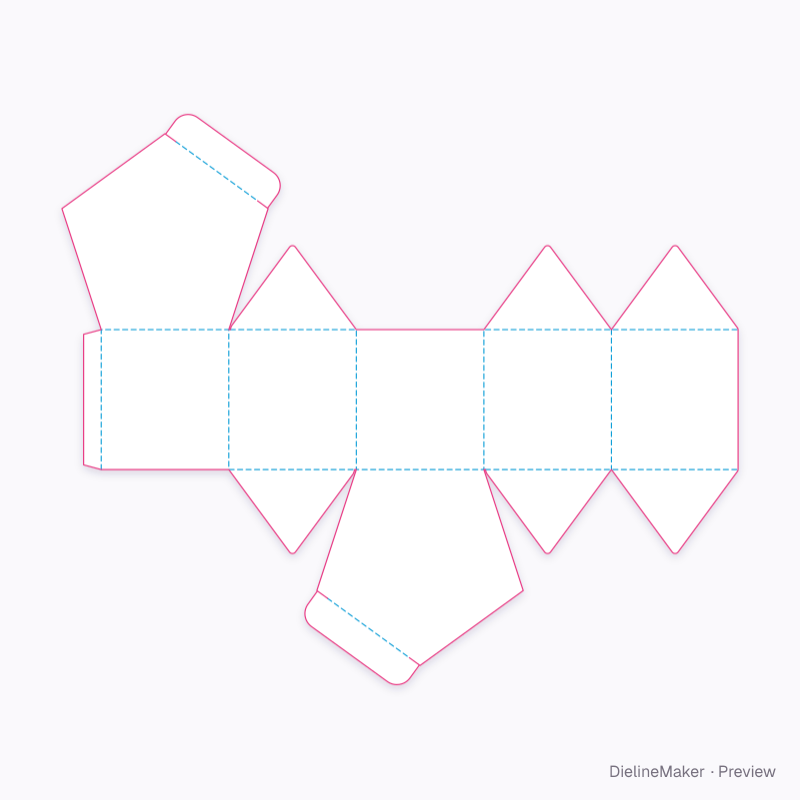

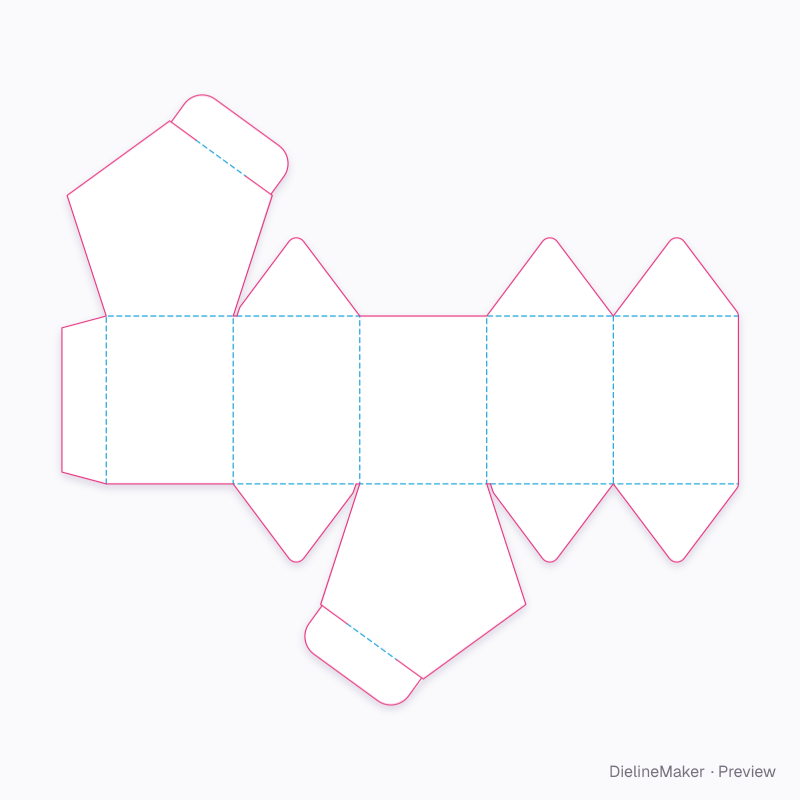

Preset
