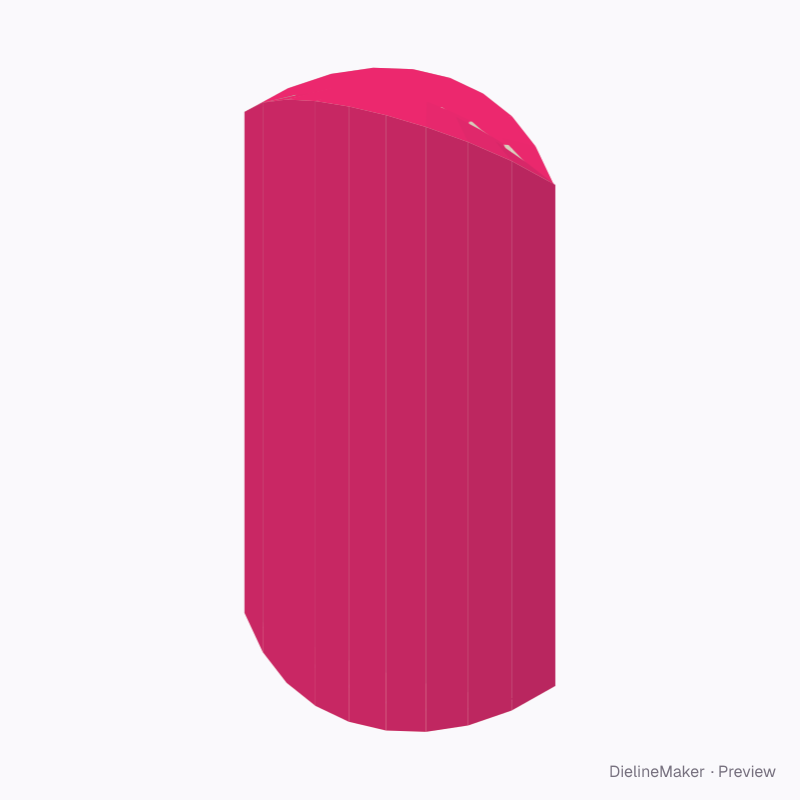

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F70.01.00.00Shapes
Tie pillow box dieline
Gift pack for a folded necktie or bow tie. A ready-sized preset of the pillow box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside160 × 95 × 30 mm
Outside161 × 95 × 31 mm
Flat blank201.5 × 189.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F70.01.00.00
- Inside size
- Length 160 · Width 95 · Depth 30 mm
- Size range
- Length 50–400 · Width 30–300 · Depth 6–120 mm
- Manufacturing
- 160.5 × 95 × 30.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.034 m² · about 12 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350Black 350PET 0.3SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F70.01.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Back strip 1 | 10.5 × 142.1 | – |
| Back top flap ×2 | 12.1 × 7.3 | – |
| Back bottom flap ×2 | 12.1 × 7.3 | – |
| Back strip 2 | 10.5 × 150.6 | – |
| Back top flap ×2 | 11.3 × 11.3 | – |
| Back bottom flap ×2 | 11.3 × 11.3 | – |
| Back strip 3 | 10.5 × 156 | – |
| Back top flap ×2 | 10.8 × 13.6 | – |
| Back bottom flap ×2 | 10.8 × 13.6 | – |
| Back strip 4 | 10.5 × 158.7 | – |
| Back top flap ×2 | 10.6 × 14.8 | – |
| Back bottom flap ×2 | 10.6 × 14.8 | – |
| Back strip 5 | 10.5 × 158.7 | (W − T) / 9 × L − H |
| Back top flap | 10.5 × 15.2 | – |
| Back bottom flap | 10.5 × 15.2 | – |
| Back strip 6 | 10.5 × 156 | – |
23 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- End flap depthmm
- Hang tabon / off
- Carry handleon / off
- Opening buttonholeon / off
