FEFCO 0427Food
13-inch pizza box — Pizza box dieline
Editable 335 × 335 × 48 mm starting point using pizza box. Adjust the dimensions to your product before prototyping. A ready-sized preset of the pizza box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside335 × 335 × 48 mm
Outside351 × 338.2 × 51.2 mm
Flat blank547.8 × 812 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0427
- Inside size
- Length 335 · Width 335 · Height 48 mm
- Size range
- Length 150–600 · Width 150–600 · Height 25–100 mm
- Manufacturing
- 349.4 × 336.6 × 49.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.384 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KB-fluteE-flute WEB double
- Good for

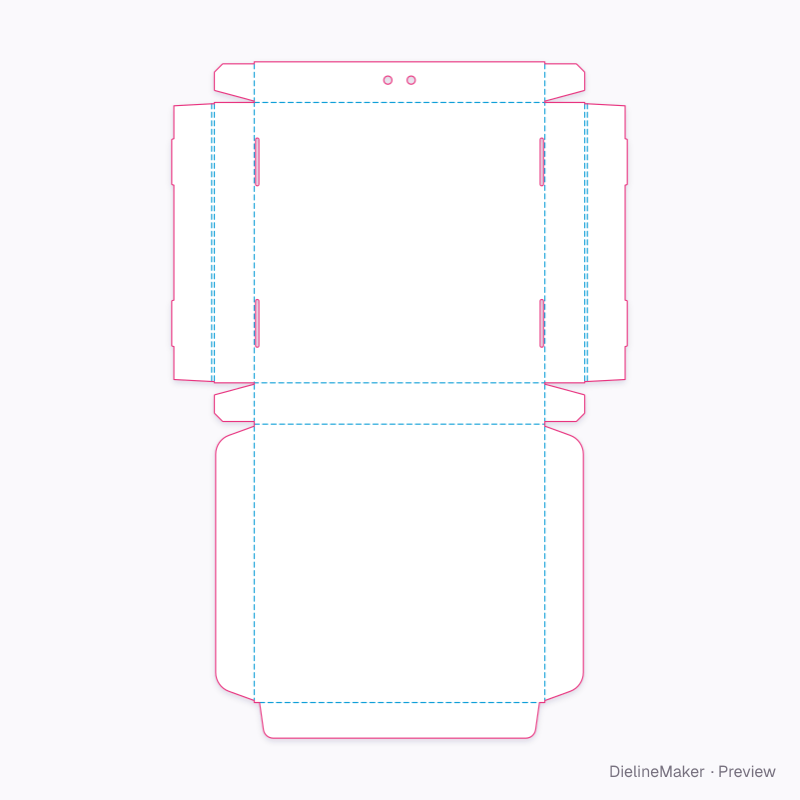

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0427 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 349.4 × 336.6 | – |
| Front | 349.4 × 48.8 | – × H + T/2 |
| Back | 349.4 × 49.6 | – × H + T |
| Front ear ×2 | 48 × 44.8 | H × H − 2T |
| Back ear ×2 | 48 × 44.8 | H × H − 2T |
| Left end | 48 × 336.6 | H × – |
| Left end roll | 3.2 × 333.4 | – |
| Left end (inside) | 48 × 333.4 | H × – |
| Right end | 48 × 336.6 | H × – |
| Right end roll | 3.2 × 333.4 | – |
| Right end (inside) | 48 × 333.4 | H × – |
| Lid | 349.4 × 334.2 | – |
| Lid ear ×2 | 46.4 × 329.4 | H − T × – |
| Front tuck | 336.6 × 42.8 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Front tuck depthmm
- Lid earson / off
- Lid ear depthmm
- Lock tonguescount
- Vent holescount
- Thumb notchon / off
