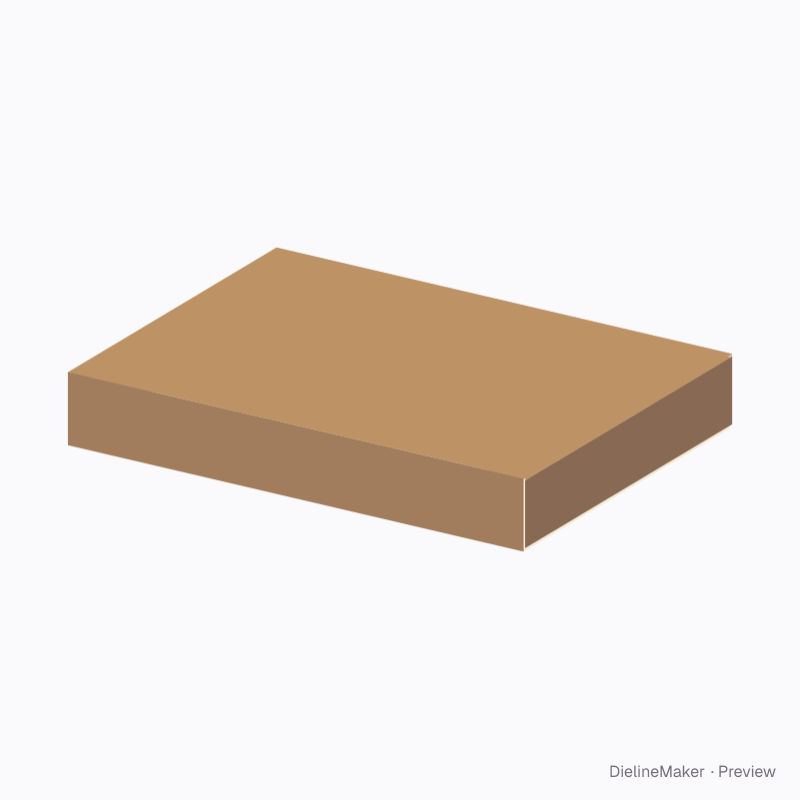

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0400Shipping
Standard folder and book wrap dieline
One-piece and separate-piece folders, with construction-specific covers, end closures and corner connections. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 220 × 40 mm
Outside306.4 × 224.8 × 46.4 mm
Flat blank440 × 754.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0400
- Inside size
- Length 300 · Width 220 · Height 40 mm
- Size range
- Length 120–1200 · Width 80–900 · Height 10–160 mm
- Manufacturing
- 304.8 × 221.6 × 43.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.260 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteSBS 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0400 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Floor | 304.8 × 221.6 | – × W + T |
| e wall | 41.6 × 221.6 | H + T × W + T |
| Closing flap ×2 | 26 × 218.4 | – × W − T |
| w wall | 41.6 × 221.6 | H + T × W + T |
| back | 304.8 × 43.2 | – × H + 2T |
| cover | 304.8 × 223.2 | – × W + 2T |
| front | 304.8 × 44.8 | – |
| underlap | 304.8 × 221.6 | – × W + T |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Construction12 options
- End flap depthmm
Ready-sized standard folder and book wrap presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
