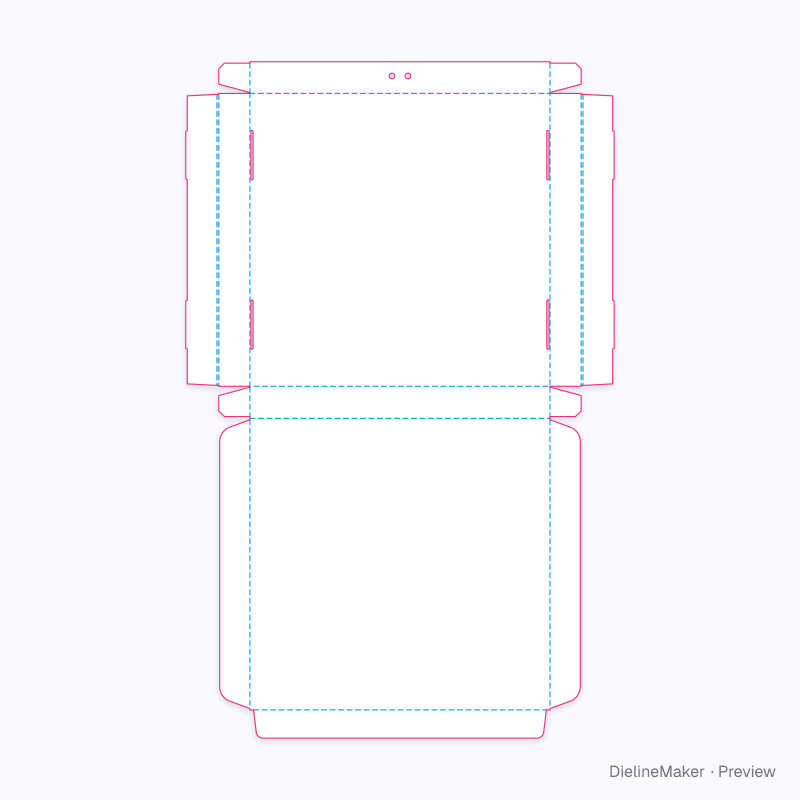

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0427Food
20-inch sharing pizza box — Pizza box dieline
Editable 515 × 515 × 55 mm starting point using pizza box. Adjust the dimensions to your product before prototyping. A ready-sized preset of the pizza box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside515 × 515 × 55 mm
Outside531 × 518.2 × 58.2 mm
Flat blank755.8 × 1193 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0427
- Inside size
- Length 515 · Width 515 · Height 55 mm
- Size range
- Length 150–600 · Width 150–600 · Height 25–100 mm
- Manufacturing
- 529.4 × 516.6 × 56.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.807 m²
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KB-fluteE-flute WEB double
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0427 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 529.4 × 516.6 | – |
| Front | 529.4 × 55.8 | – × H + T/2 |
| Back | 529.4 × 56.6 | – × H + T |
| Front ear ×2 | 55 × 51.8 | H × H − 2T |
| Back ear ×2 | 55 × 51.8 | H × H − 2T |
| Left end | 55 × 516.6 | H × – |
| Left end roll | 3.2 × 513.4 | – |
| Left end (inside) | 55 × 513.4 | H × – |
| Right end | 55 × 516.6 | H × – |
| Right end roll | 3.2 × 513.4 | – |
| Right end (inside) | 55 × 513.4 | H × – |
| Lid | 529.4 × 514.2 | – |
| Lid ear ×2 | 53.4 × 509.4 | H − T × – |
| Front tuck | 516.6 × 49.8 | – |
