DM-CENTRE-LID-MAILER-01Mailer
Centre-lock double-lid mailer dieline
A one-piece die-cut corrugated box: rolled end walls trap the corner ears, and two chamfered half lids, one on each long wall, meet at the centre. The back lid overlaps the front lid and its tongue drops through a slot, so the box closes without tape or glue. Close the front lid first. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 220 × 100 mm
Outside311.2 × 223.2 × 103.2 mm
Flat blank717.6 × 674.7 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CENTRE-LID-MAILER-01
- Inside size
- Length 300 · Width 220 · Height 100 mm
- Size range
- Length 150–600 · Width 80–450 · Height 20–150 mm
- Manufacturing
- 309.6 × 221.6 × 101.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.324 m²
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteF-flute
- Good for

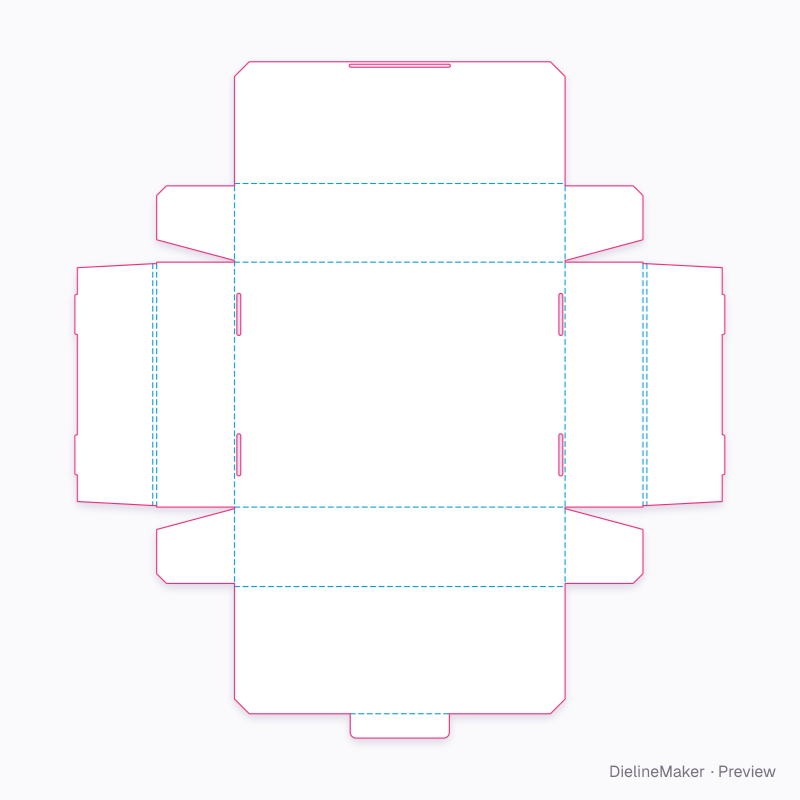

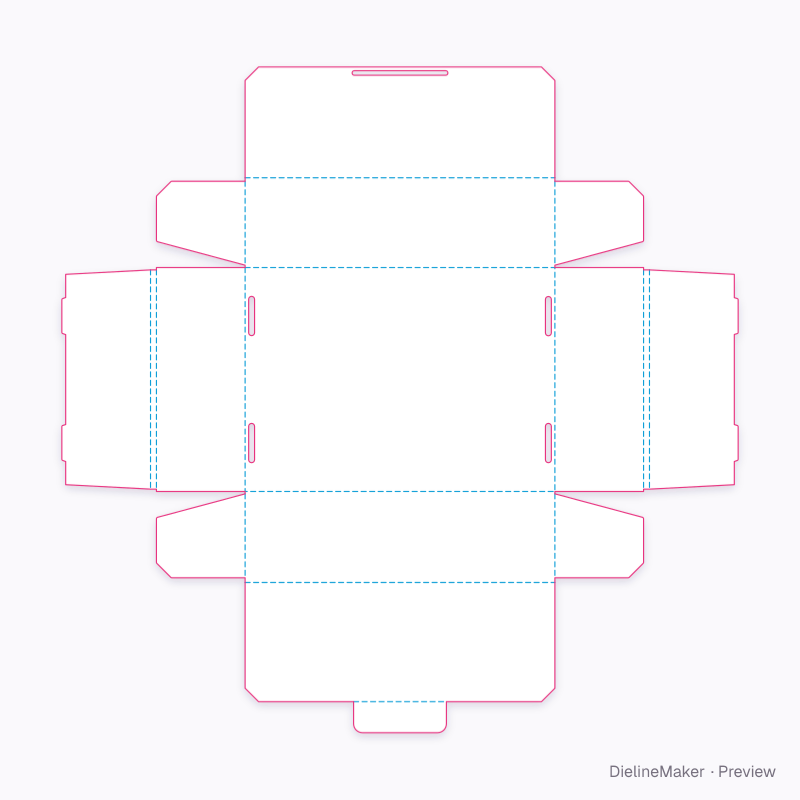

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How it folds
The centre-lock double-lid mailer erects in 7 steps, in the order the creases are scored to take. The editor plays the same sequence in 3D and lights each step’s creases on the dieline.
- 1Fold the walls upFront, Back
- 2Fold the corner ears inFront ear, Back ear and 2 more
- 3Fold the walls upLeft end, Right end
- 4Fold the stripLeft end roll, Left end (inside)
- 5Fold the stripRight end roll, Right end (inside)
- 6Close the lidFront lid, Back lid
- 7Tuck the flaps inCentre lock tongue
How the blank is sized
Score-to-score panel sizes of this DM-CENTRE-LID-MAILER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 309.6 × 221.6 | – × W + T |
| Front | 309.6 × 100.8 | – × H + T/2 |
| Back | 309.6 × 101.6 | – × H + T |
| Front ear ×2 | 100 × 96.8 | – × H − 2T |
| Back ear ×2 | 100 × 96.8 | – × H − 2T |
| Left end | 100 × 221.6 | H × W + T |
| Left end roll | 4 × 218.4 | – × W − T |
| Left end (inside) | 100 × 218.4 | H × W − T |
| Right end | 100 × 221.6 | H × W + T |
| Right end roll | 4 × 218.4 | – × W − T |
| Right end (inside) | 100 × 218.4 | H × W − T |
| Front lid | 309.6 × 110 | – |
| Back lid | 309.6 × 115.7 | – |
| Centre lock tongue | 92.9 × 25 | – |
