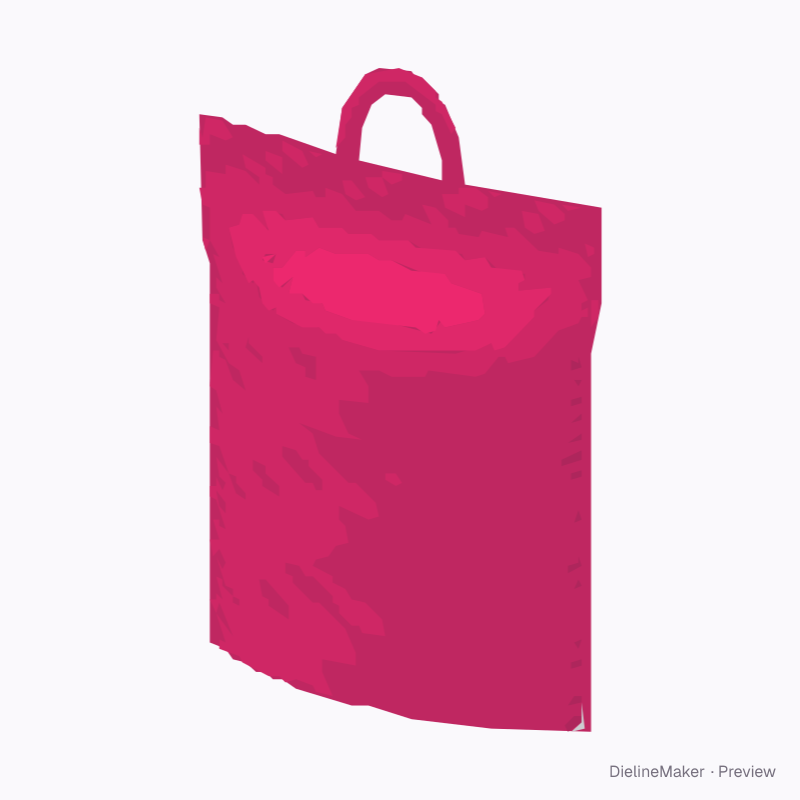

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureBags & pouches
Soft-loop handle plastic bag — large dieline
A continuous bag web with an optional bottom gusset, and two separate flexible handle strips. The attachment bands identify where each loop end is welded to the bag. Film caliper, sealing conditions and carrying strength must match the converter’s specification. A ready-sized preset of the soft-loop handle plastic bag — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside450 × 550 mm
Outside450 × 550 mm
Flat blank450 × 1220 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Face width 450 · Bag body height 550 mm
- Size range
- Face width 140–650 · Bag body height 150–800 mm
- Manufacturing
- 450 × 550 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Continuous bag film, Front loop handle strip, Back loop handle strip
- Board area
- 0.564 m²
- Default board
- White LDPE carrier film · 0.06 mm caliper
- Board options
- White LDPEClear LDPEHDPE
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.06 mm for White LDPE carrier film). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontContinuous bag film | 450 × 550 | L × H |
| Bottom gussetContinuous bag film | 450 × 120 | L × – |
| BackContinuous bag film | 450 × 550 | L × H |
| Handle stripFront loop handle strip | 25 × 296.6 | – |
| Handle stripBack loop handle strip | 25 × 296.6 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Bottom gusset half-web (G)mm
- Seal widthmm
- Preview fill%
- Loop end spacingmm
- Loop rise above mouthmm
