Parametric structureBags & pouches
Wicketed bakery bag dieline
An open-top film bag with an extended rear lip, two real wicket holes, a tear-off perforation and optional bottom gusset. The continuous front–bottom–back web includes the extended lip. Film caliper, sealing conditions and carrying strength must match the converter’s specification. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 400 mm
Outside300 × 400 mm
Flat blank300 × 840 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Face width 300 · Bag body height 400 mm
- Size range
- Face width 140–650 · Bag body height 150–800 mm
- Manufacturing
- 300 × 400 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.252 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- White LDPE carrier film · 0.06 mm caliper
- Board options
- White LDPEClear LDPEHDPE
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Perforation
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.06 mm for White LDPE carrier film). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 300 × 400 | L × H |
| Back | 300 × 400 | L × H |
| Wicket lip | 300 × 40 | L × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Bottom gusset half-web (G)mm
- Seal widthmm
- Preview fill%
- Wicket lip heightmm
- Wicket hole centresmm
Ready-sized wicketed bakery bag presets
The same structure with sizes, boards and options set for a use.

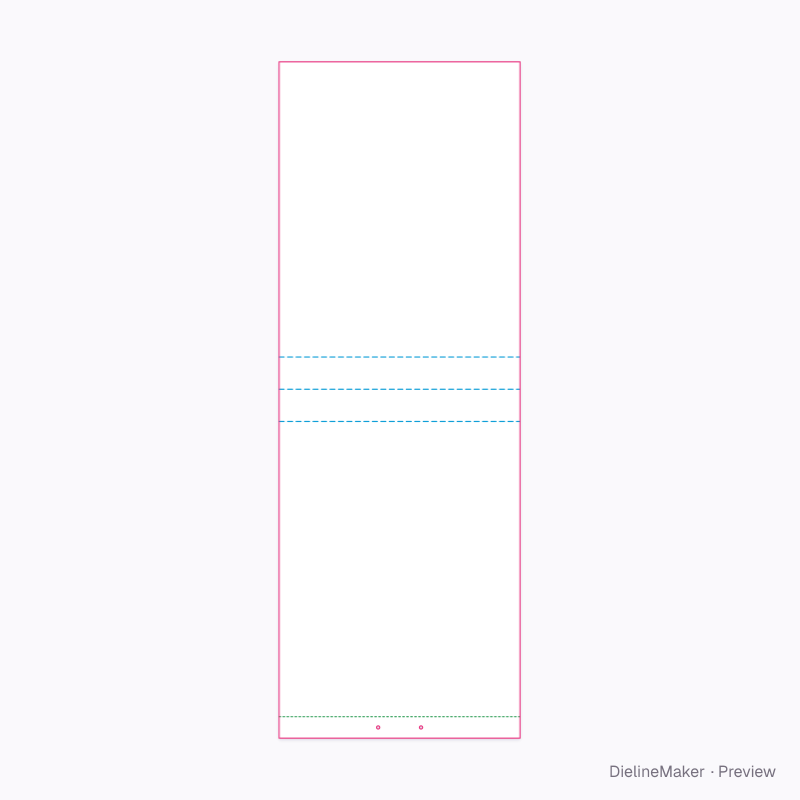

- Preset

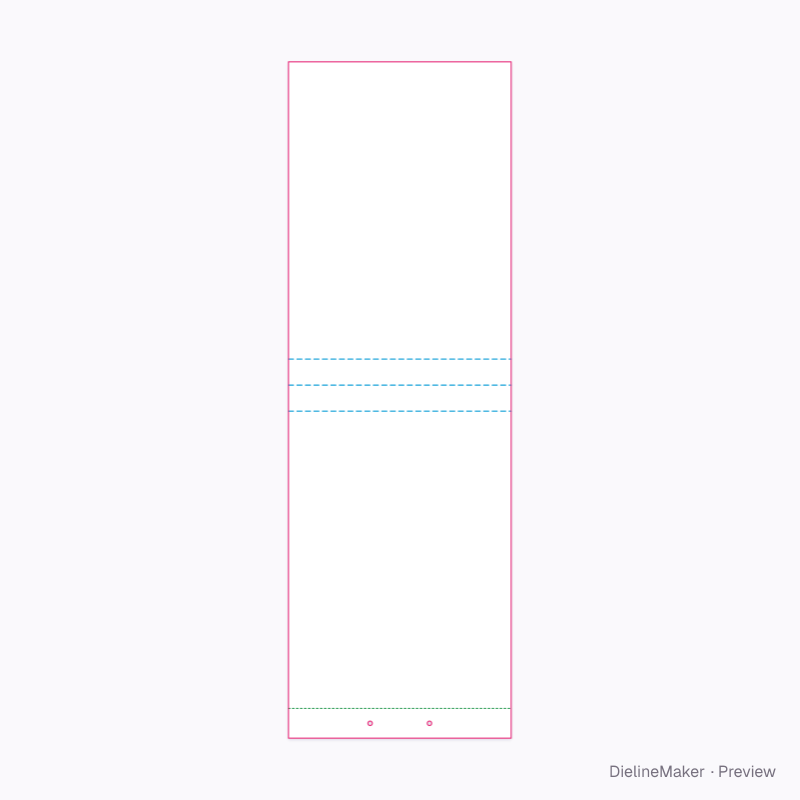

Preset

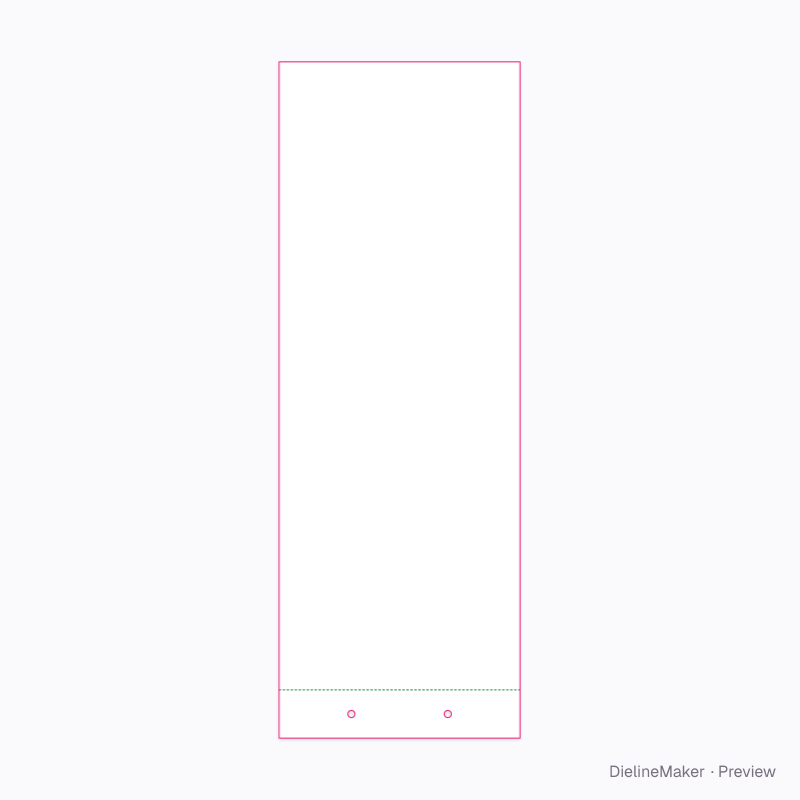

Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this wicketed bakery bag yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
