DM-BACKBOARD-POCKET-GRID-01Display
Backboard with pocket or shelf grid dieline
A freestanding backboard carrying a grid of separately folded literature pockets or small shelves, each keyed into paired slots in the board. Integral rear foot and brace. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 40 × 600 mm
Outside403.2 × 43.2 × 603.2 mm
Flat blank400 × 1021.7 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-BACKBOARD-POCKET-GRID-01
- Inside size
- Board width 400 · Holder depth 40 · Board height 600 mm
- Size range
- Board width 150–1200 · Holder depth 15–200 · Board height 200–1800 mm
- Manufacturing
- 401.6 × 41.6 × 601.6 mm score to score · inside vs outside sizes
- Parts
- 7 parts — Backboard, Pocket 1, Pocket 2, Pocket 3, Pocket 4, Pocket 5, Pocket 6
- Board area
- 0.629 m²
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KB-fluteSBS 350FBB 400SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-BACKBOARD-POCKET-GRID-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BackboardBackboard | 400 × 600 | L × H |
| FootBackboard | 400 × 150 | L × – |
| Rear braceBackboard | 400 × 271.7 | L × – |
| Pocket bottomPocket 1 | 170 × 51.2 | – |
| Pocket frontPocket 1 | 170 × 104.4 | – |
| Side gusset ×2Pocket 1 | 104.4 × 40 | – × W |
| Glue flap ×2Pocket 1 | 20 × 100.2 | – |
| Pocket bottomPocket 2 | 170 × 51.2 | – |
| Pocket frontPocket 2 | 170 × 104.4 | – |
| Side gusset ×2Pocket 2 | 104.4 × 40 | – × W |
| Glue flap ×2Pocket 2 | 20 × 100.2 | – |
| Pocket bottomPocket 3 | 170 × 51.2 | – |
| Pocket frontPocket 3 | 170 × 104.4 | – |
| Side gusset ×2Pocket 3 | 104.4 × 40 | – × W |
| Glue flap ×2Pocket 3 | 20 × 100.2 | – |
| Pocket bottomPocket 4 | 170 × 51.2 | – |
11 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Holders2 options
- Rowscount
- Columnscount
- Gap between holdersmm
- Pocket front / shelf lipmm
- Shelf gusset heightmm

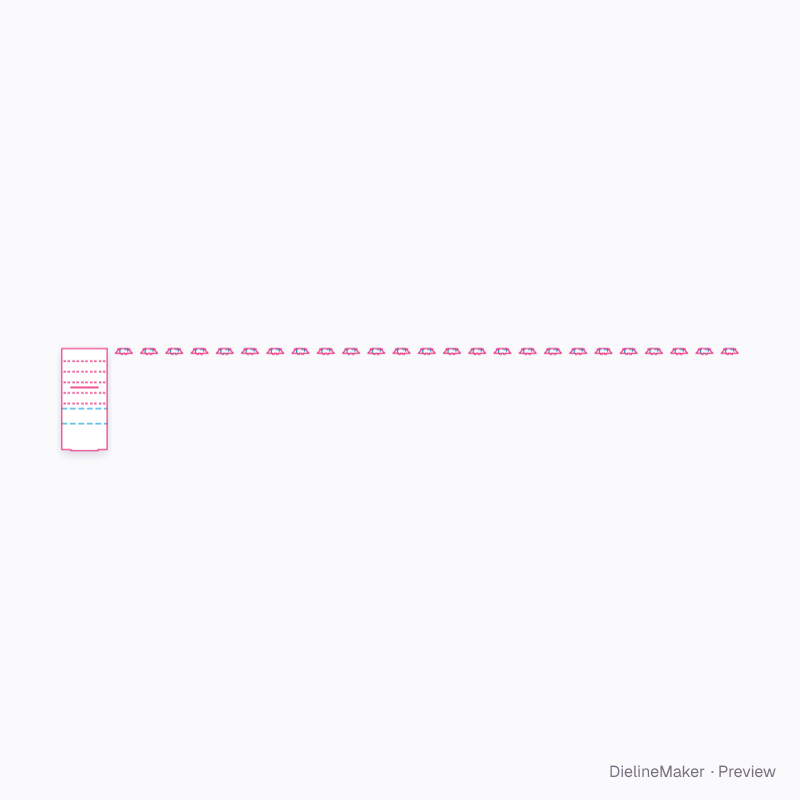

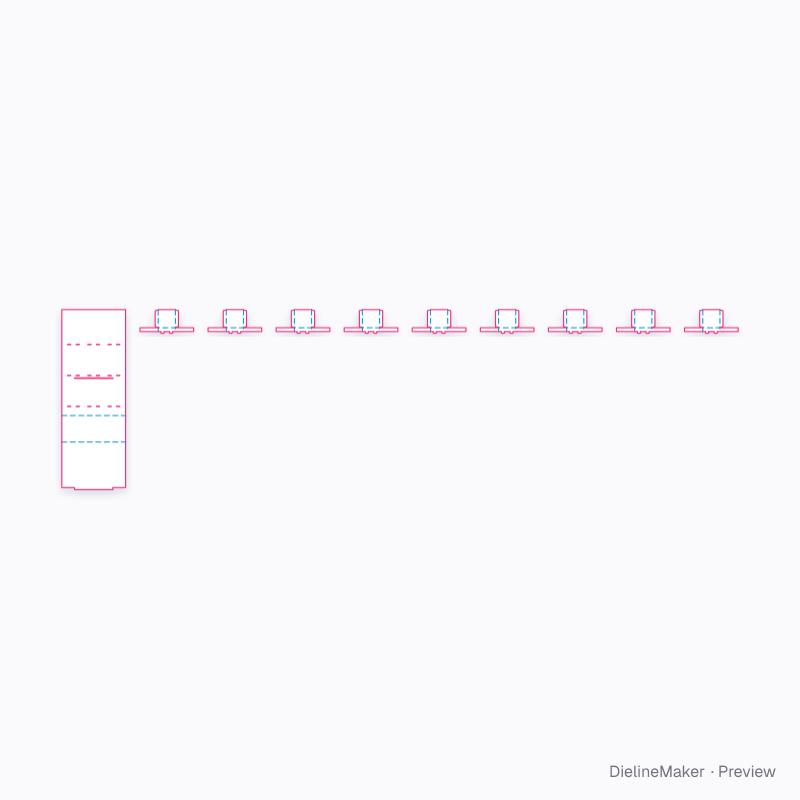

Ready-sized backboard with pocket or shelf grid presets
