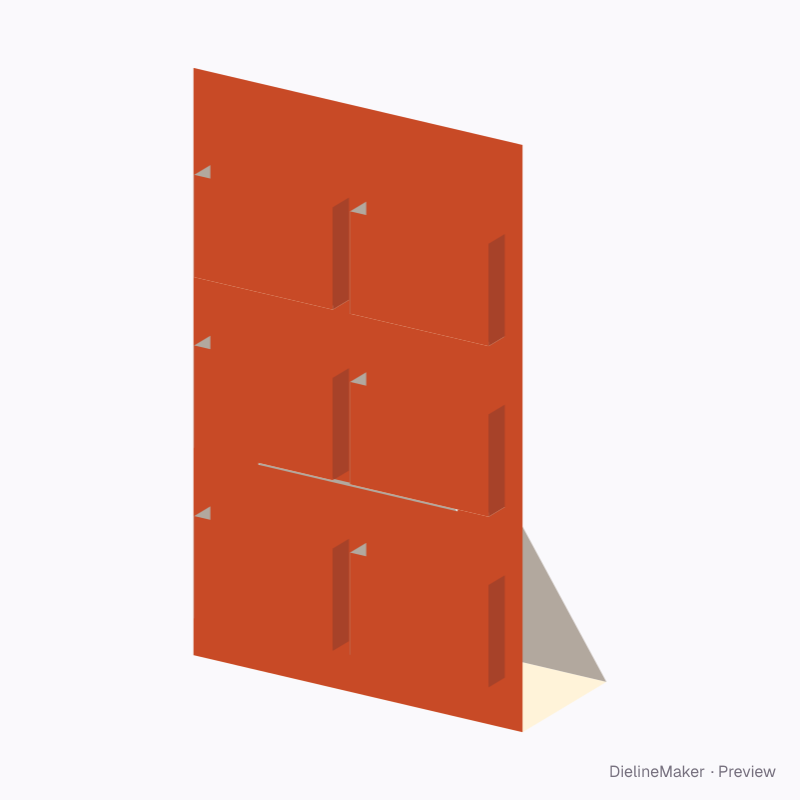

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-BACKBOARD-POCKET-GRID-01Display
Six-pocket leaflet backboard (A5) dieline
A freestanding backboard carrying a grid of separately folded literature pockets or small shelves, each keyed into paired slots in the board. Integral rear foot and brace. A ready-sized preset of the backboard with pocket or shelf grid — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside380 × 30 × 620 mm
Outside383.2 × 33.2 × 623.2 mm
Flat blank380 × 1055.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-BACKBOARD-POCKET-GRID-01
- Inside size
- Board width 380 · Holder depth 30 · Board height 620 mm
- Size range
- Board width 150–1200 · Holder depth 15–200 · Board height 200–1800 mm
- Manufacturing
- 381.6 × 31.6 × 621.6 mm score to score · inside vs outside sizes
- Parts
- 7 parts — Backboard, Pocket 1, Pocket 2, Pocket 3, Pocket 4, Pocket 5, Pocket 6
- Board area
- 0.597 m²
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KB-fluteSBS 350FBB 400SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-BACKBOARD-POCKET-GRID-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BackboardBackboard | 380 × 620 | L × H |
| FootBackboard | 380 × 155 | L × – |
| Rear braceBackboard | 380 × 280.3 | L × – |
| Pocket bottomPocket 1 | 160 × 41.2 | – |
| Pocket frontPocket 1 | 160 × 108.1 | – |
| Side gusset ×2Pocket 1 | 108.1 × 30 | – × W |
| Glue flap ×2Pocket 1 | 20 × 103.9 | – |
| Pocket bottomPocket 2 | 160 × 41.2 | – |
| Pocket frontPocket 2 | 160 × 108.1 | – |
| Side gusset ×2Pocket 2 | 108.1 × 30 | – × W |
| Glue flap ×2Pocket 2 | 20 × 103.9 | – |
| Pocket bottomPocket 3 | 160 × 41.2 | – |
| Pocket frontPocket 3 | 160 × 108.1 | – |
| Side gusset ×2Pocket 3 | 108.1 × 30 | – × W |
| Glue flap ×2Pocket 3 | 20 × 103.9 | – |
| Pocket bottomPocket 4 | 160 × 41.2 | – |
11 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Holders2 options
- Rowscount
- Columnscount
- Gap between holdersmm
- Pocket front / shelf lipmm
- Shelf gusset heightmm
