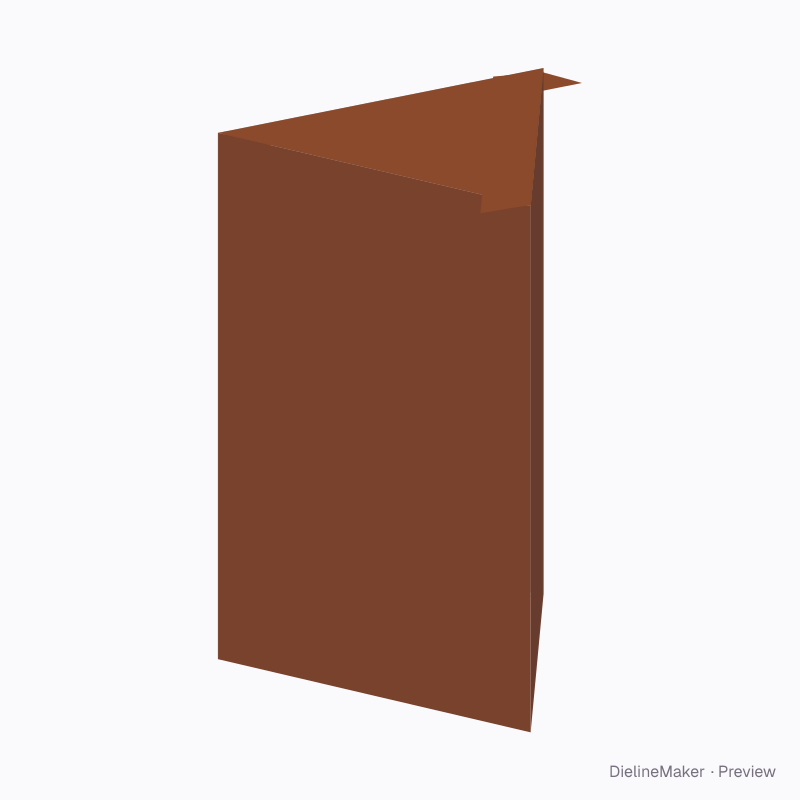

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-POLYGON-TEAR-CAP-01Shapes
Triangular carton with tear-strip cap dieline
A 3–8 sided tube carton: tuck-tab cap or glued cap with a tear strip on top, pinwheel snap bottom or tuck base below. A ready-sized preset of the polygon carton with snap bottom or tear-strip cap — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 60 × 160 mm
OutsideØ 60.9 × 160.9 mm
Flat blank325.8 × 282.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-POLYGON-TEAR-CAP-01
- Inside size
- Across flats 60 · Height 160 mm
- Size range
- Across flats 30–300 · Height 30–400 mm
- Manufacturing
- Ø 60.5 × 160.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.064 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- SBS 350FBB 400Kraft 350SBS 300SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Perforation
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-POLYGON-TEAR-CAP-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Wall ×3 | 103.9 × 160 | – × H |
| Tear-strip cap | 103.9 × 90 | – |
| Snap flap ×3 | 103.9 × 32.4 | – |
| Glue flap ×2 | 99.9 × 14 | – |
| Glue flap | 14 × 156 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Sidescount
- Top2 options
- Bottom2 options
- Tuck tab depthmm
- Tear strip widthmm
The polygon carton with snap bottom or tear-strip cap family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this triangular carton with tear-strip cap yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
