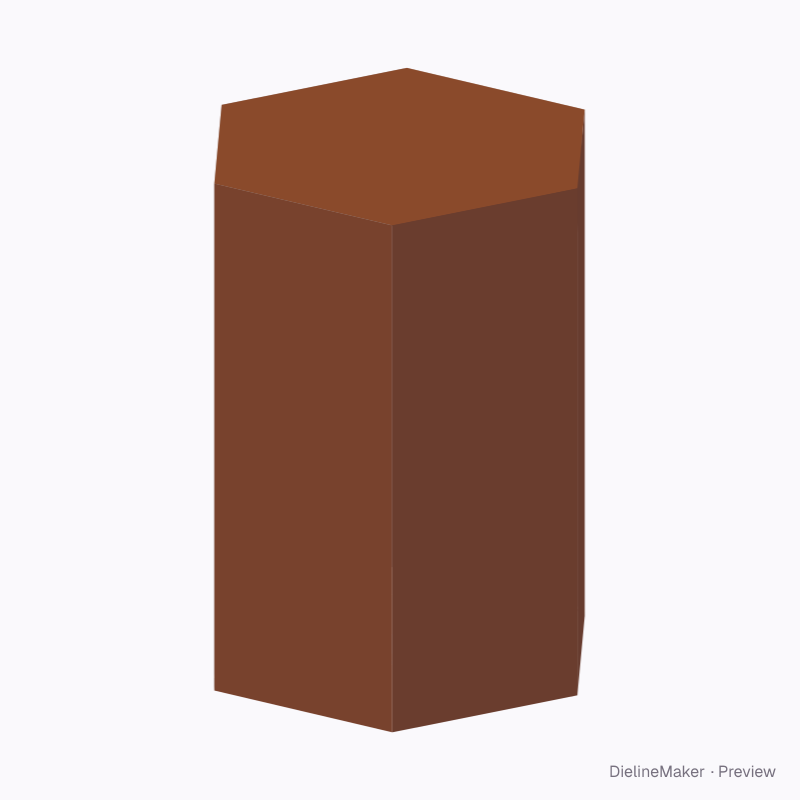

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-POLYGON-CLOSURE-CARTON-01Shapes
Polygon carton with snap bottom or tear-strip cap dieline
A 3–8 sided tube carton: tuck-tab cap or glued cap with a tear strip on top, pinwheel snap bottom or tuck base below. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 80 × 120 mm
OutsideØ 81 × 121 mm
Flat blank325 × 259.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-POLYGON-CLOSURE-CARTON-01
- Inside size
- Across flats 80 · Height 120 mm
- Size range
- Across flats 30–300 · Height 30–400 mm
- Manufacturing
- Ø 80.5 × 120.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.049 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350SBS 300SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-POLYGON-CLOSURE-CARTON-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Wall ×6 | 46.2 × 120 | – × H |
| Cap | 46.2 × 80 | – × L |
| Snap flap ×6 | 46.2 × 43.2 | – |
| Tuck tab ×4 | 16.2 × 46.2 | – |
| Tuck tab | 46.2 × 16.2 | – |
| Glue flap | 14 × 116 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Sidescount
- Top2 options
- Bottom2 options
- Tuck tab depthmm

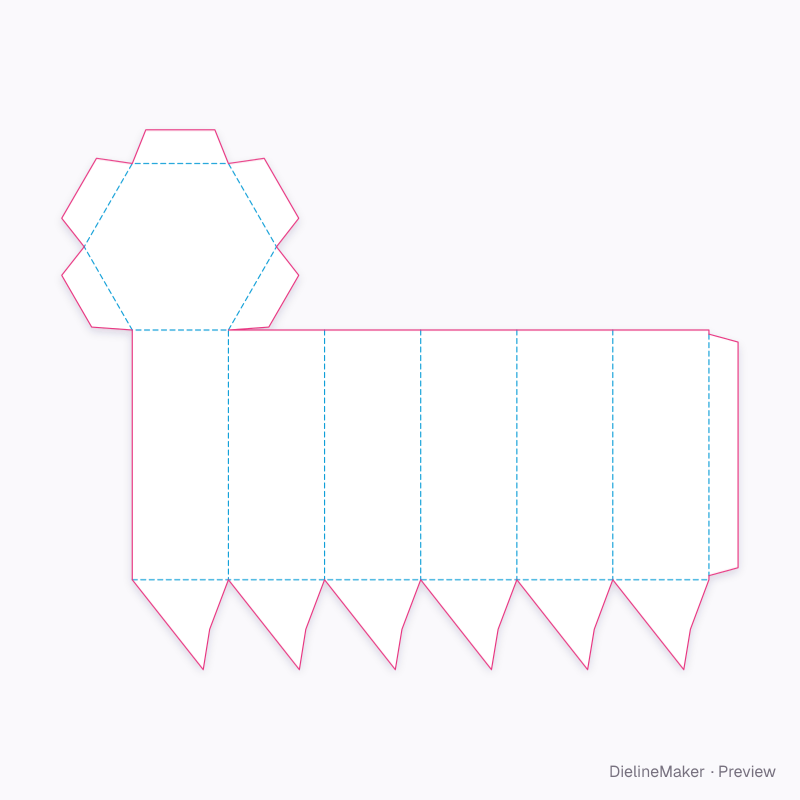

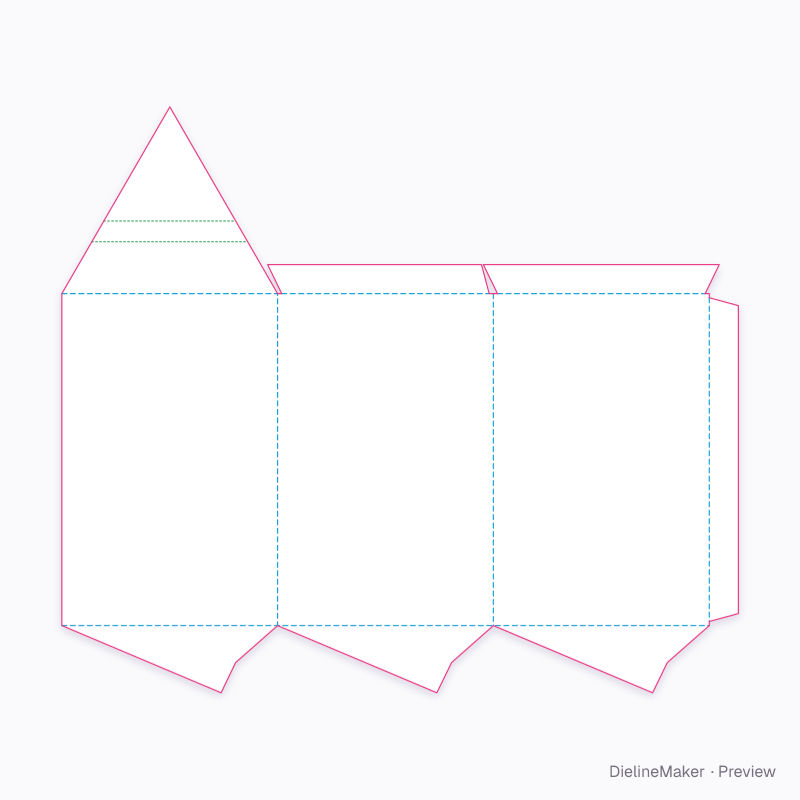

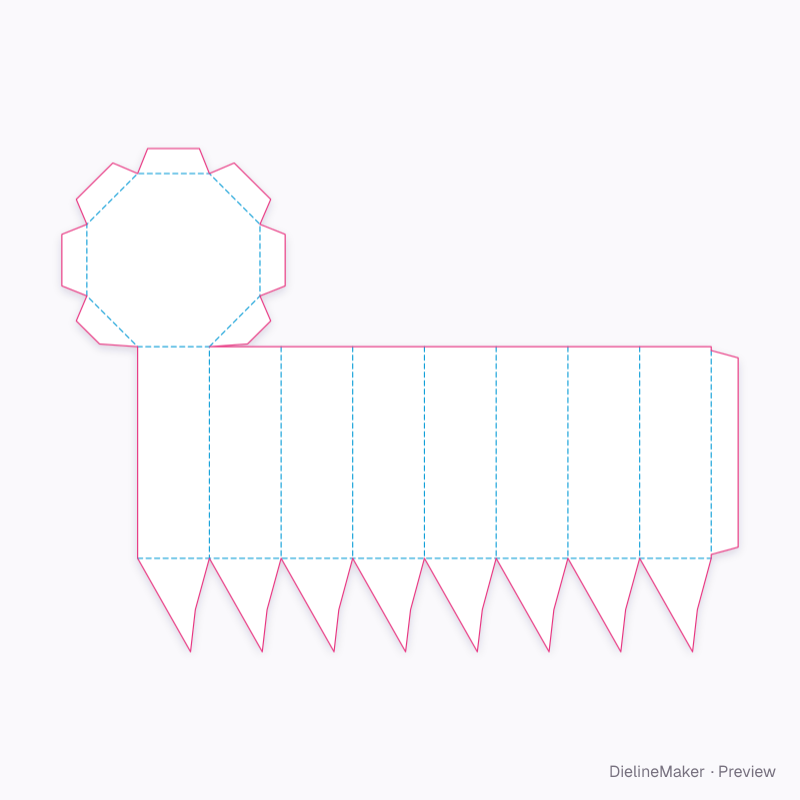

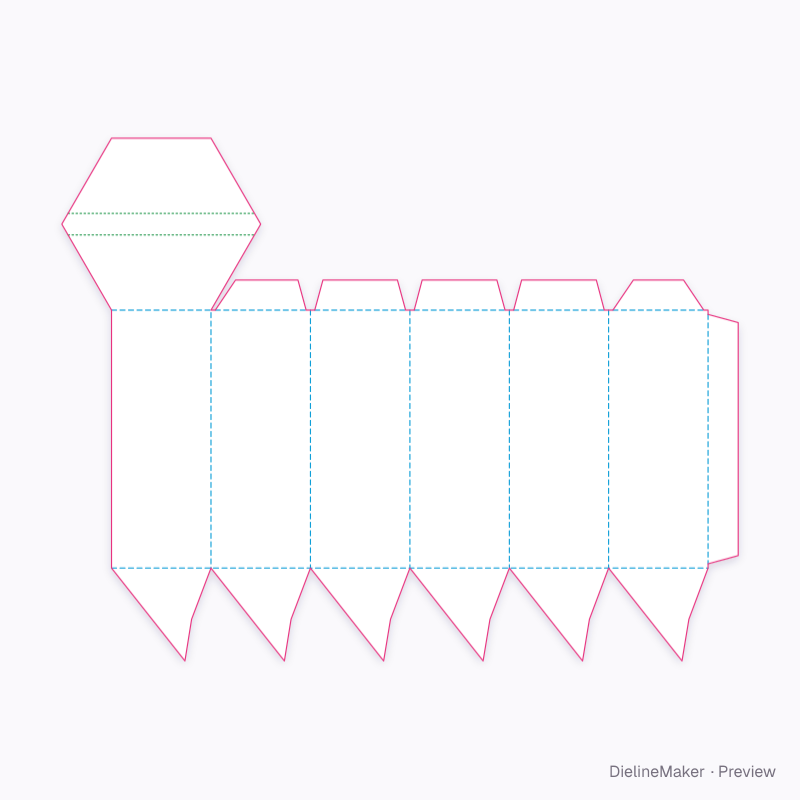

Ready-sized polygon carton with snap bottom or tear-strip cap presets
