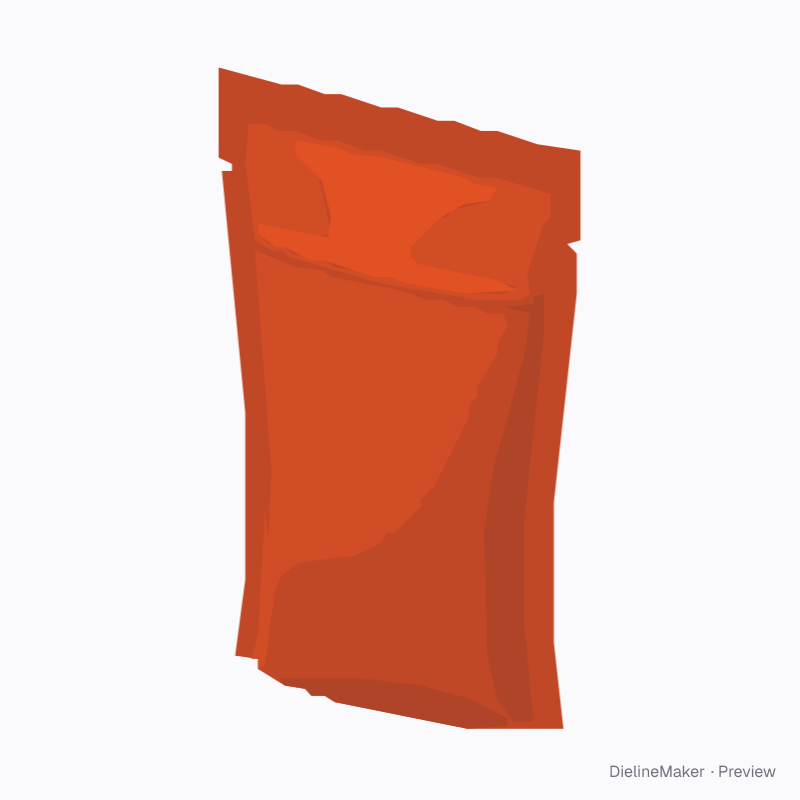

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureBags & pouches
Sample stand-up pouch dieline
80 × 120 mm starting dimensions. Adjust to your actual container or product. A ready-sized preset of the stand-up pouch — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside80 × 120 mm
Outside80 × 120 mm
Flat blank80 × 120 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 80 · Height 120 mm
- Size range
- Width 60–400 · Height 80–500 mm
- Manufacturing
- 80 × 120 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Front film, Back film, Bottom gusset
- Board area
- 0.023 m² · about 64 up on a 720 × 1020 mm sheet
- Default board
- White PET / PE laminate · 0.09 mm caliper
- Board options
- White PET/PEClear PET/PEMet PET/PEKraft/PELabel glossClear BOPPKraft 350Paper 170
- Good for

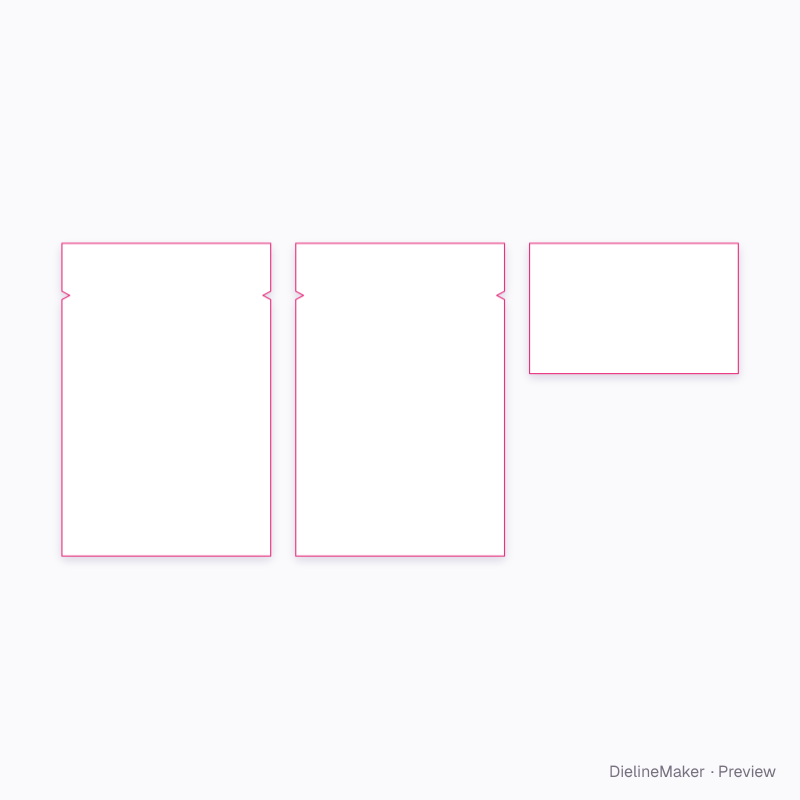

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 12 options; the template and 3D preview follow each change.
- Bottom construction3 options
- Gusset half-web (G)mm
- Side sealsmm
- Top sealmm
- Bottom seal at centremm
- Zipperon / off
- Zipper from topmm
- Tear notcheson / off
- Notch from topmm
- Hang / carry hole7 options
- Fill%
- Metallised filmon / off
The stand-up pouch family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this sample stand-up pouch yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
