Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
A4 presentation folder dieline
Two pockets for A4 sheets. A ready-sized preset of the presentation folder — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside220 × 310 mm
Outside220 × 310 mm
Flat blank464 × 410 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 220 · Height 310 mm
- Size range
- Width 120–400 · Height 150–450 mm
- Manufacturing
- 220 × 310 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.182 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400SBS 300Kraft 350Black 350GD2 350SBS 18 pt
- Good for

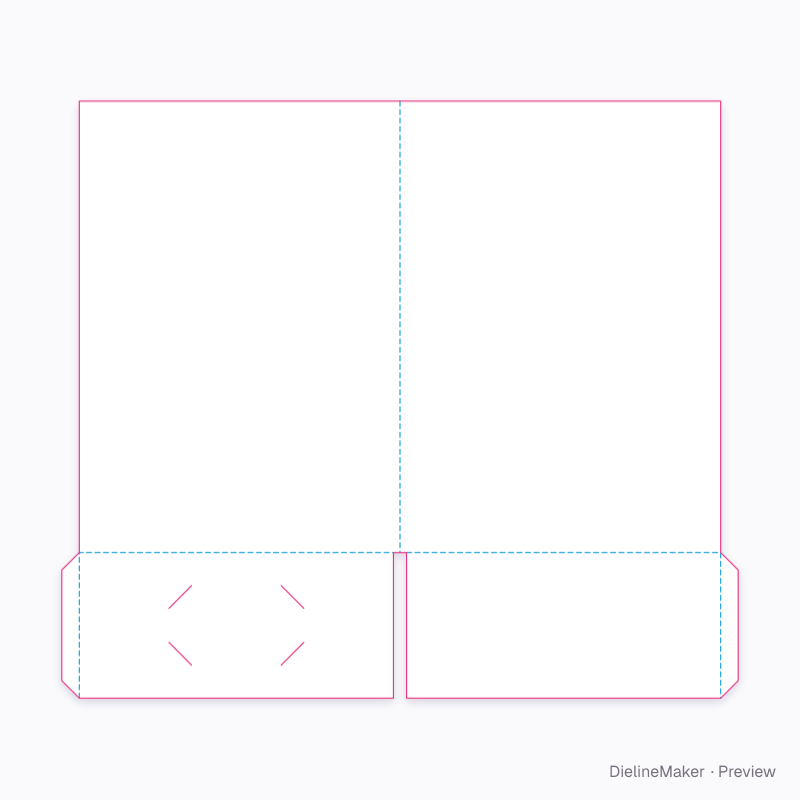

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front cover | 220 × 310 | W × H |
| Back cover | 220 × 310 | W × H |
| Right pocket | 215.5 × 100 | – |
| Glue tab ×2 | 12 × 100 | – |
| Left pocket | 215.5 × 100 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 9 options; the template and 3D preview follow each change.
- Pockets4 options
- Pocket depthmm
- Pocket capacity gussetmm
- Pocket shape3 options
- Capacity spinemm
- Business card slitson / off
- Cover lock4 options
- Hanging tab3 options
- Lock flap depthmm
The presentation folder family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this a4 presentation folder yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
