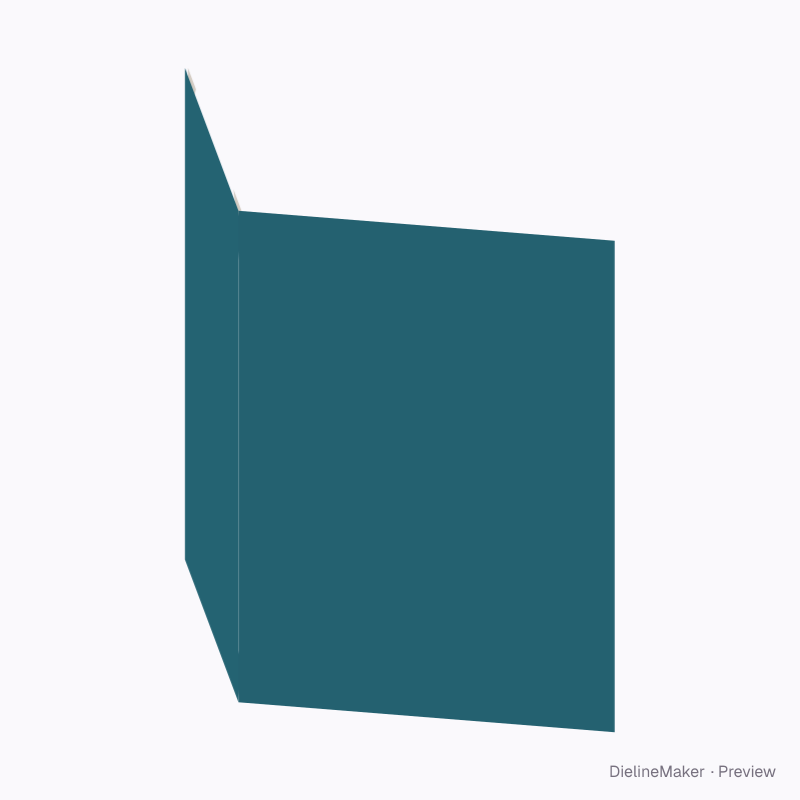

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
Certificate folder dieline
A4 certificate holder with corner retainers on the right page. A ready-sized preset of the presentation folder — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside225 × 310 mm
Outside225 × 310 mm
Flat blank458 × 377.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 225 · Height 310 mm
- Size range
- Width 120–400 · Height 150–450 mm
- Manufacturing
- 225 × 310 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Presentation folder, Removable menu card
- Board area
- 0.210 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- SBS 350FBB 400SBS 300Kraft 350Black 350GD2 350SBS 18 pt
- Good for

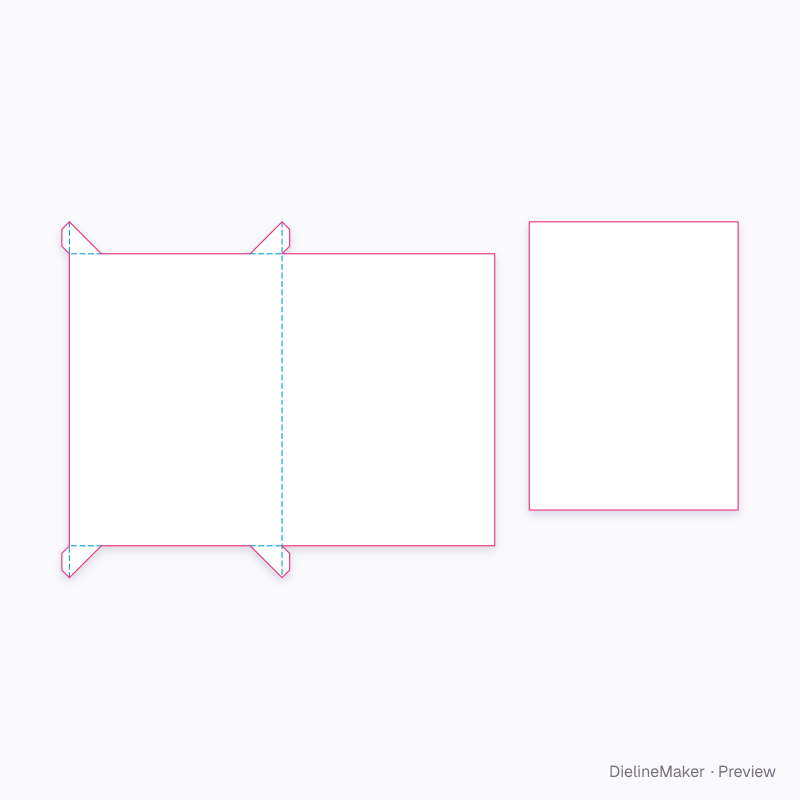

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.6 mm for Folding boxboard 400 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front coverPresentation folder | 225 × 310 | W × H |
| Back coverPresentation folder | 225 × 310 | W × H |
| Corner retainer ×4Presentation folder | 33.8 × 33.8 | – |
| Glue tab ×4Presentation folder | 8 × 33.8 | – |
| Menu cardRemovable menu card | 221 × 306 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 12 options; the template and 3D preview follow each change.
- Pockets4 options
- Corner retainer sizemm
- Cover finish2 options
- Retainer pages2 options
- Pocket depthmm
- Pocket capacity gussetmm
- Pocket shape3 options
- Capacity spinemm
- Business card slitson / off
- Cover lock4 options
- Hanging tab3 options
- Lock flap depthmm
The presentation folder family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this certificate folder yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
