ECMA F80.03.00.00Trays & lids
Platform on four side panels with fringe hole 105×105×45 dieline
Square raised inlay whose fringed round hole grips a jar, candle or bottle. A ready-sized preset of the raised inlay platform — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside105 × 105 × 45 mm
Outside105.6 × 105.6 × 45.6 mm
Flat blank195 × 195 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F80.03.00.00
- Inside size
- Platform length (A) 105 · Platform width (B) 105 · Height (side panels) 45 mm
- Size range
- Platform length (A) 40–600 · Platform width (B) 30–500 · Height (side panels) 10–300 mm
- Manufacturing
- 105 × 105 × 45 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.030 m² · about 15 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- SBS 350Kraft 350FBB 400GD2 350F-fluteE-flute KE-flute WSBS 18 pt
- Good for

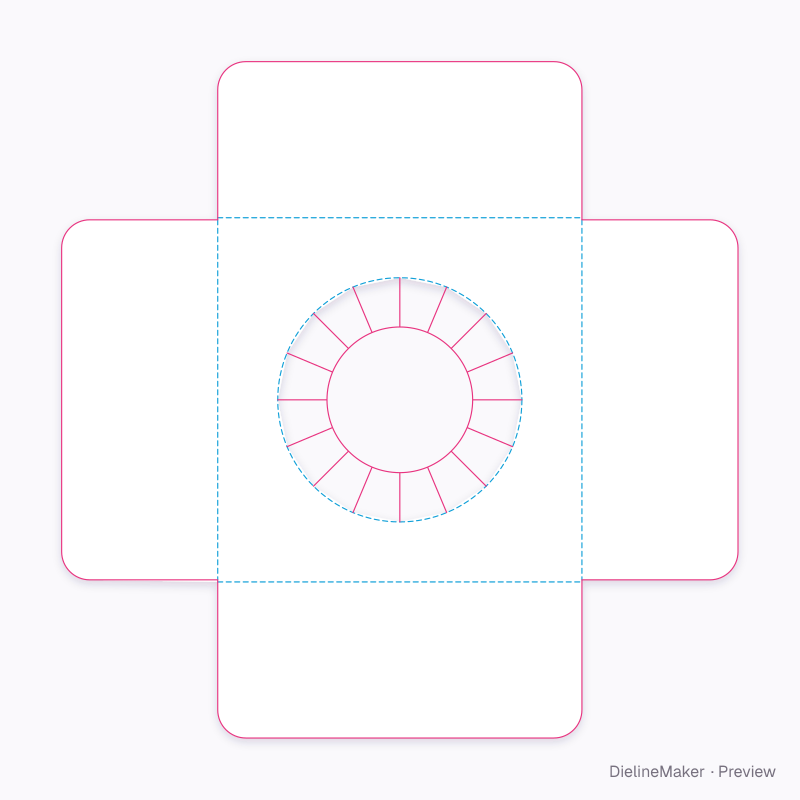

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F80.03.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.6 mm for Folding boxboard 400 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Platform | 105 × 105 | – |
| Side panel ×2 | 105 × 45 | – × H |
| Side panel ×2 | 45 × 103.8 | H × – |
| Fringe tab ×8 | 13.9 × 13.7 | – |
| Fringe tab ×8 | 13.7 × 13.9 | – |
