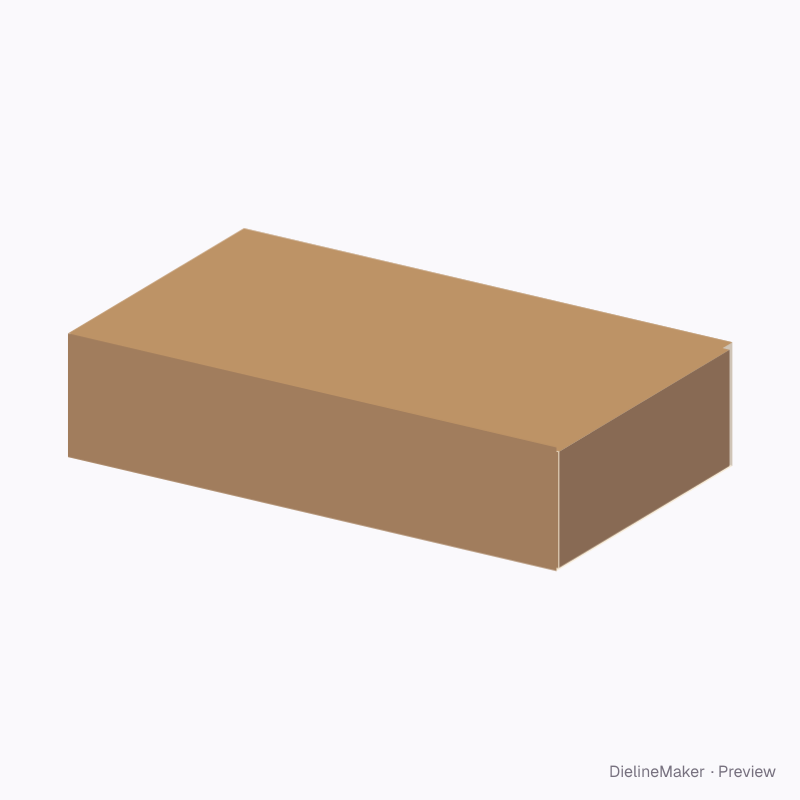

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F20.51.00.00Trays & lids
Slide carton (tray in tube) dieline
A tray that slides in a group-A tube: unjoined walls with two dust flaps, hollow buffer walls with curved end covers, or an open channel with a raised platform. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside160 × 90 × 35 mm
Outside161 × 93 × 37.8 mm
Flat blank160.5 × 271.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F20.51.00.00
- Inside size
- Length (slide) 160 · Width 90 · Height 35 mm
- Size range
- Length (slide) 40–500 · Width 25–300 · Height 10–200 mm
- Manufacturing
- 160.5 × 90.5 × 35 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Tray, Tube
- Board area
- 0.081 m² · about 12 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350SBS 300E-flute WSBS 18 pt
- Good for

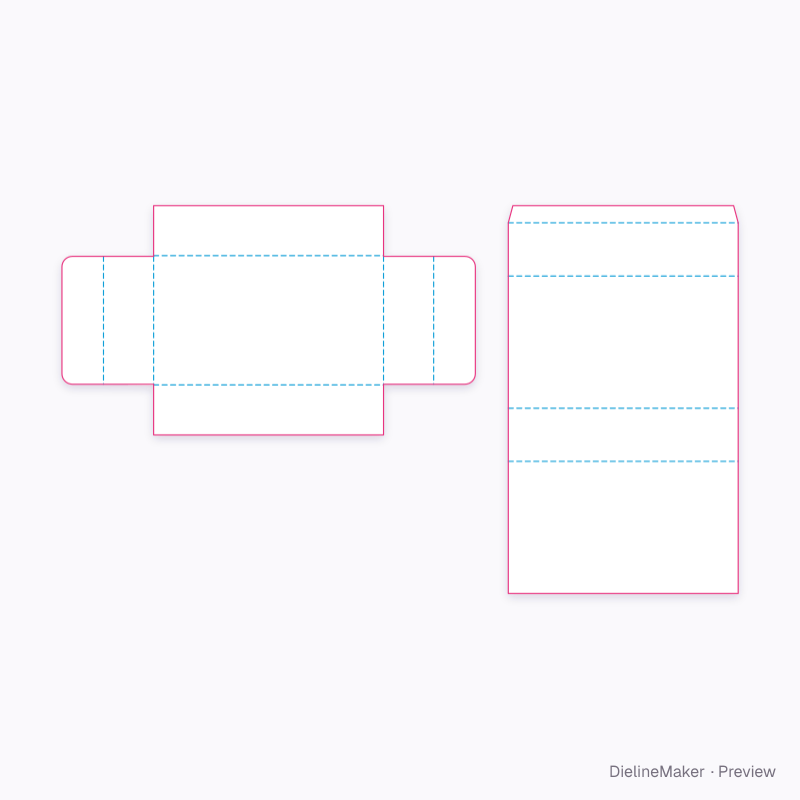

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F20.51.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Pose rigTray | 88.3 × 100 | – |
| BaseTray | 248.8 × 100 | – |
| Front wallTray | 160.5 × 35 | L + T × H |
| Back wallTray | 160.5 × 35 | L + T × H |
| Left end wallTray | 35 × 89.5 | H × W − T |
| Dust flap ×2Tray | 29 × 89.5 | – × W − T |
| Right end wallTray | 35 × 89.5 | H × W − T |
| Tube bottomTube | 160.5 × 92.5 | L + T × – |
| Tube frontTube | 160.5 × 37.3 | L + T × – |
| Tube backTube | 160.5 × 37.3 | L + T × – |
| Tube topTube | 160.5 × 92.5 | L + T × – |
| Glue flapTube | 160.5 × 12 | L + T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Construction3 options
- Tube3 options
- Dust flap depthmm
Ready-sized slide carton (tray in tube) presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset

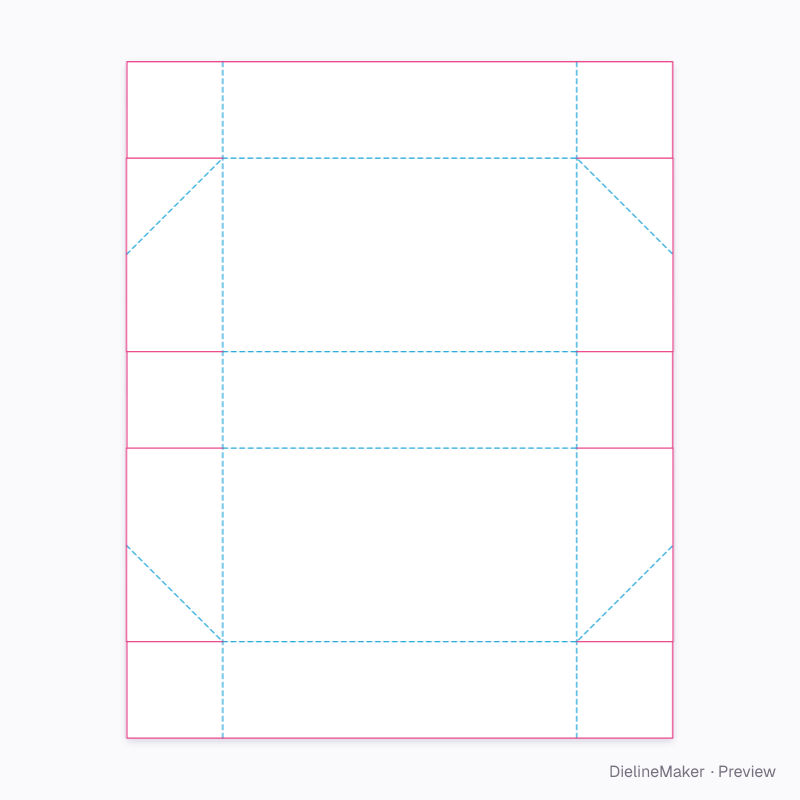

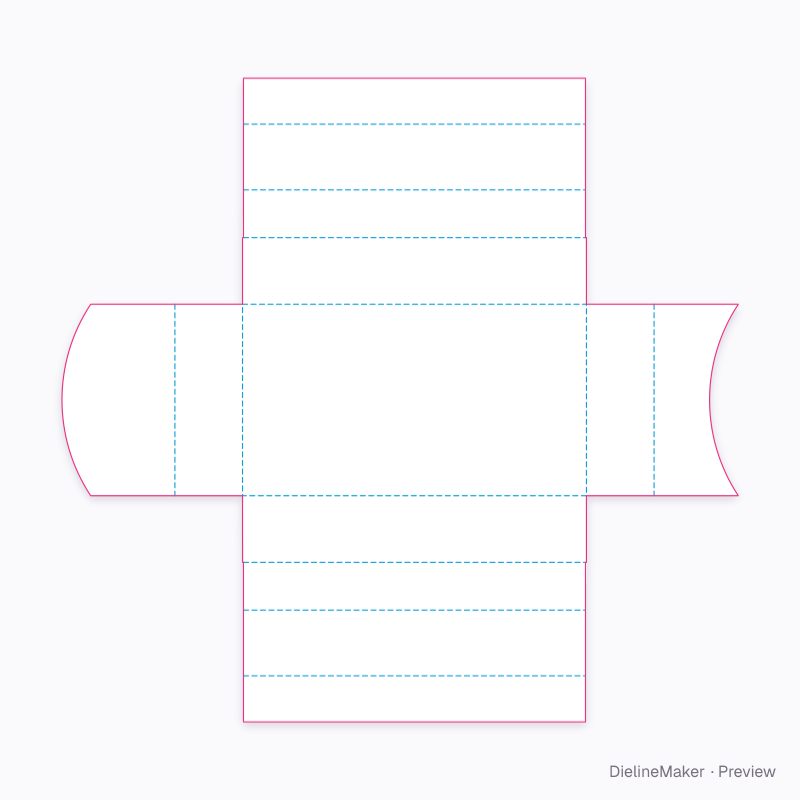

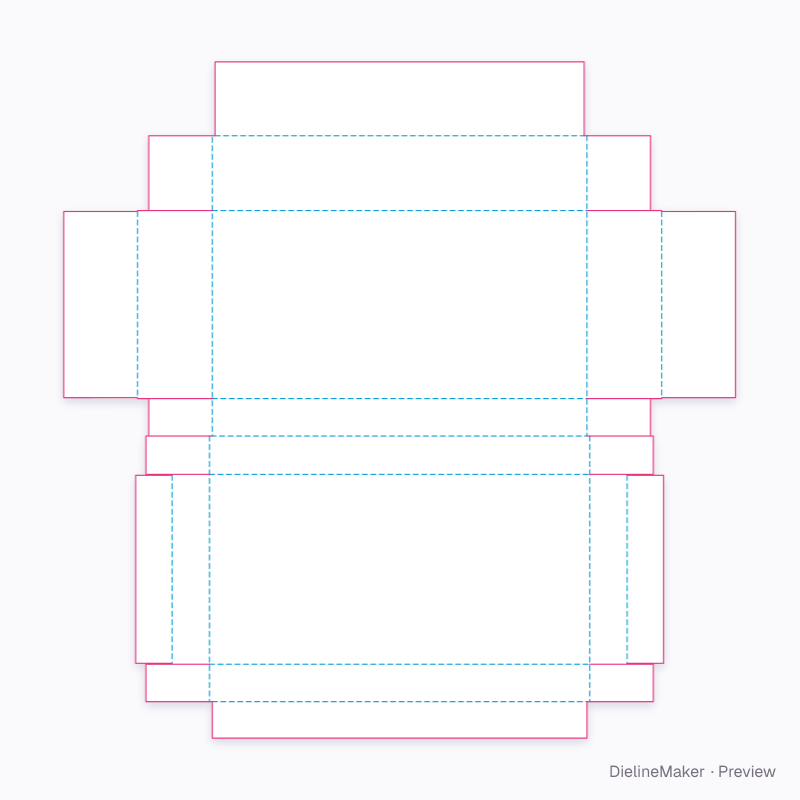

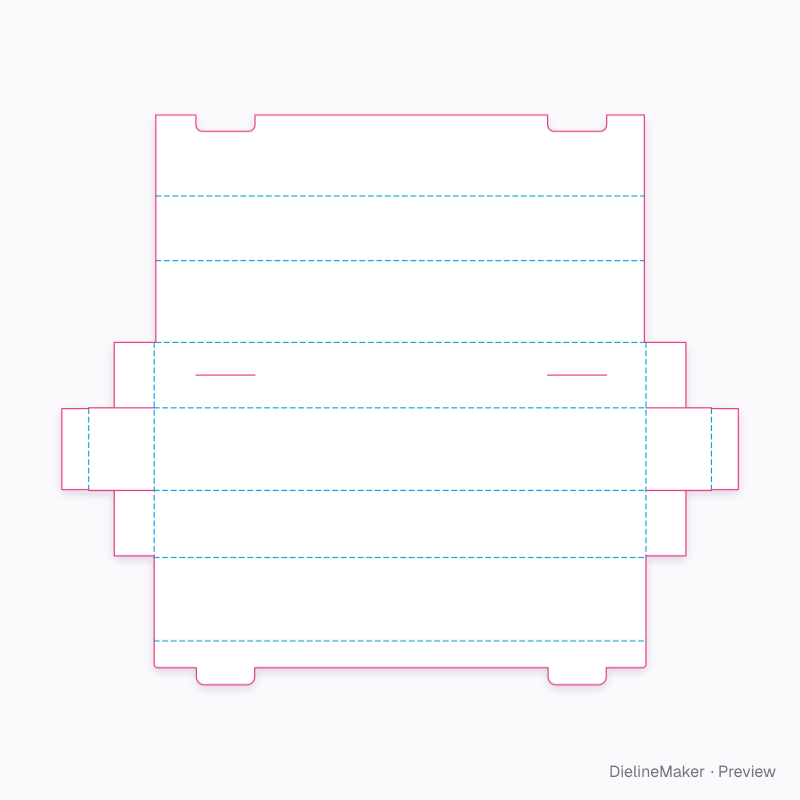

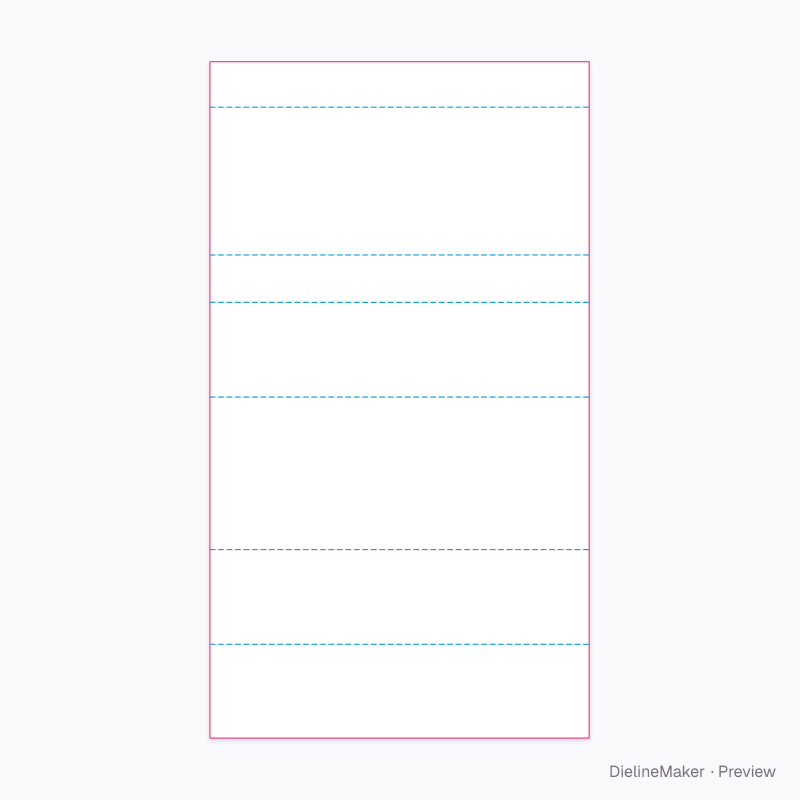

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this slide carton (tray in tube) yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
