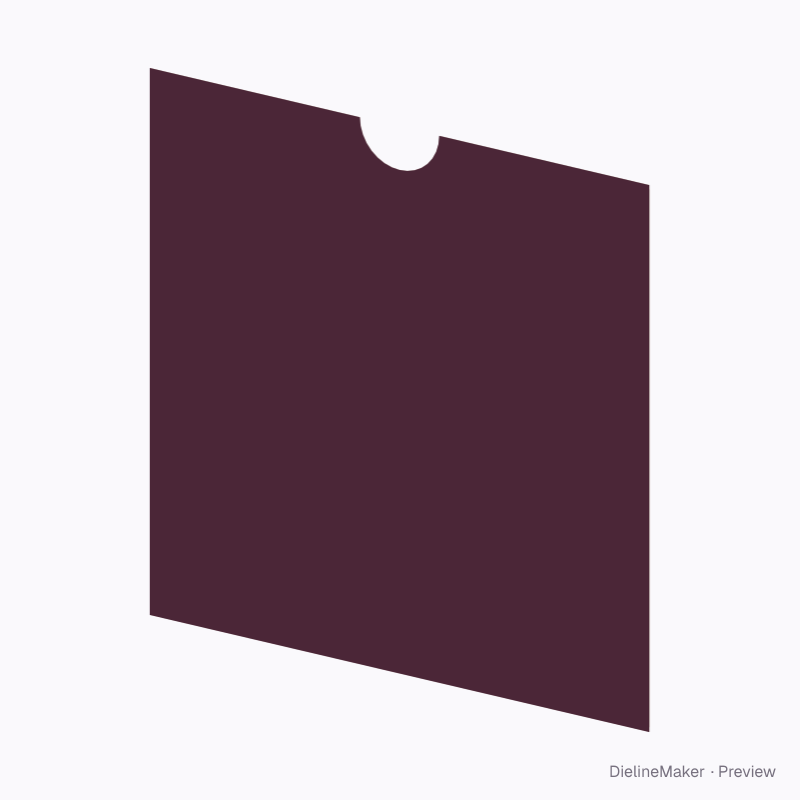

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-RECSLEEVE-DIE-01Sleeves
10-inch square inner sleeve dieline
The flat production die for a paper record inner sleeve: front and back on a bottom fold, glued side flaps, thumb cut, optional round bottom, cut corners and centre hole. A ready-sized preset of the paper record inner sleeve (die) — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside252 × 252 mm
Outside252 × 252 mm
Flat blank276 × 504 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-RECSLEEVE-DIE-01
- Inside size
- Sleeve width 252 · Sleeve height 252 mm
- Size range
- Sleeve width 100–340 · Sleeve height 100–340 mm
- Manufacturing
- 252 × 252 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.132 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300Kraft 350SBS 18 pt
- Good for

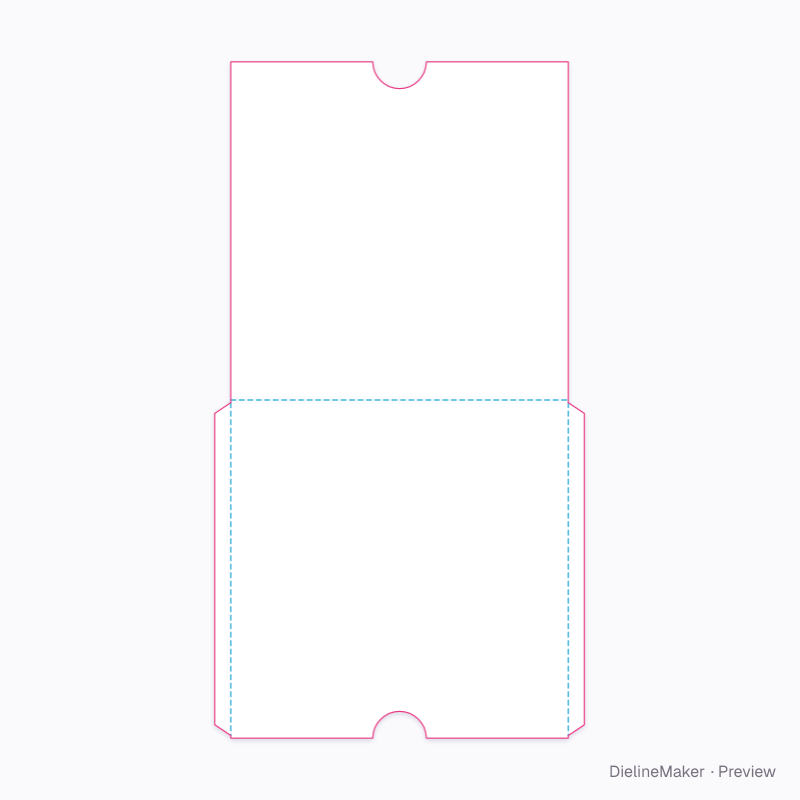

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Bottom corners3 options
- Corner sizemm
- Centre hole diametermm
- Thumb cut radiusmm

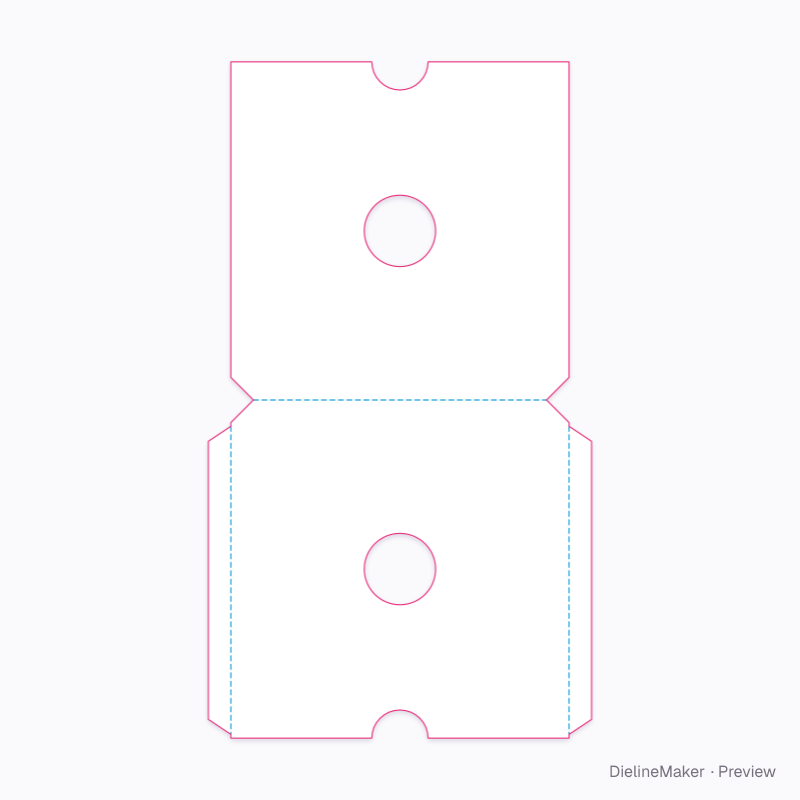

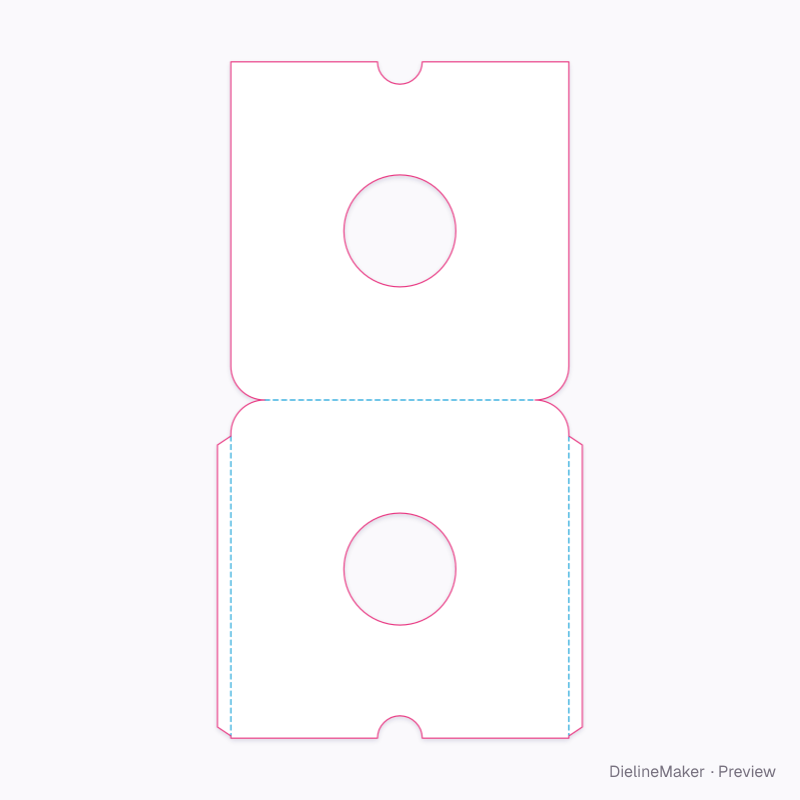

The paper record inner sleeve (die) family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this 10-inch square inner sleeve yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
