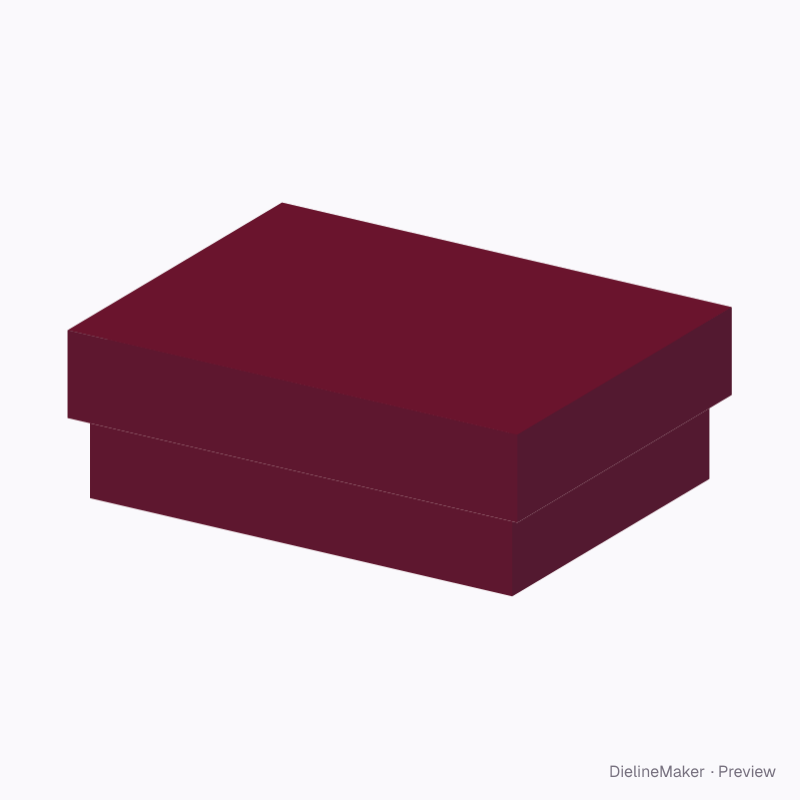

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureRigid
75 × 55 earring gift box — Rigid lid & base box dieline
Editable 75 × 55 × 25 mm starting point using rigid lid & base box. Adjust the dimensions to your product before prototyping. A ready-sized preset of the rigid lid & base box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside75 × 55 × 25 mm
Outside83 × 63 × 29 mm
Flat blank167.8 × 147.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 75 · Width 55 · Height 25 mm
- Size range
- Length 30–500 · Width 30–400 · Height 15–300 mm
- Manufacturing
- 79 × 59 × 27 mm score to score · inside vs outside sizes
- Parts
- 4 parts — Base wrap, Lid wrap, Base board, Lid board
- Board area
- 0.054 m² · about 25 up on a 720 × 1020 mm sheet
- Default board
- Rigid greyboard 2 mm · 2 mm caliper
- Board options
- Rigid 2 mmRigid 1.5
- Good for

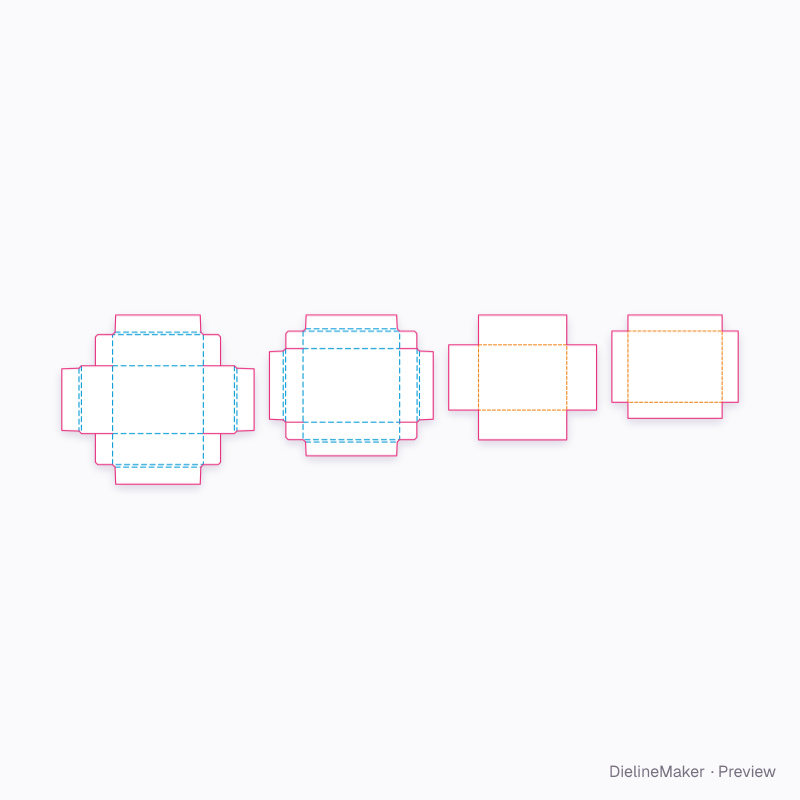

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Kiss cut
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (2 mm for Rigid greyboard 2 mm). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BottomBase wrap | 79.2 × 59.2 | L + 2Tb + p × W + 2Tb + p |
| Front wallBase wrap | 79.2 × 27.2 | – × H + Tb + p |
| Front rimBase wrap | 79.2 × 2.2 | – |
| Front turn-inBase wrap | 74.8 × 15 | – |
| Corner ear ×4Base wrap | 15 × 27.2 | – |
| Back wallBase wrap | 79.2 × 27.2 | – × H + Tb + p |
| Back rimBase wrap | 79.2 × 2.2 | – |
| Back turn-inBase wrap | 74.8 × 15 | – |
| Left wallBase wrap | 27.2 × 59.2 | – × H + Tb + p |
| Left rimBase wrap | 2.2 × 59.2 | – |
| Left turn-inBase wrap | 15 × 54.8 | – |
| Right wallBase wrap | 27.2 × 59.2 | – × H + Tb + p |
| Right rimBase wrap | 2.2 × 59.2 | – |
| Right turn-inBase wrap | 15 × 54.8 | – |
| Pose rigLid wrap | 100 × 17.6 | – |
| Lid hingeLid wrap | 100 × 17.6 | – |
24 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Lid depthmm
- Ribbon slots in lidon / off
- Recessed tile in lidon / off
- Ring insert slotscount
- Ring slot lengthmm
- Ring insert heightmm
