Parametric structureBags & pouches
Flip-lid baby wipes dieline
A fin-seal film pack with a true dispensing aperture and a rigid hinged dispensing lid. Exports contain the film web and lid label; the moulded closure and weld dimensions need the closure supplier’s validation. A ready-sized preset of the rigid-lid wet-wipes pack — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 95 × 55 mm
Outside180 × 95 × 55 mm
Flat blank255 × 323 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Wipe-stack length 180 · Wipe-stack width 95 · Stack thickness 55 mm
- Size range
- Wipe-stack length 90–320 · Wipe-stack width 55–180 · Stack thickness 8–110 mm
- Manufacturing
- 180 × 95 × 55 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Wipes pack film, Rigid closure label
- Board area
- 0.085 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- White PET / PE laminate · 0.09 mm caliper
- Board options
- White PET/PEMet PET/PE
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.09 mm for White PET / PE laminate). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Fin seal (inner)Wipes pack film | 255 × 10 | – |
| Back (upper half)Wipes pack film | 255 × 47.5 | – |
| TopWipes pack film | 255 × 56.5 | – |
| FrontWipes pack film | 255 × 95 | – × W |
| BottomWipes pack film | 255 × 56.5 | – |
| Back (lower half)Wipes pack film | 255 × 47.5 | – |
| Fin seal (outer)Wipes pack film | 255 × 10 | – |
| Closure artworkRigid closure label | 74 × 34 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Long seal widthmm
- End sealsmm
- Opening lengthmm
- Opening widthmm
- Lid colour10 options

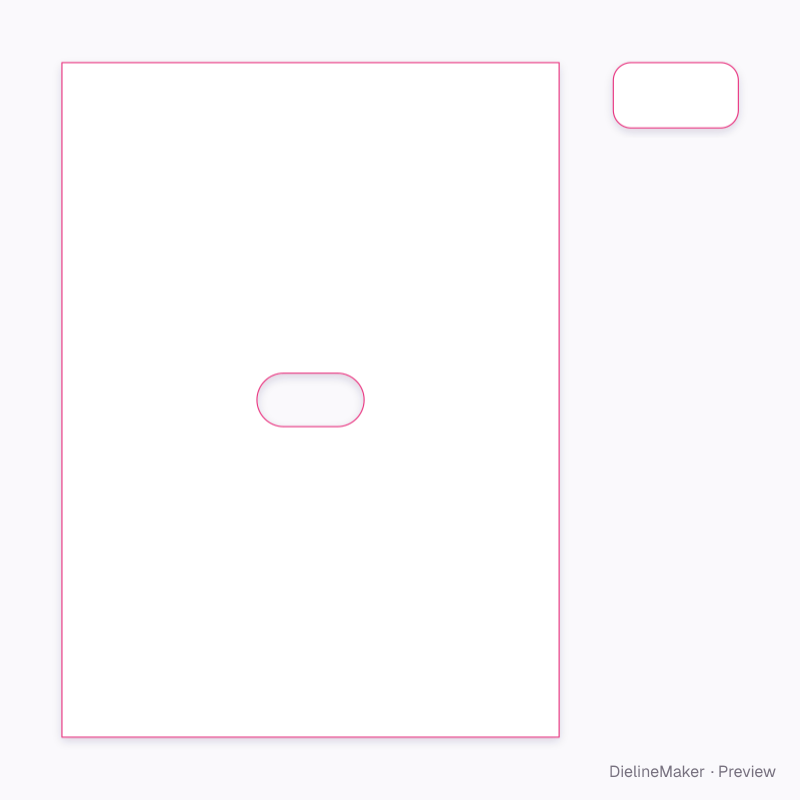

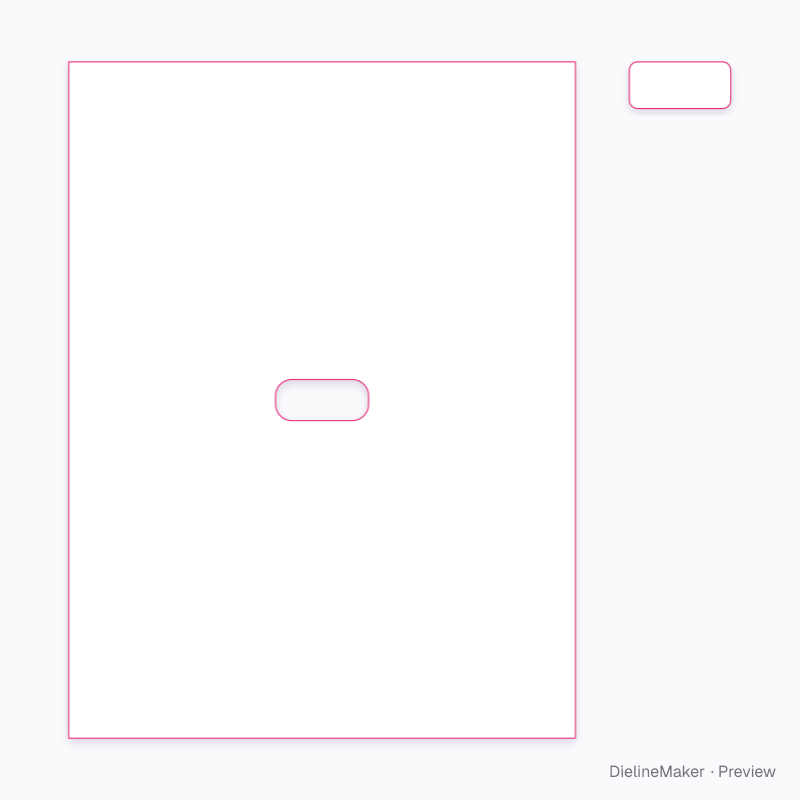

The rigid-lid wet-wipes pack family
The same structure with sizes, boards and options set for a use.

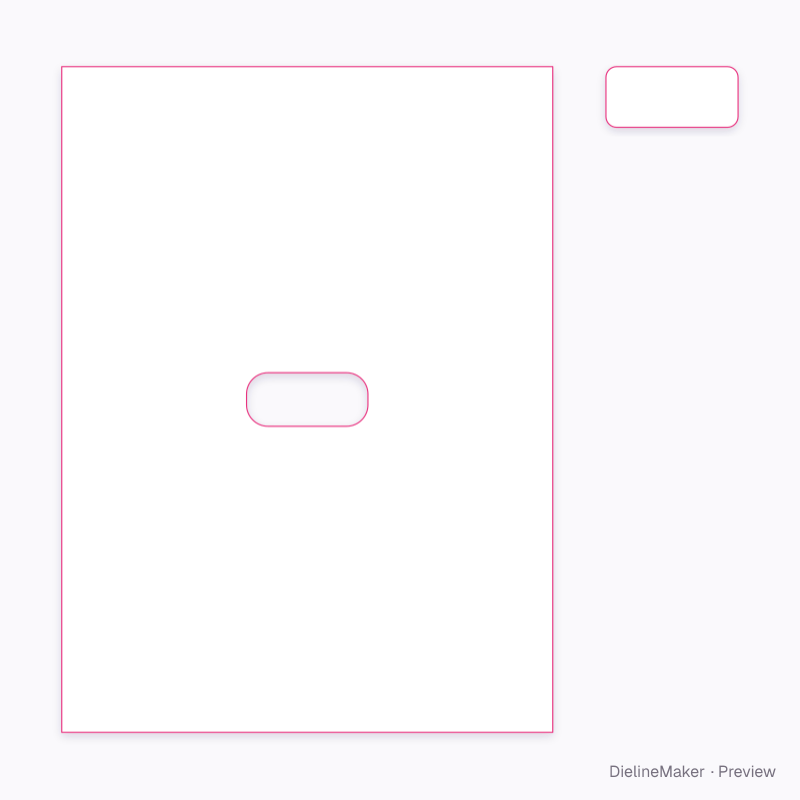

Preset

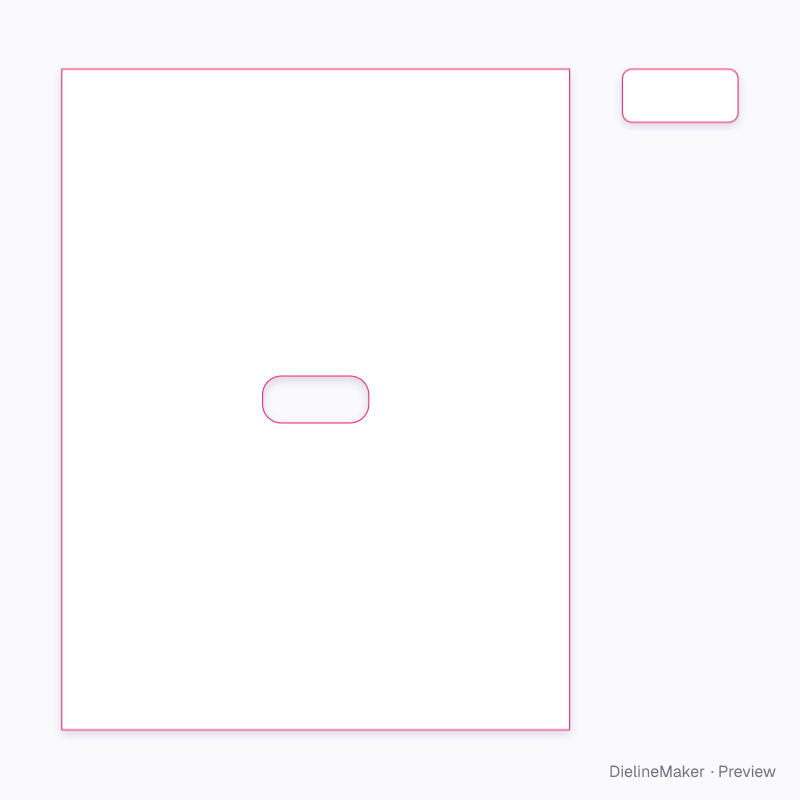

Preset

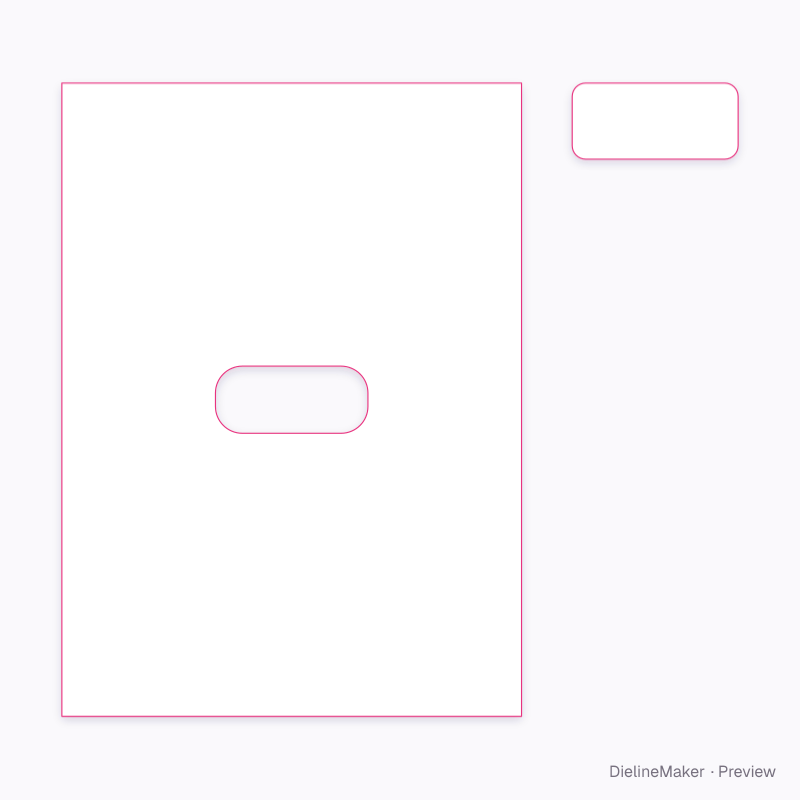

Preset

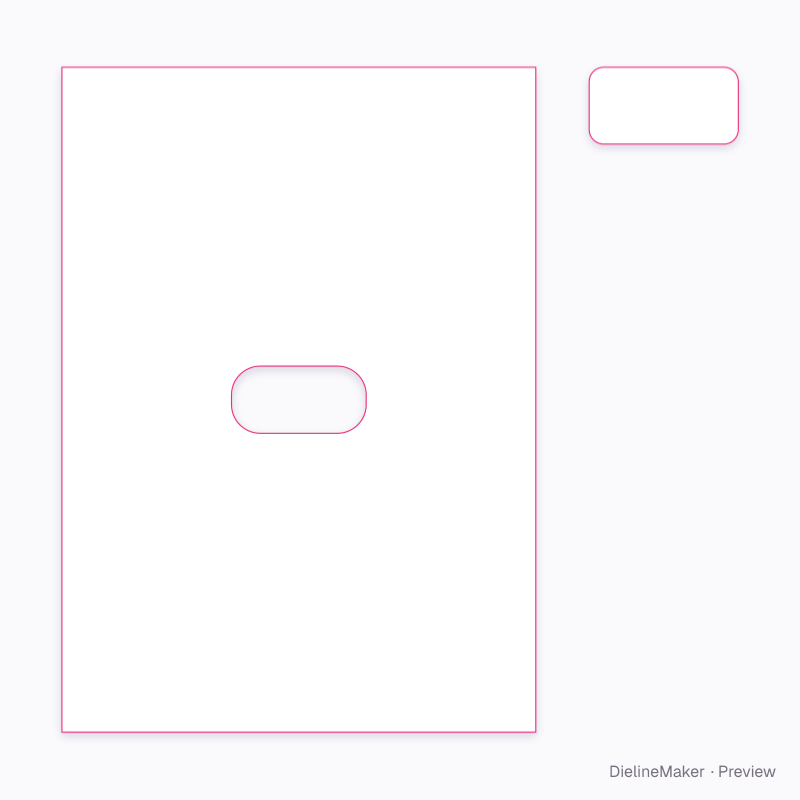

Preset

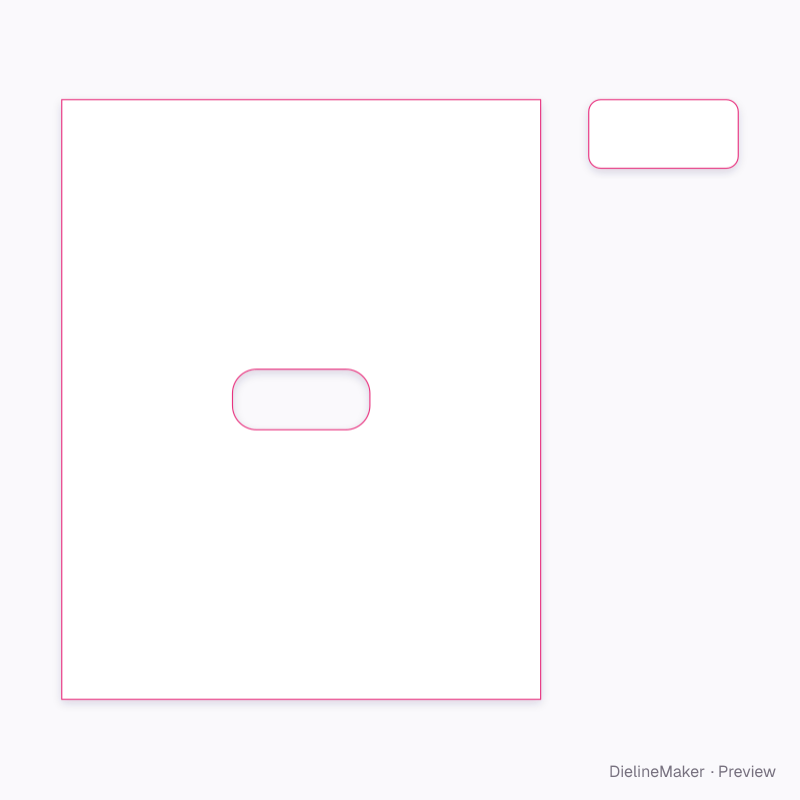

Preset

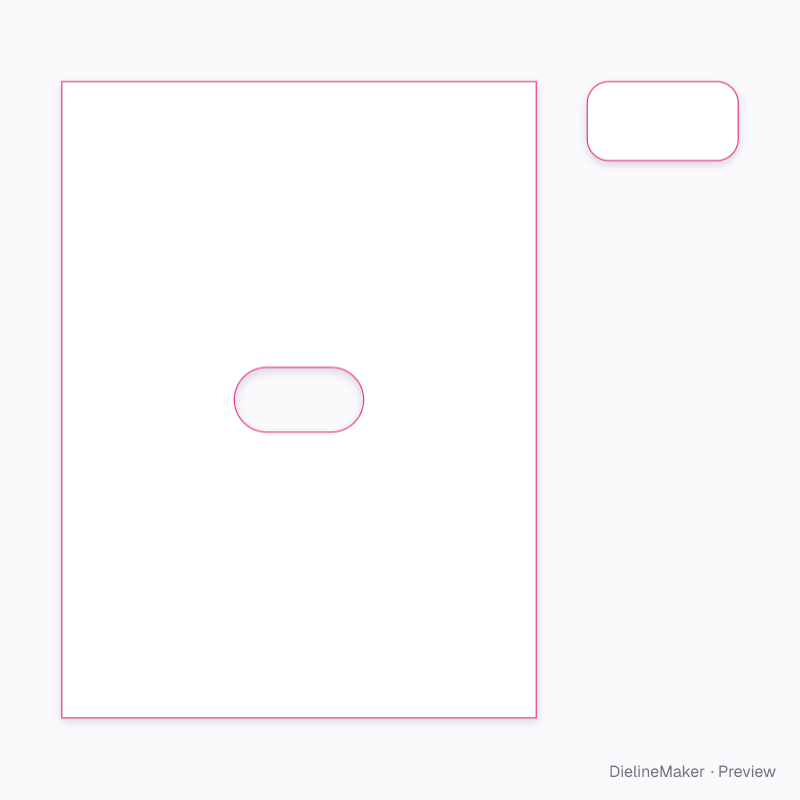

Preset

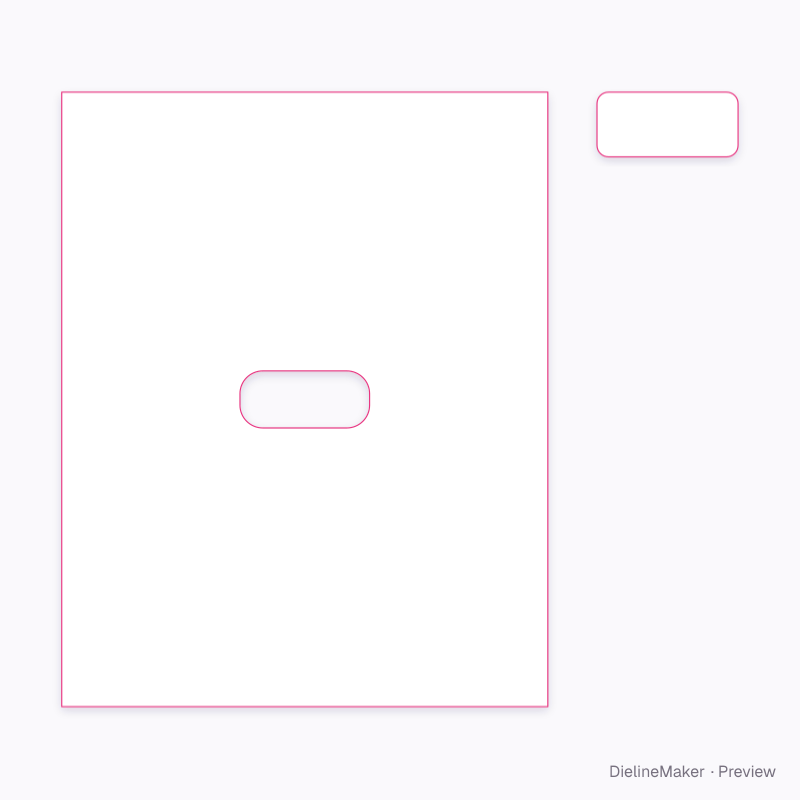

Preset

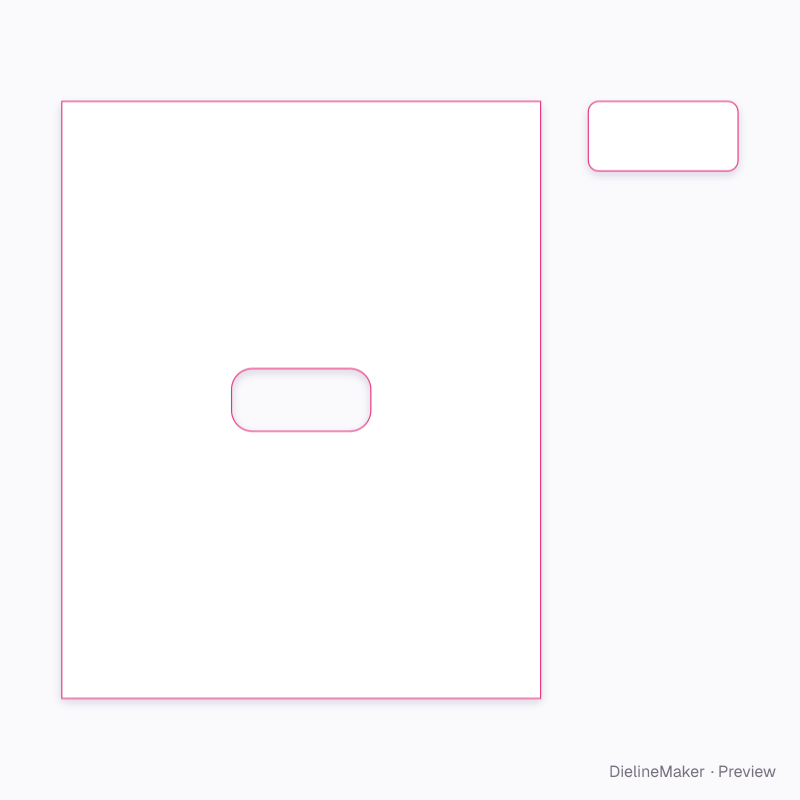

Preset
