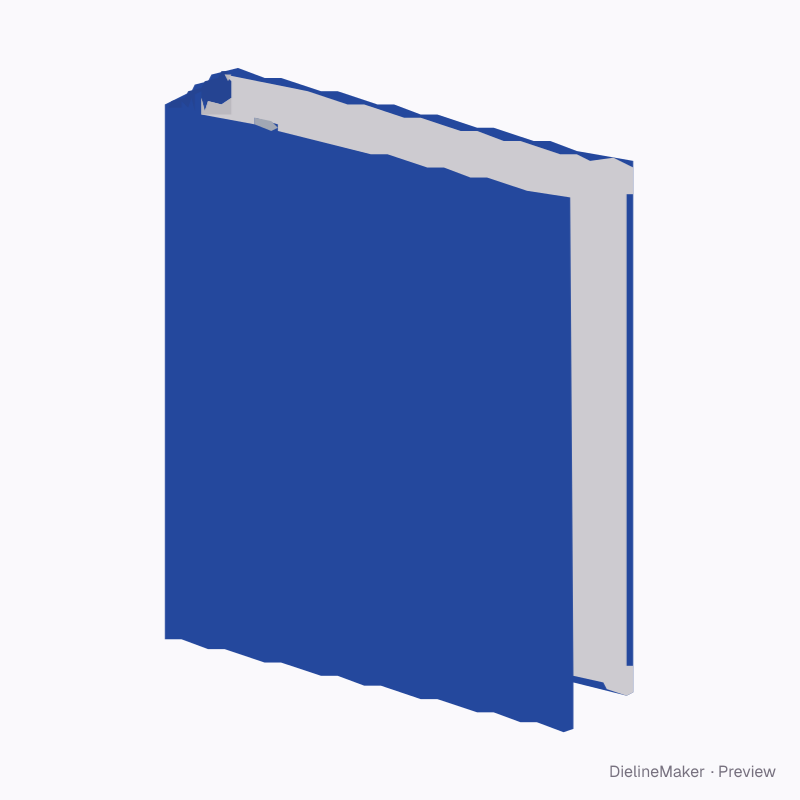

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
A4 large-capacity ring binder dieline
260 × 320 mm finished format with editable dimensions and artwork. A ready-sized preset of the rigid ring binder — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside260 × 65 × 320 mm
Outside260 × 65 × 320 mm
Flat blank635 × 356 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Cover board width 260 · Spine board width 65 · Cover board height 320 mm
- Size range
- Cover board width 140–330 · Spine board width 25–80 · Cover board height 190–380 mm
- Manufacturing
- 260 × 65 × 320 mm score to score · inside vs outside sizes
- Parts
- 5 parts — Outer case wrap with turn-ins, Inner paper liner, back board · cut reference, spine board · cut reference, front board · cut reference
- Board area
- 0.599 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300SBS 18 pt
- Good for
