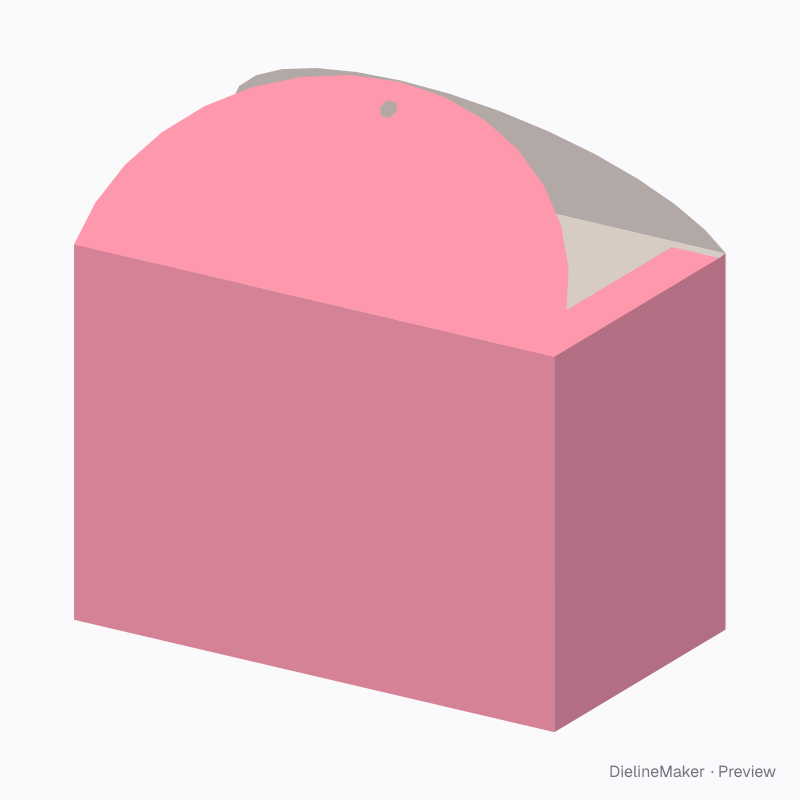

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-ROUND-FLAP-CARTON-01Tuck end
Round-flap bakery box dieline
A snap-bottom carton whose front and back rise into semicircular flaps that meet over the top and tie with a ribbon. A ready-sized preset of the carton with paired round top flaps — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside140 × 80 × 100 mm
Outside140.9 × 80.9 × 100.9 mm
Flat blank453.4 × 212.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-ROUND-FLAP-CARTON-01
- Inside size
- Length 140 · Width 80 · Height 100 mm
- Size range
- Length 40–300 · Width 25–200 · Height 30–400 mm
- Manufacturing
- 140.5 × 80.5 × 100.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.077 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- SBS 350Kraft 350FBB 400SBS 300SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-ROUND-FLAP-CARTON-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 140.5 × 100.5 | L + T × H + T |
| Left side | 80.5 × 100.5 | W + T × H + T |
| Back | 140.5 × 100.5 | L + T × H + T |
| Right side | 80 × 100.5 | W × H + T |
| Glue flap | 12 × 100.5 | – × H + T |
| Snap end | 80.5 × 26.7 | W + T × – |
| Snap end | 80 × 26.7 | W × – |
| Snap bottom | 140.5 × 52 | L + T × – |
| Snap tuck | 140.5 × 51.5 | L + T × – |
| Round flap ×2 | 140.5 × 60 | L + T × – |
| Dust flap | 80.5 × 15 | W + T × – |
| Dust flap | 80 × 15 | W × – |
