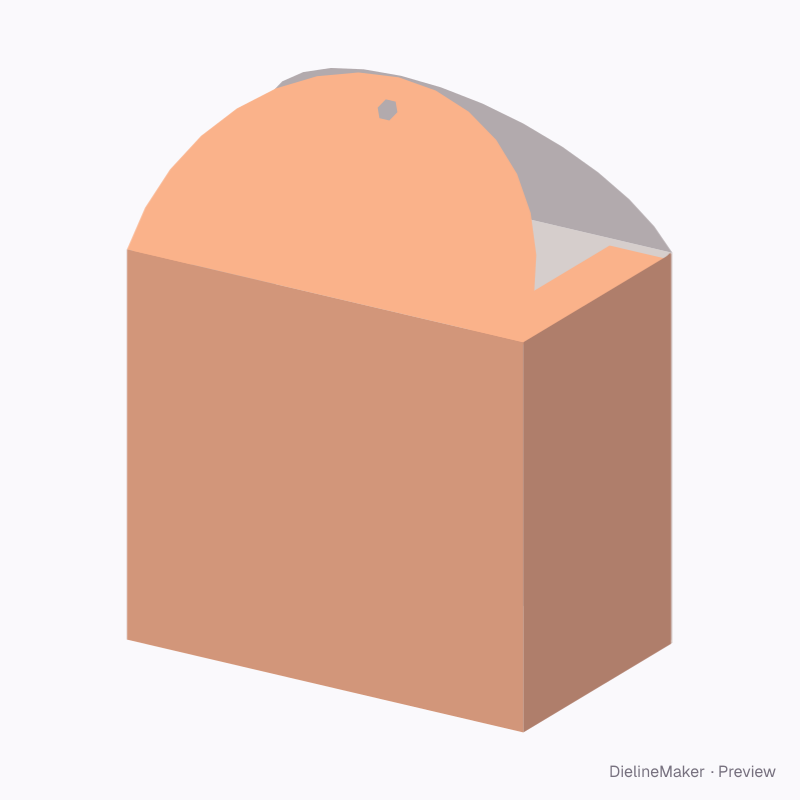

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-ROUND-FLAP-CARTON-01Tuck end
Round-flap favour box dieline
A snap-bottom carton whose front and back rise into semicircular flaps that meet over the top and tie with a ribbon. A ready-sized preset of the carton with paired round top flaps — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside100 × 60 × 90 mm
Outside101 × 61 × 91 mm
Flat blank333.5 × 179.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-ROUND-FLAP-CARTON-01
- Inside size
- Length 100 · Width 60 · Height 90 mm
- Size range
- Length 40–300 · Width 25–200 · Height 30–400 mm
- Manufacturing
- 100.5 × 60.5 × 90.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.048 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350Kraft 350FBB 400SBS 300SBS 18 pt
- Good for

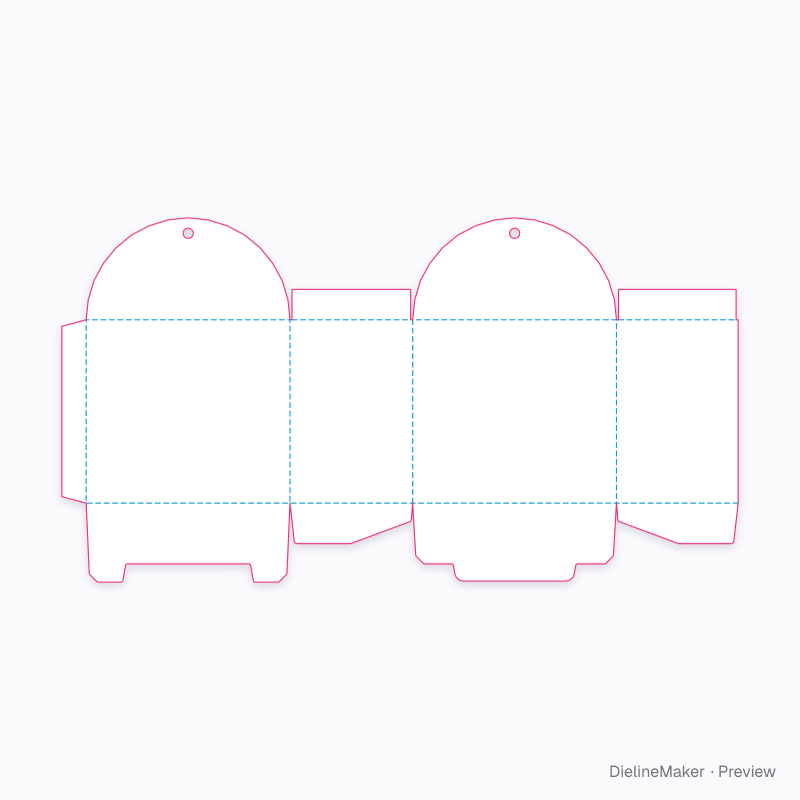

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-ROUND-FLAP-CARTON-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 100.5 × 90.5 | L + T × H + T |
| Left side | 60.5 × 90.5 | W + T × H + T |
| Back | 100.5 × 90.5 | L + T × H + T |
| Right side | 60 × 90.5 | W × H + T |
| Glue flap | 12 × 90.5 | – × H + T |
| Snap end | 60.5 × 20 | W + T × – |
| Snap end | 60 × 20 | W × – |
| Snap bottom | 100.5 × 39 | L + T × – |
| Snap tuck | 100.5 × 38.5 | L + T × – |
| Round flap ×2 | 100.5 × 50.3 | L + T × – |
| Dust flap | 60.5 × 15 | W + T × – |
| Dust flap | 60 × 15 | W × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Flap heightmm
- Loop handleson / off

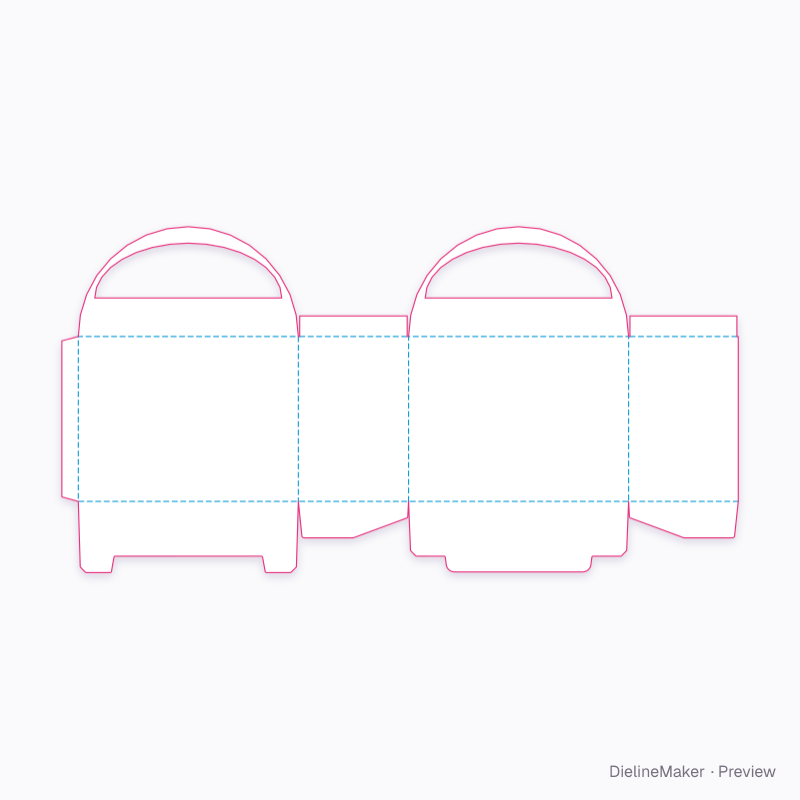

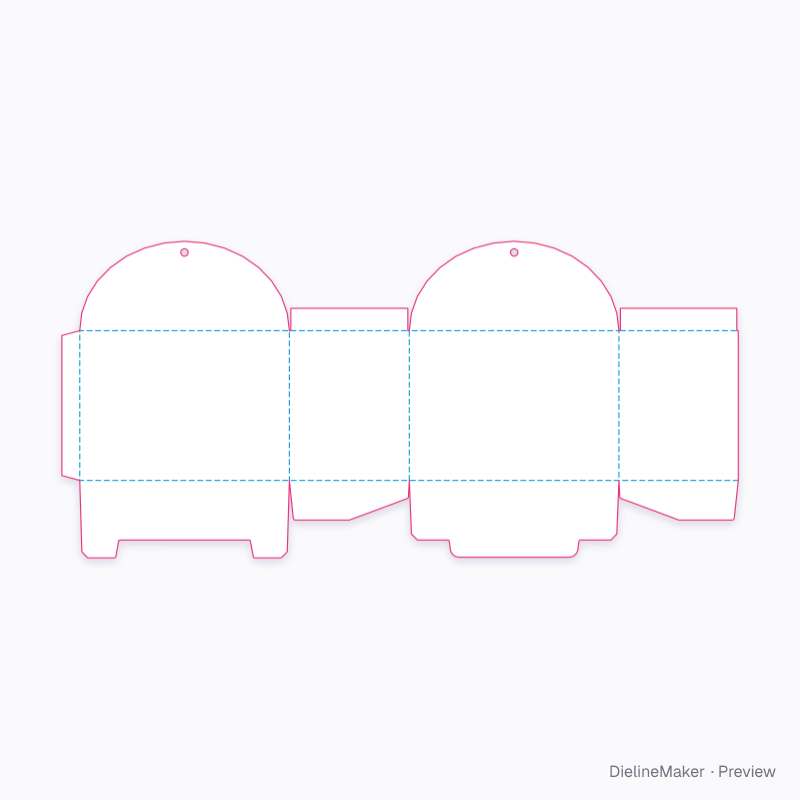

The carton with paired round top flaps family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this round-flap favour box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
