The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureFood
Deep-fill sandwich wedge dieline
Taller and deeper for triple-decker and deep-fill sandwiches. A ready-sized preset of the sandwich wedge — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside130 × 88 × 88 mm
Outside131 × 89.7 × 89.7 mm
Flat blank308.2 × 331.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 130 · Depth 88 · Height 88 mm
- Size range
- Length 80–220 · Depth 40–130 · Height 40–130 mm
- Manufacturing
- 130.5 × 88.9 × 88.9 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.054 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Food kraft, PE-lined 320 g · 0.5 mm caliper
- Board options
- Food kraft PEFood SBS PEKraft 350SBS 350SBS 300SBS 18 pt
- Good for

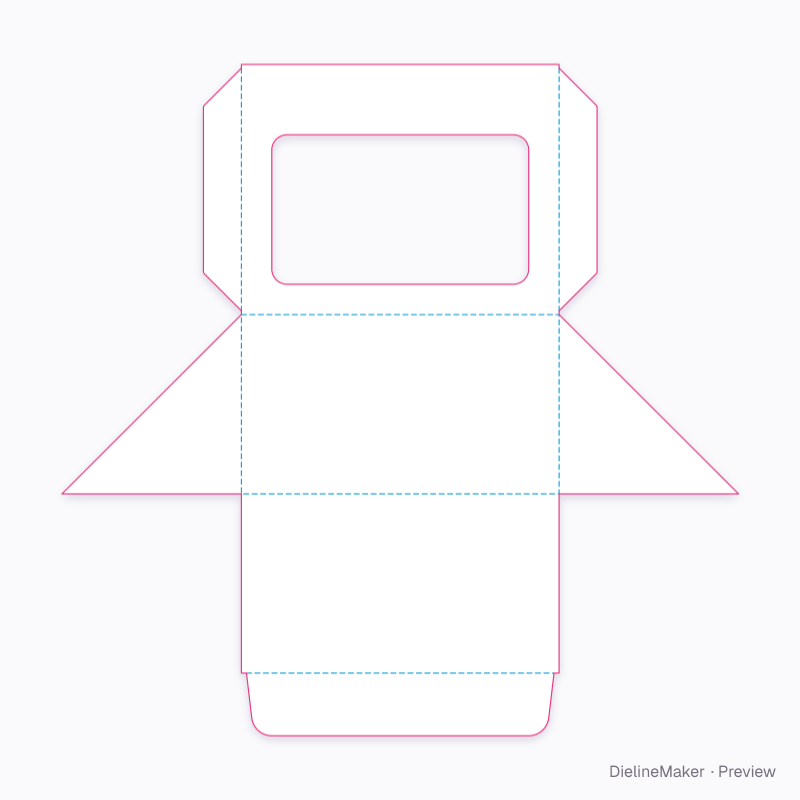

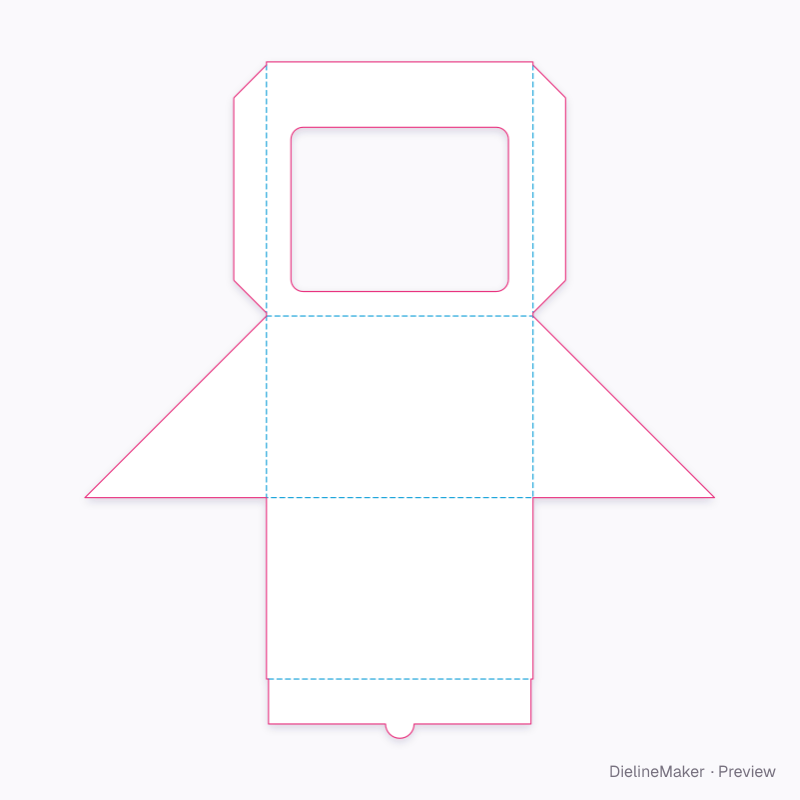

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for Food kraft, PE-lined 320 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 130.5 × 88.9 | L + T × – |
| Window face | 130.5 × 124.4 | L + T × – |
| Left end | 88.9 × 88.9 | – |
| Right end | 88.9 × 88.9 | – |
| Glue flap ×2 | 16 × 121.4 | – |
| Back | 130.5 × 88.9 | L + T × – |
| Peel-seal flap | 128.5 × 28.8 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Closure2 options
- Peel flap depthmm
- Windowon / off
- Window marginmm

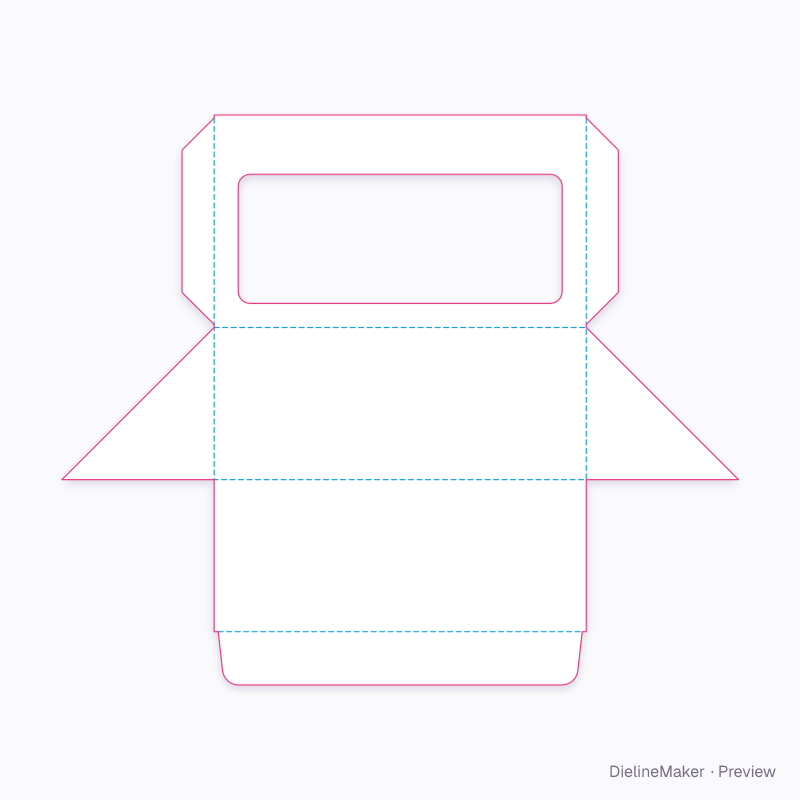

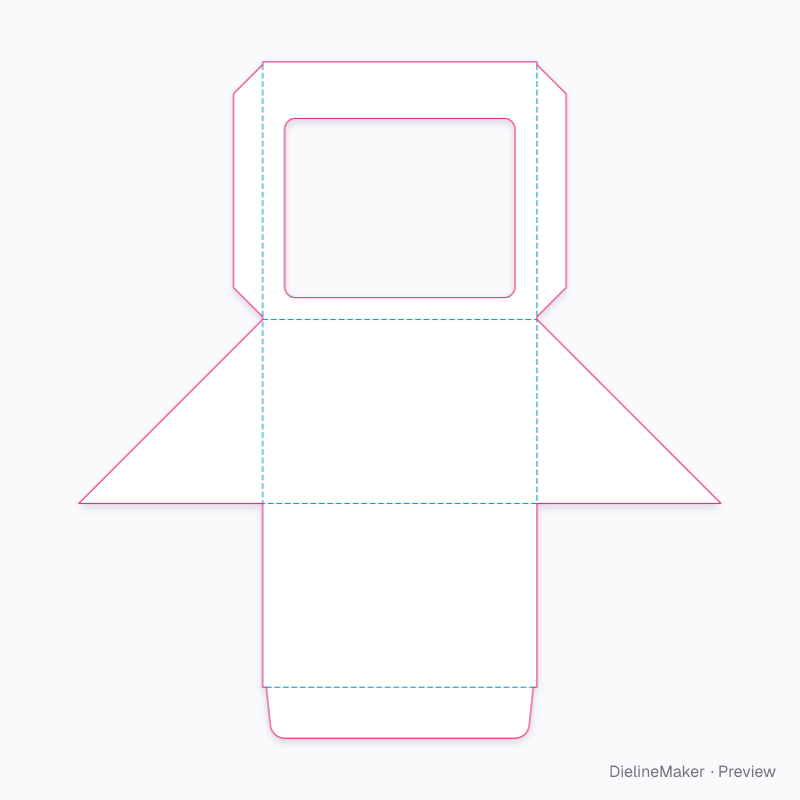

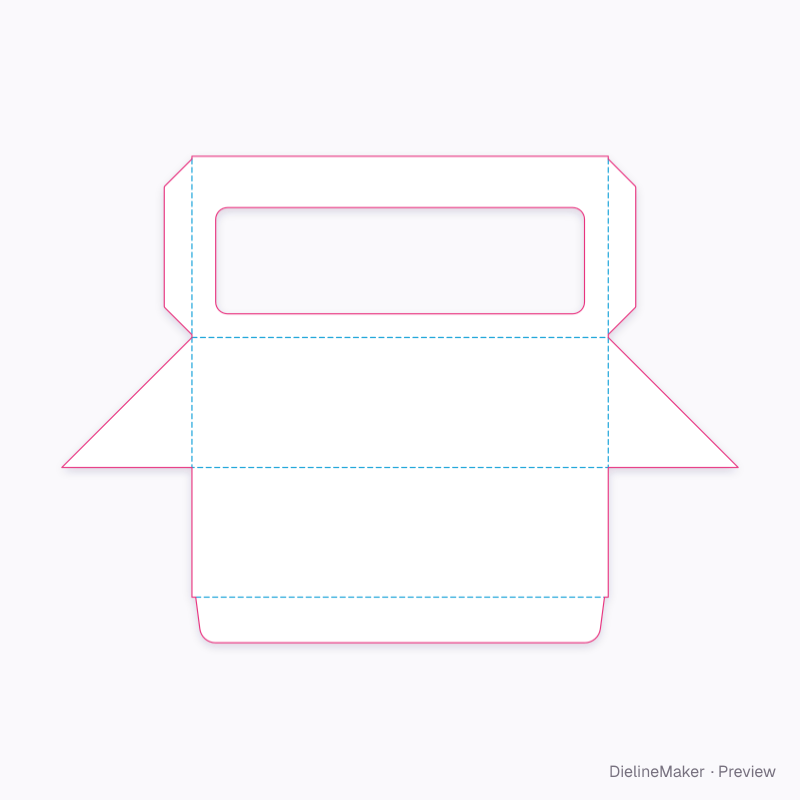

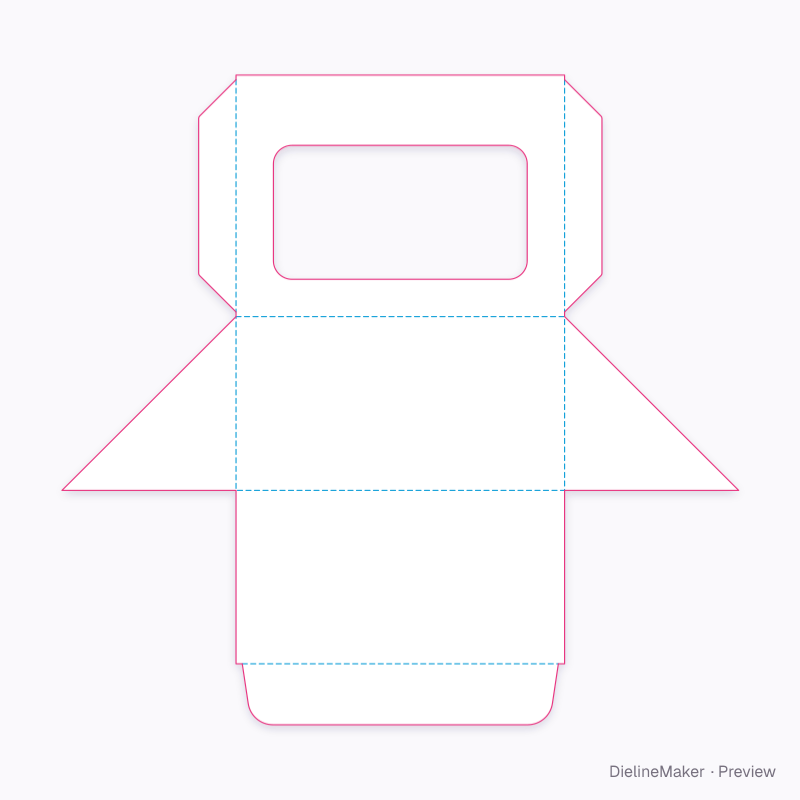

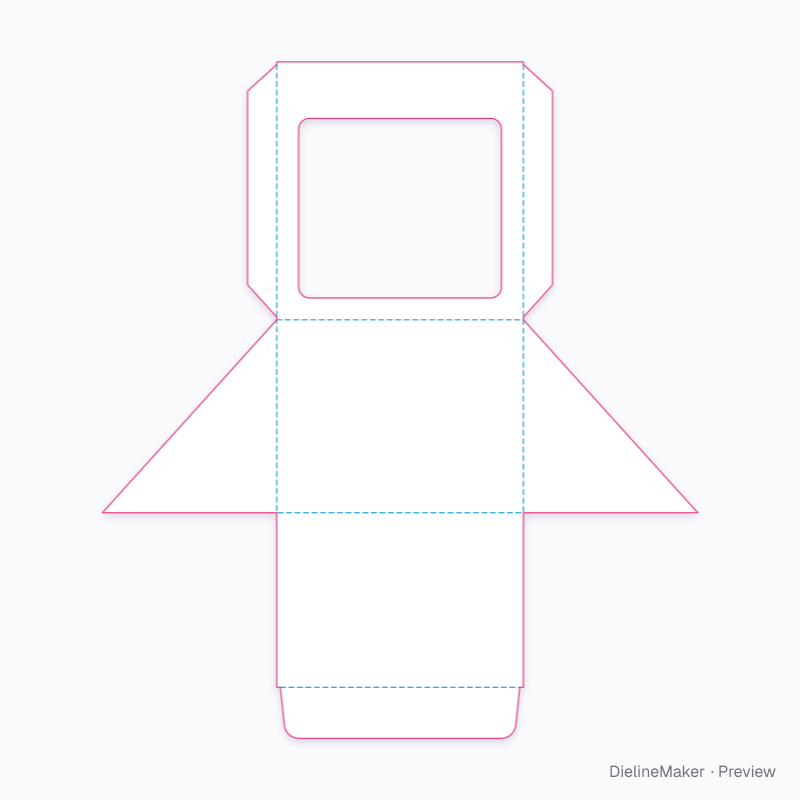

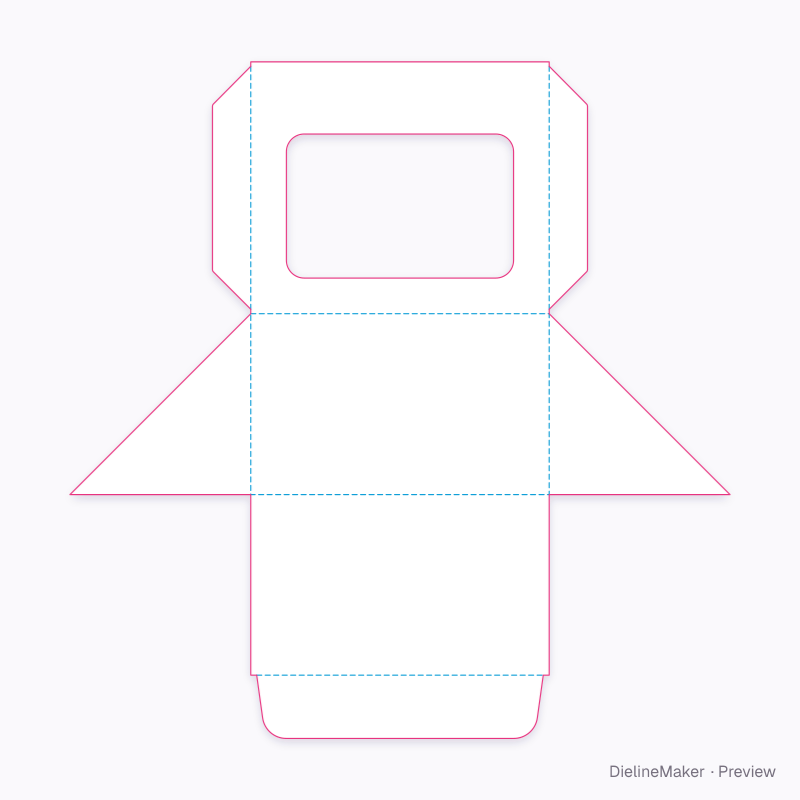

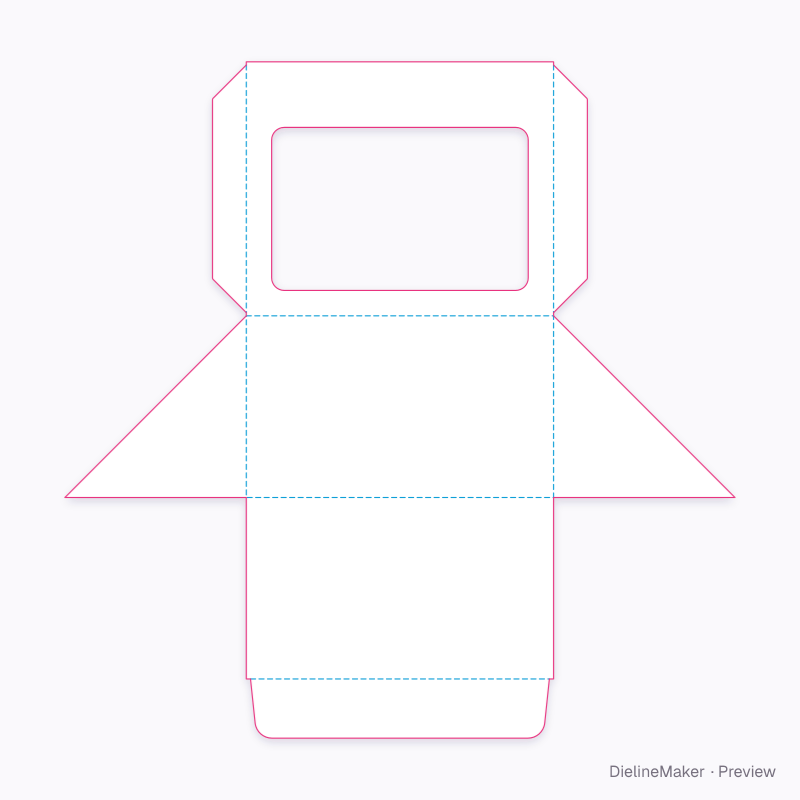

The sandwich wedge family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this deep-fill sandwich wedge yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
