The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA A10.10.03.03Tuck end
Oat biscuit carton — Seal end carton dieline
Editable 170 × 50 × 155 mm starting point using seal end carton. Adjust the dimensions to your product before prototyping. A ready-sized preset of the seal end carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside170 × 50 × 155 mm
Outside171 × 51 × 156 mm
Flat blank453.5 × 255.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA A10.10.03.03
- Inside size
- Length 170 · Width 50 · Height 155 mm
- Size range
- Length 20–400 · Width 12–200 · Height 20–500 mm
- Manufacturing
- 170.5 × 50.5 × 155.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.109 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300GD2 350FBB 400Kraft 350Black 350F-fluteSBS 18 pt
- Good for

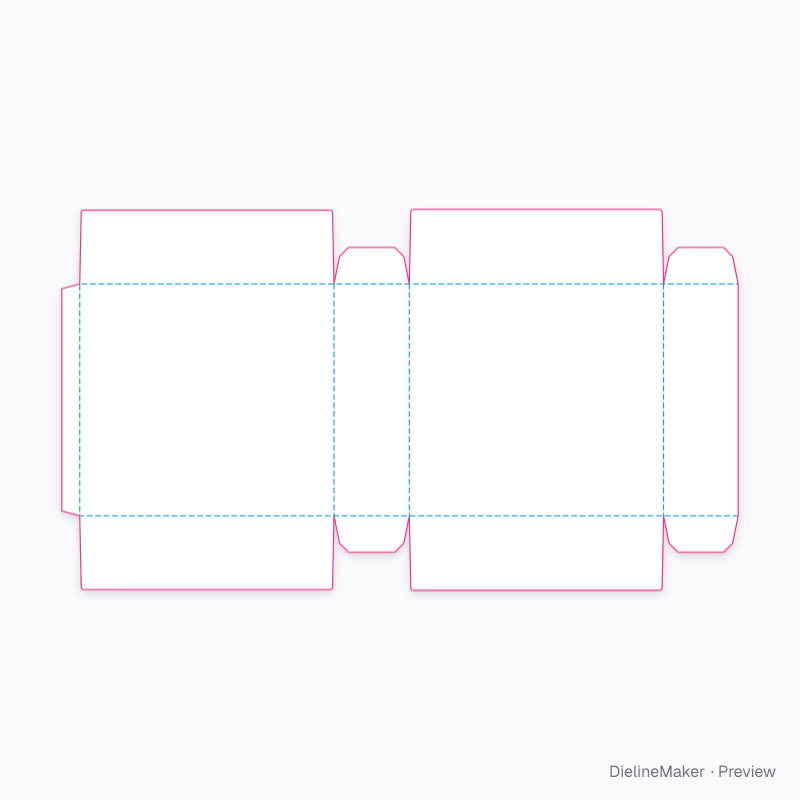

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA A10.10.03.03 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 170.5 × 155.5 | L + T × H + T |
| Left side | 50.5 × 155.5 | W + T × H + T |
| Back | 170.5 × 155.5 | L + T × H + T |
| Right side | 50 × 155.5 | W × H + T |
| Glue flap | 12 × 155.5 | – × H + T |
| Dust flap ×2 | 50.5 × 24.5 | W + T × – |
| Dust flap ×2 | 50 × 24.5 | W × – |
| Inner seal flap ×2 | 170.5 × 49.5 | L + T × W − T |
| Top seal flap | 170.5 × 50 | L + T × W |
| Bottom seal flap | 170.5 × 50 | L + T × W |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Top end2 options
- Outer flap extramm
- Dust flap depthmm
- Tear stripon / off
- Rim catchon / off
- Windowon / off
