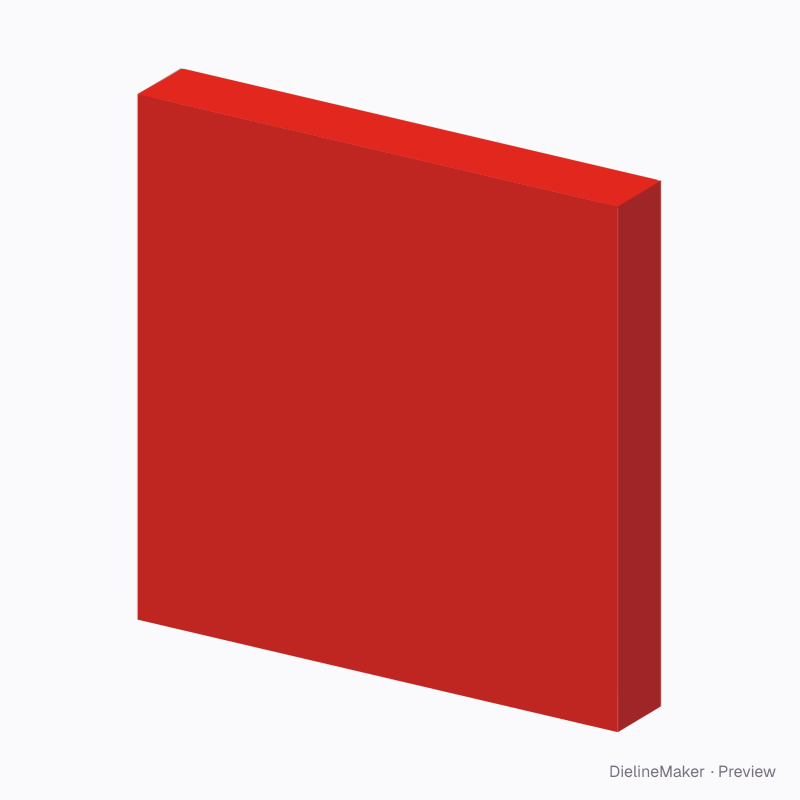

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA A10.10.03.03Tuck end
Frozen pizza carton dieline
Flat seal-end carton for a 25 cm frozen pizza. A ready-sized preset of the seal end carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside265 × 38 × 265 mm
Outside266 × 39 × 266 mm
Flat blank619.5 × 341.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA A10.10.03.03
- Inside size
- Length 265 · Width 38 · Height 265 mm
- Size range
- Length 20–400 · Width 12–200 · Height 20–500 mm
- Manufacturing
- 265.5 × 38.5 × 265.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.207 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300GD2 350FBB 400Kraft 350Black 350F-fluteSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA A10.10.03.03 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 265.5 × 265.5 | – |
| Left side | 38.5 × 265.5 | W + T × – |
| Back | 265.5 × 265.5 | – |
| Right side | 38 × 265.5 | W × – |
| Glue flap | 12 × 265.5 | – |
| Dust flap ×2 | 38.5 × 18.5 | W + T × – |
| Dust flap ×2 | 38 × 18.5 | W × – |
| Inner seal flap ×2 | 265.5 × 37.5 | – × W − T |
| Top seal flap | 265.5 × 38 | – × W |
| Bottom seal flap | 265.5 × 38 | – × W |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Top end2 options
- Outer flap extramm
- Dust flap depthmm
- Tear stripon / off
- Rim catchon / off
- Windowon / off
