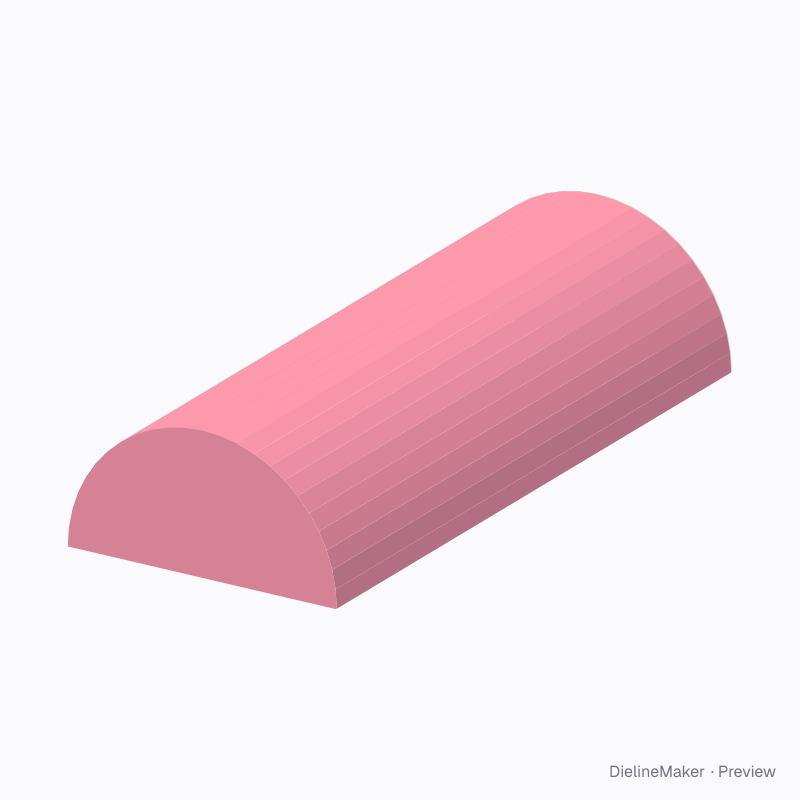

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SEMICIRCULAR-BAKERY-01Food
Swiss roll carton with locking catch dieline
A half-round bakery carton: two semicircular end caps on a curved roof that swings back on the base for display, closing with a front tuck tongue. A ready-sized preset of the semicircular display bakery carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside260 × 110 × 55 mm
Outside261 × 111 × 56 mm
Flat blank311 × 276 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SEMICIRCULAR-BAKERY-01
- Inside size
- Length 260 · Width 110 · Height 55 mm
- Size range
- Length 80–600 · Width 50–300 · Height 25–300 mm
- Manufacturing
- 260 × 110.5 × 55.3 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Left end cap, Right end cap, Roof and base
- Board area
- 0.091 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- Food kraft, PE-lined 320 g · 0.5 mm caliper
- Board options
- Food kraft PESBS 350Kraft 350FBB 400SBS 18 pt
- Good for

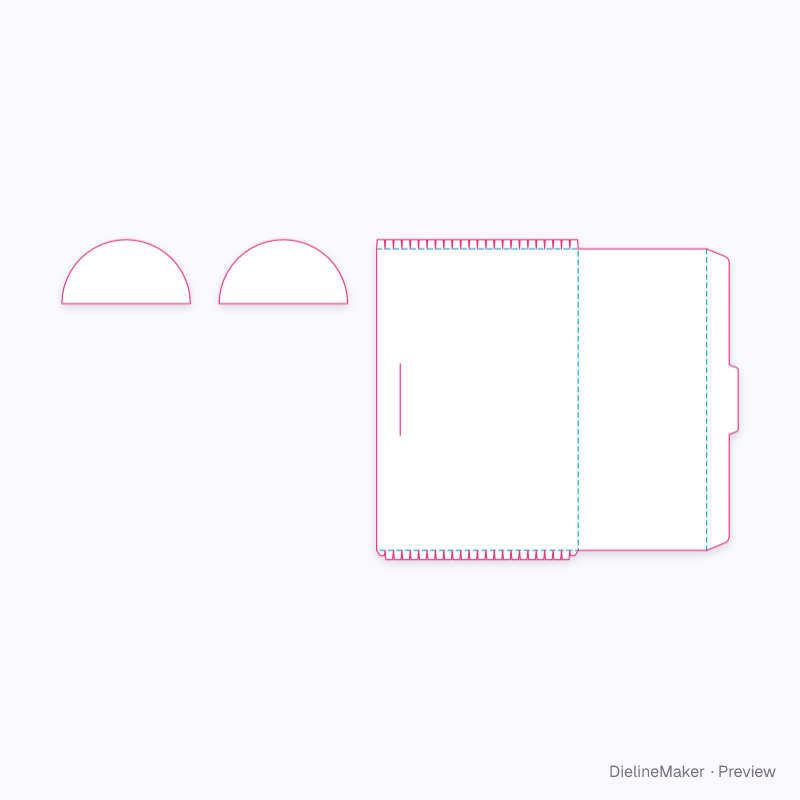

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-SEMICIRCULAR-BAKERY-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for Food kraft, PE-lined 320 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Semicircular end capLeft end cap | 110.5 × 55.3 | W + T × – |
| Semicircular end capRight end cap | 110.5 × 55.3 | W + T × – |
| Base wall ×24Roof and base | 7.2 × 260 | – × L |
| Cap bonding tab ×2Roof and base | 7.2 × 4.5 | – |
| Cap bonding tab ×46Roof and base | 7.2 × 8 | – |
| BaseRoof and base | 110.5 × 260 | W + T × L |
| Front tuck tongueRoof and base | 27.1 × 260 | – × L |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Front tongue depthmm
- Front catch2 options
- Cap bonding tabsmm
The semicircular display bakery carton family
The same structure with sizes, boards and options set for a use.

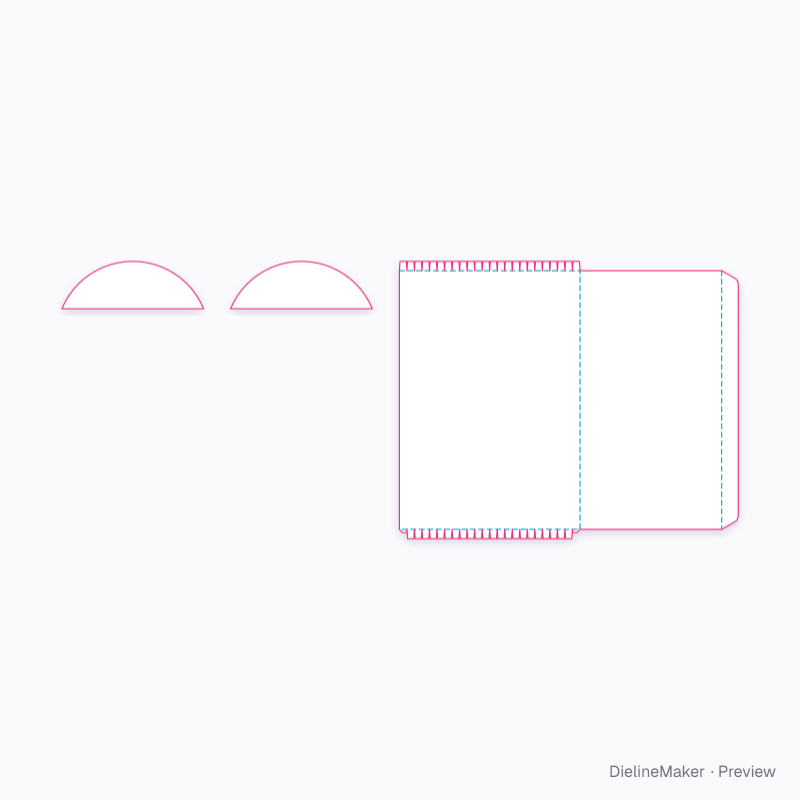

Preset

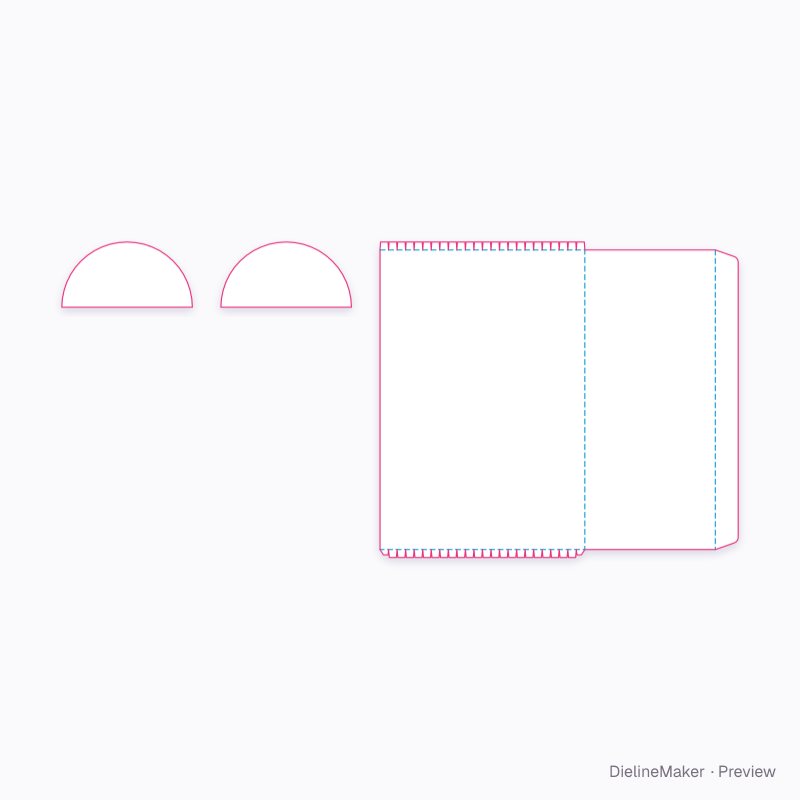

Preset

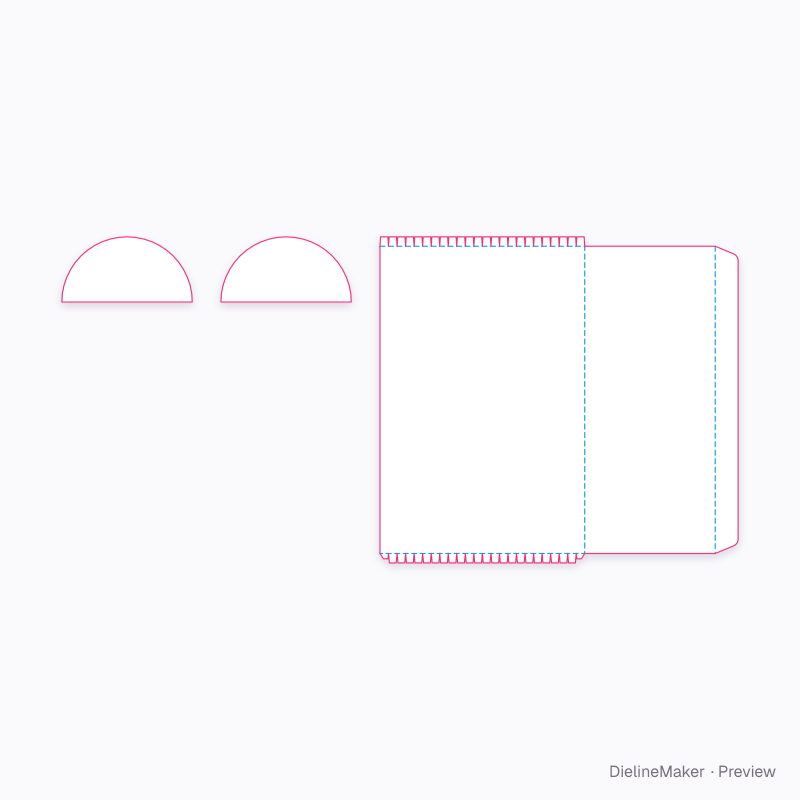

Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this swiss roll carton with locking catch yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
