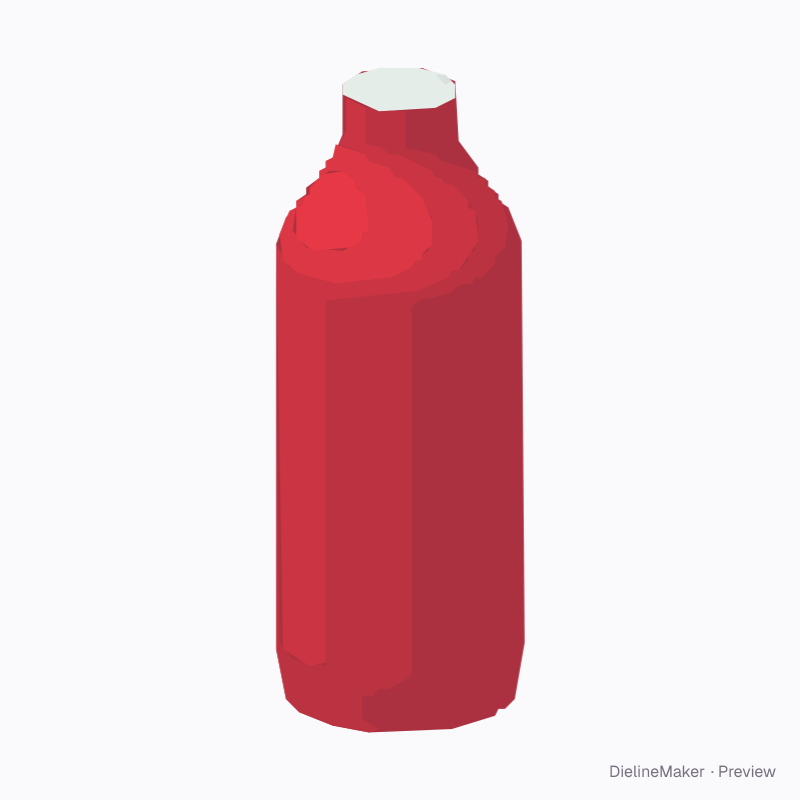

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureLabels
Shoulder bottle full-body sleeve dieline
An unshrunk rectangular PETG film web with a longitudinal seam, layflat guides and clear cut margins. Preview it around a cylinder, taper or shoulder bottle. The preview shows nominal circumferential compression; film shrink curves, artwork pre-distortion, length shrink and the actual container profile require a converter’s distortion proof. This is a sleeve artwork guide, not a container mould. A ready-sized preset of the full-body shrink sleeve — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 65 × 170 mm
OutsideØ 65 × 170 mm
Flat blank215.5 × 170 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Maximum container diameter 65 · Sleeve cut length 170 mm
- Size range
- Maximum container diameter 30–180 · Sleeve cut length 40–350 mm
- Manufacturing
- Ø 65 × 170 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.037 m² · about 15 up on a 720 × 1020 mm sheet
- Default board
- PETG shrink film 40 µm · 0.04 mm caliper
- Board options
- PETG shrink
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Perforation
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.04 mm for PETG shrink film 40 µm). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| left sleeve | 52.6 × 170 | – × H |
| front sleeve | 52.6 × 170 | – × H |
| right sleeve | 52.6 × 170 | – × H |
| back sleeve | 57.6 × 170 | – × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 7 options; the template and 3D preview follow each change.
- Reference profile3 options
- Top / neck diametermm
- Base diametermm
- Shoulder from base%
- Unshrunk diameter clearancemm
- Longitudinal overlapmm
- Vertical removal perforationon / off
The full-body shrink sleeve family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this shoulder bottle full-body sleeve yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
