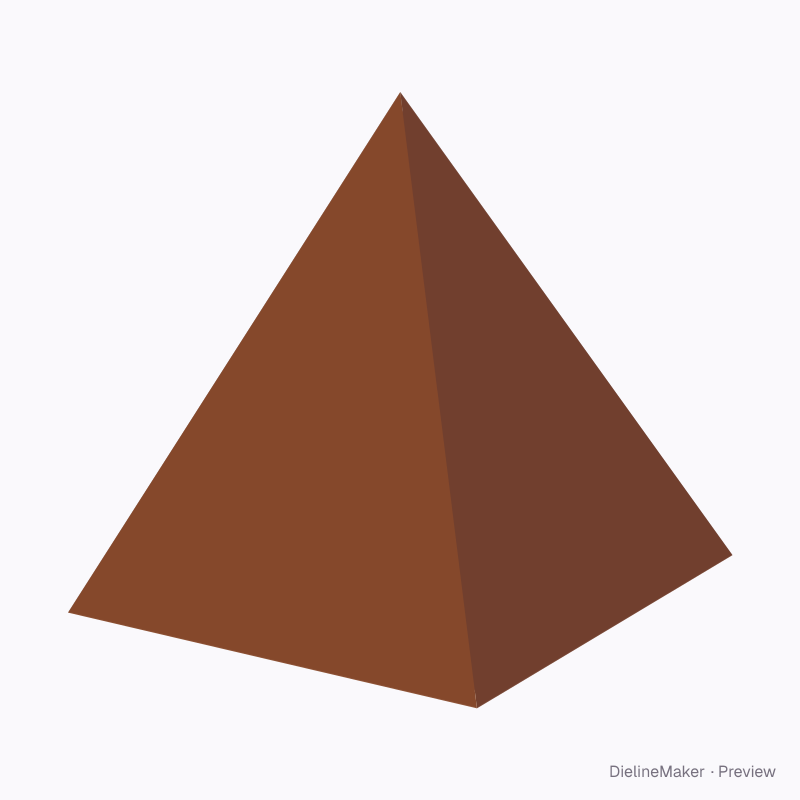

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SIDE-OPEN-PYRAMID-01Shapes
Side-opening pyramid gift box dieline
A square pyramid that stays upright while its front triangle opens on the base, closed by side tucks. A ready-sized preset of the side-opening pyramid box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside100 × 110 mm
Outside101 × 111 mm
Flat blank341.7 × 341.7 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SIDE-OPEN-PYRAMID-01
- Inside size
- Base 100 · Height 110 mm
- Size range
- Base 40–300 · Height 40–400 mm
- Manufacturing
- 100.5 × 110.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.039 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350SBS 300Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-SIDE-OPEN-PYRAMID-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 100 × 100 | L × L |
| Left face | 120.8 × 100 | – × L |
| Back face | 100 × 120.8 | L × – |
| Right face | 120.8 × 100 | – × L |
| Opening front face | 100 × 120.8 | L × – |
| Glue flap ×2 | 11.1 × 126.8 | – |
| Side tuck ×2 | 11.1 × 124.8 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Side tuck depthmm
