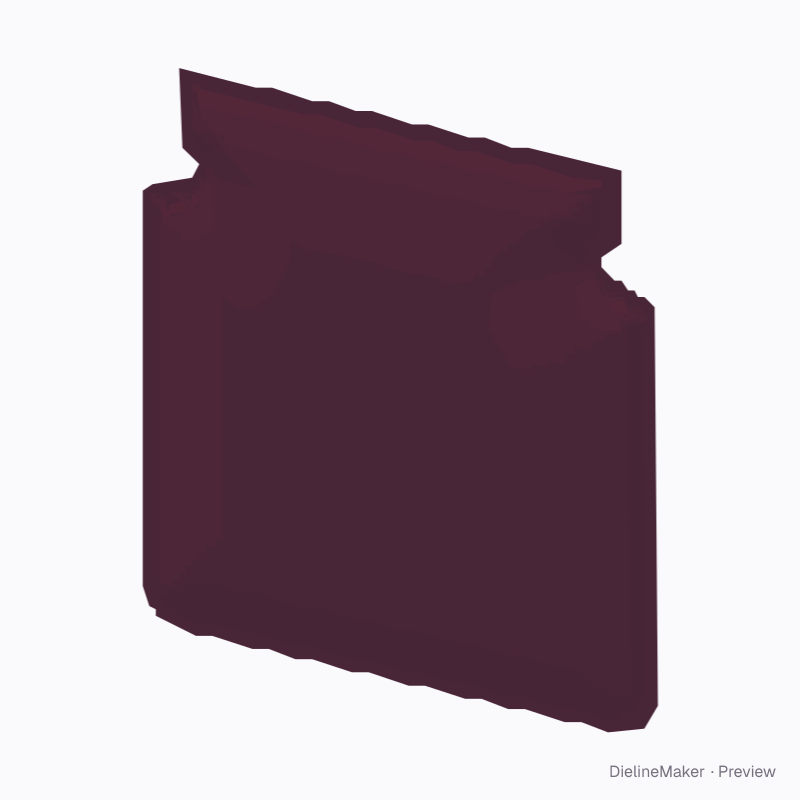

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SILSACHET-01Labels
Jar-shaped candy sachet 13 × 13 cm dieline
A die-cut film sachet in a bottle, jar, teardrop, oval-head or scalloped outline, front and back webs sealed round the edge. Print both webs to the outline. A ready-sized preset of the silhouette sachet (bottle, jar, teardrop) — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside130 × 15 × 130 mm
Outside130 × 15 × 130 mm
Flat blank130 × 130 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SILSACHET-01
- Inside size
- Flat width 130 · Filled thickness 15 · Flat height 130 mm
- Size range
- Flat width 40–250 · Filled thickness 2–40 · Flat height 60–350 mm
- Manufacturing
- 130 × 15 × 130 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Front web (outer 4 mm is seal), Back web (outer 4 mm is seal)
- Board area
- 0.033 m² · about 35 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Silhouette5 options
- Neck / waist width%
- Seal bandmm
- Film4 options
The silhouette sachet (bottle, jar, teardrop) family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this jar-shaped candy sachet 13 × 13 cm yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
