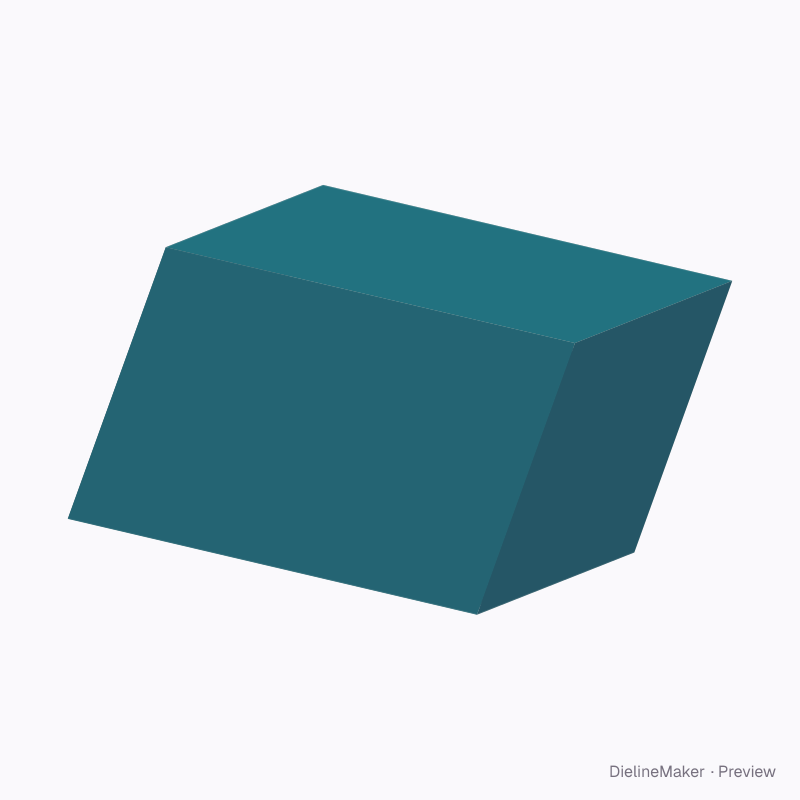

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
Oblique parallelepiped dieline
Three independently slanted edges. A ready-sized preset of the skewed parallelepiped paper net — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside100 × 70 × 90 mm
Outside100 × 70 × 90 mm
Flat blank344.2 × 226.7 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- First edge 100 · Second edge 70 · Third edge 90 mm
- Size range
- First edge 30–300 · Second edge 30–300 · Third edge 30–300 mm
- Manufacturing
- 100 × 70 × 90 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.046 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.16 mm for Art paper 170 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Face 1 | 93.3 × 86.9 | – |
| Face 2 | 98.5 × 90 | – × H |
| Face 3 | 100 × 65.8 | – |
| Face 4 | 100 × 65.8 | – |
| Face 5 | 98.5 × 90 | – |
| Face 6 | 67.6 × 90 | – |
| Hand-glue seam 1/3 | 70 × 7 | – |
| Hand-glue seam 1/4 | 70 × 7 | – |
| Hand-glue seam 2/3 | 100 × 7 | L × – |
| Hand-glue seam 2/4 | 100 × 7 | L × – |
| Hand-glue seam 2/6 | 7 × 90 | – |
| Hand-glue seam 3/6 | 7 × 70 | – |
| Hand-glue seam 4/6 | 7 × 70 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Second / third edge angle°
- First / third edge angle°
- First / second edge angle°
- Hand-glue tab depthmm
