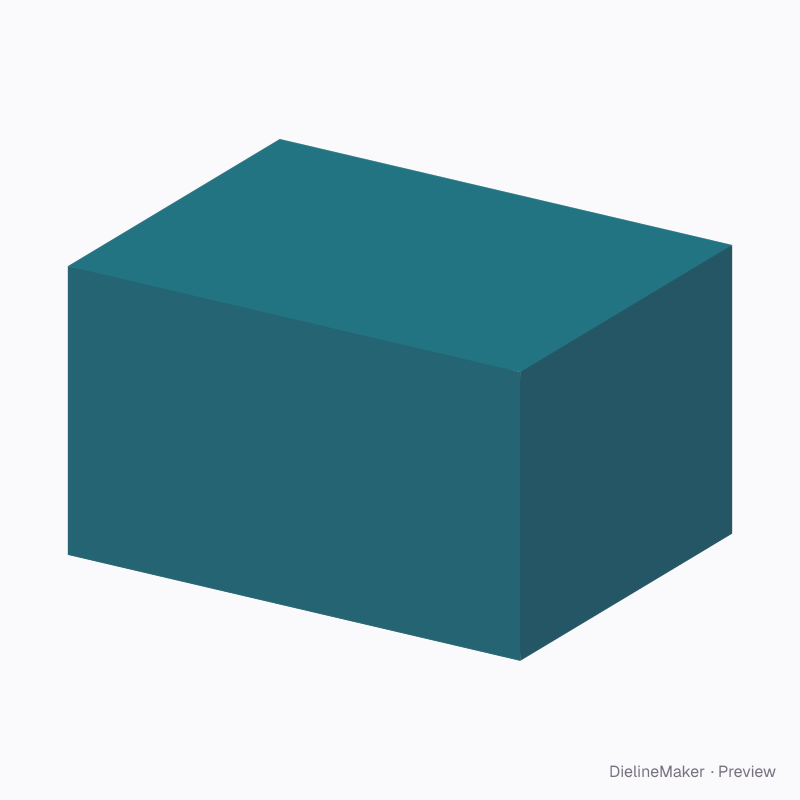

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
Rectangular parallelepiped dieline
A right-angle starting point for adjusting the three edge angles. A ready-sized preset of the skewed parallelepiped paper net — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside120 × 70 × 90 mm
Outside120 × 70 × 90 mm
Flat blank257 × 427 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- First edge 120 · Second edge 70 · Third edge 90 mm
- Size range
- First edge 30–300 · Second edge 30–300 · Third edge 30–300 mm
- Manufacturing
- 120 × 70 × 90 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.054 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.16 mm for Art paper 170 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Face 1 | 70 × 90 | W × H |
| Face 2 | 90 × 120 | H × L |
| Face 3 | 70 × 120 | W × L |
| Face 4 | 70 × 120 | W × L |
| Face 5 | 90 × 120 | H × L |
| Face 6 | 70 × 90 | W × H |
| Hand-glue seam 1/2 | 7 × 90 | – × H |
| Hand-glue seam 1/5 | 7 × 90 | – × H |
| Hand-glue seam 2/4 | 7 × 120 | – × L |
| Hand-glue seam 2/6 | 90 × 7 | H × – |
| Hand-glue seam 4/5 | 7 × 120 | – × L |
| Hand-glue seam 4/6 | 70 × 7 | W × – |
| Hand-glue seam 5/6 | 90 × 7 | H × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Second / third edge angle°
- First / third edge angle°
- First / second edge angle°
- Hand-glue tab depthmm
The skewed parallelepiped paper net family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this rectangular parallelepiped yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
