ECMA A01.01.00.00Sleeves
Socks belly band dieline
Kraft band around a folded pair of socks. A ready-sized preset of the open-ended sleeve — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside95 × 22 × 70 mm
Outside95 × 22.9 × 70.9 mm
Flat blank197.4 × 95 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA A01.01.00.00
- Inside size
- Length 95 · Depth 22 · Height 70 mm
- Size range
- Length 20–600 · Depth 3–300 · Height 15–400 mm
- Manufacturing
- 95 × 22.5 × 70.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.019 m² · about 28 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350Black 350GD2 350PET 0.3F-fluteSBS 18 pt
- Good for

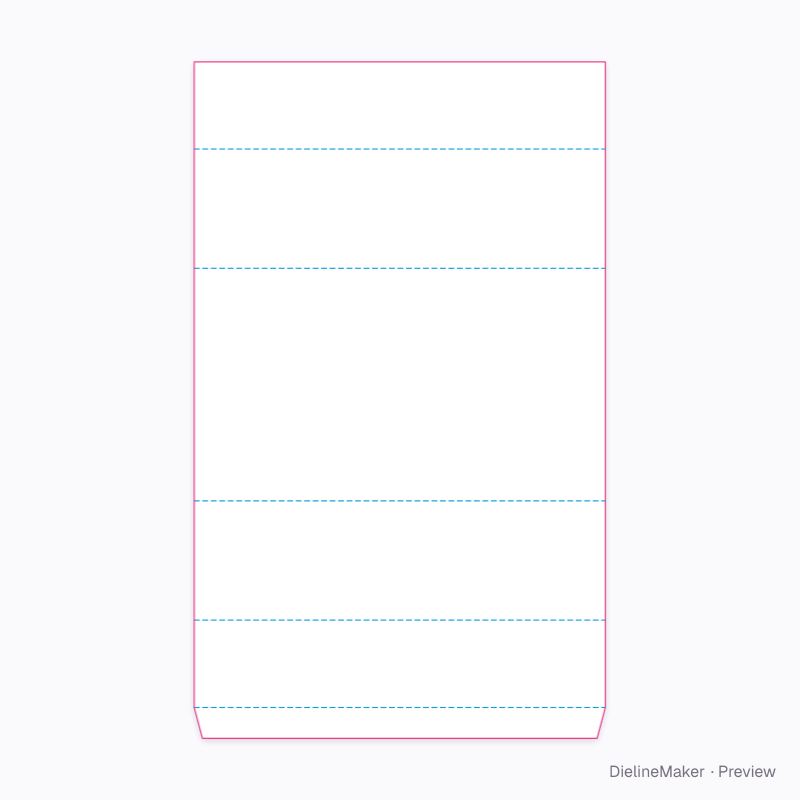

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA A01.01.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 70.5 × 95 | H + T × L |
| Top | 22.5 × 95 | W + T × L |
| Back | 70.5 × 95 | H + T × L |
| Bottom | 22 × 95 | W × L |
| Glue flap | 12 × 95 | – × L |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Thumb notcheson / off
- Windowon / off
The open-ended sleeve family
The same structure with sizes, boards and options set for a use.
