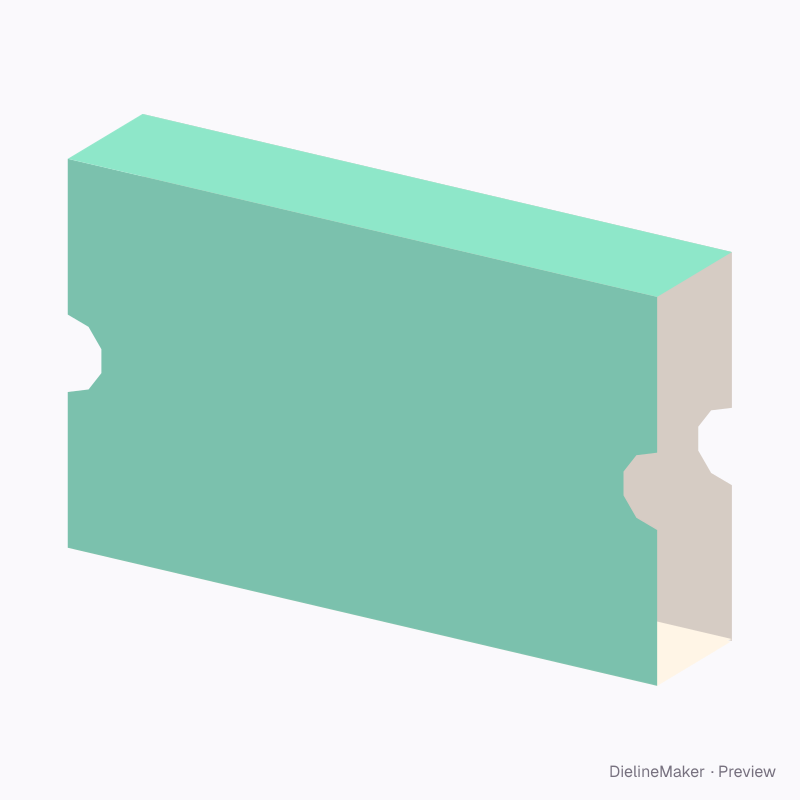

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA A01.01.00.00Sleeves
Tray sleeve 200×40×120 dieline
Slides over a macaron or chocolate tray. A ready-sized preset of the open-ended sleeve — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside200 × 40 × 120 mm
Outside200 × 41.2 × 121.2 mm
Flat blank333.8 × 200 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA A01.01.00.00
- Inside size
- Length 200 · Depth 40 · Height 120 mm
- Size range
- Length 20–600 · Depth 3–300 · Height 15–400 mm
- Manufacturing
- 200 × 40.6 × 120.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.066 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350Black 350GD2 350PET 0.3F-fluteSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA A01.01.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.6 mm for Folding boxboard 400 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 120.6 × 200 | H + T × L |
| Top | 40.6 × 200 | W + T × L |
| Back | 120.6 × 200 | H + T × L |
| Bottom | 40 × 200 | W × L |
| Glue flap | 12 × 200 | – × L |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Thumb notcheson / off
- Notch radiusmm
- Windowon / off
