Preset

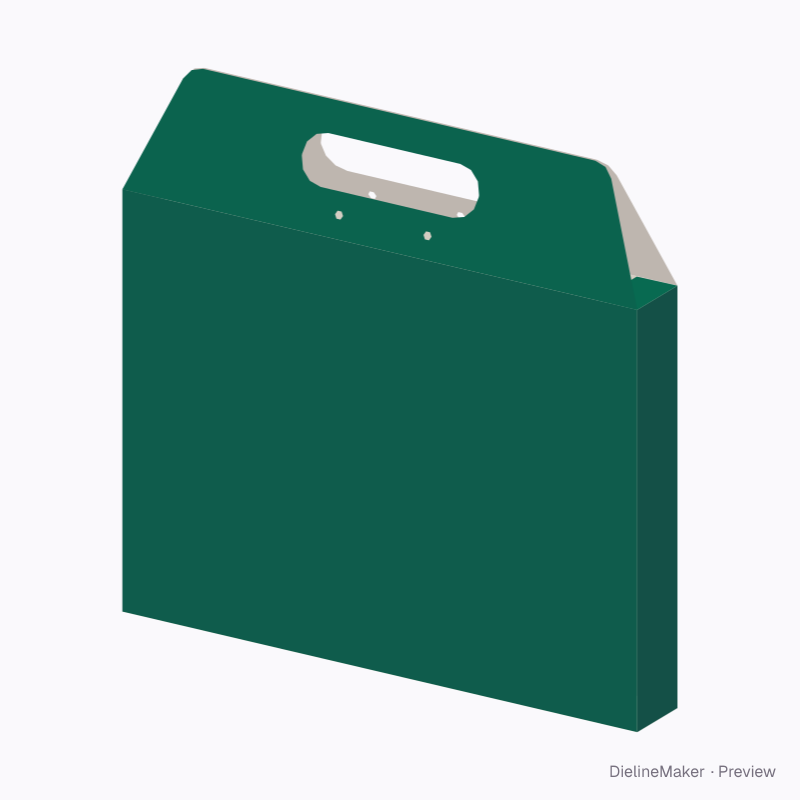

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SLIM-HANDLE-CASE-01Carriers
Slim case with projecting handle dieline
A thin case whose front and back rise into a doubled handle with a hand aperture and small fastening holes. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside320 × 40 × 240 mm
Outside323.2 × 43.2 × 243.2 mm
Flat blank735 × 352.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SLIM-HANDLE-CASE-01
- Inside size
- Length 320 · Thickness 40 · Height 240 mm
- Size range
- Length 120–600 · Thickness 10–120 · Height 100–500 mm
- Manufacturing
- 321.6 × 41.6 × 241.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.238 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KSBS 350Kraft 350SBS 18 pt
- Good for

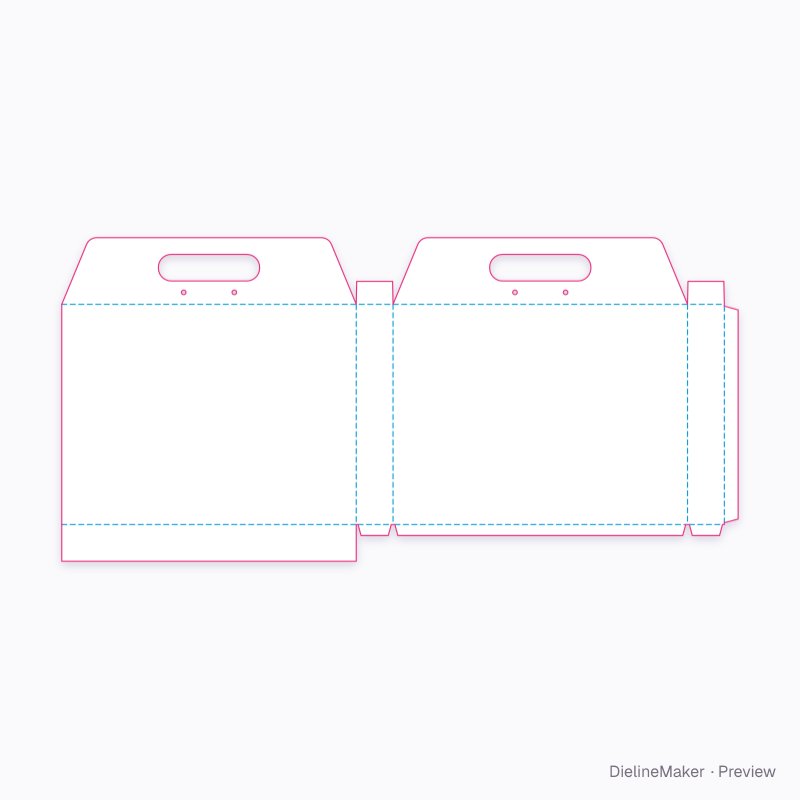

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-SLIM-HANDLE-CASE-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 320 × 240 | L × H |
| Handle panel ×2 | 320 × 72.6 | L × – |
| Narrow side ×2 | 40 × 240 | W × H |
| Base | 320 × 40 | L × W |
| Side top flap ×2 | 40 × 25 | W × – |
| Back | 320 × 240 | L × H |
| Glue flap ×2 | 36 × 12 | – |
| Glue flap | 316 × 12 | – |
| Glue flap | 15 × 236 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Handle heightmm
- Fastening holescount
Ready-sized slim case with projecting handle presets
The same structure with sizes, boards and options set for a use.
- Preset

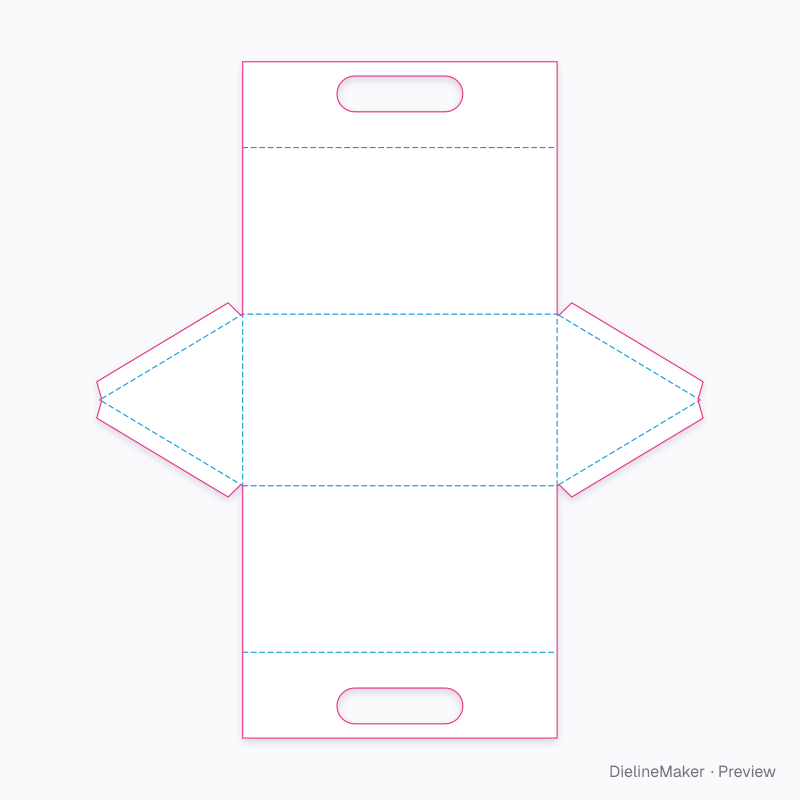

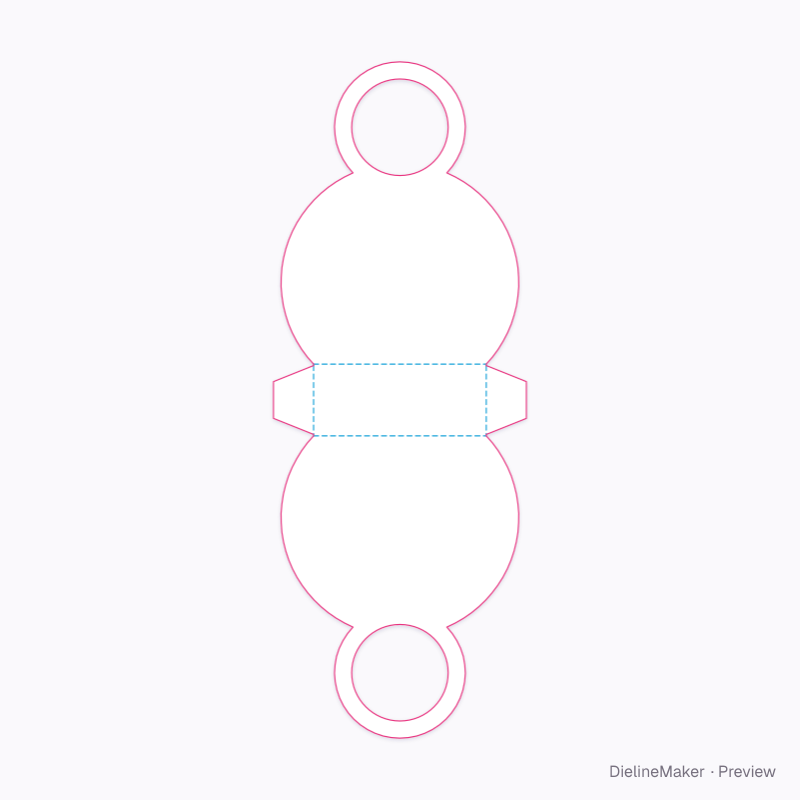

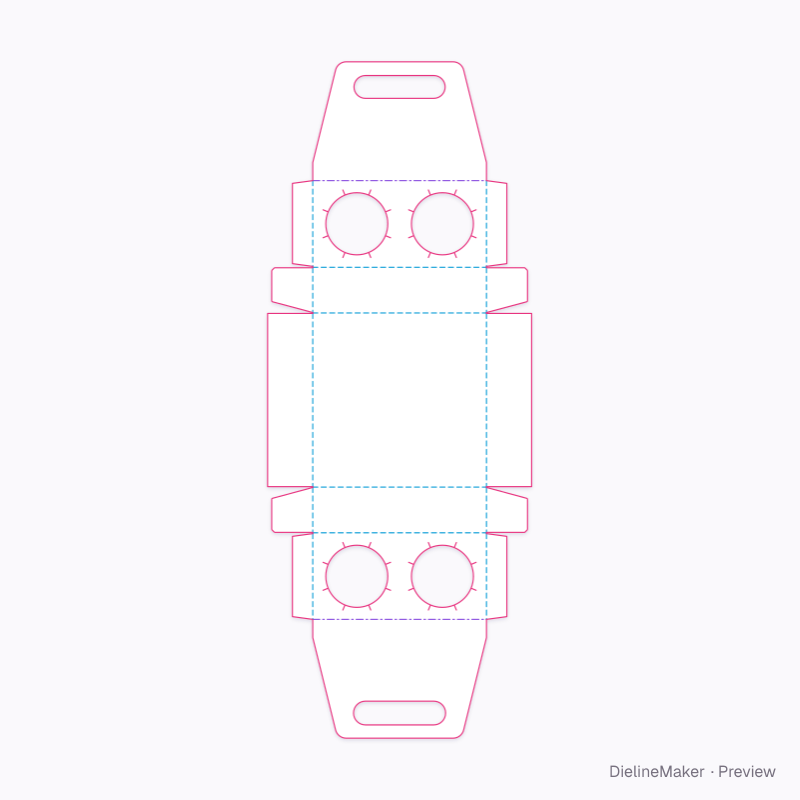

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this slim case with projecting handle yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
