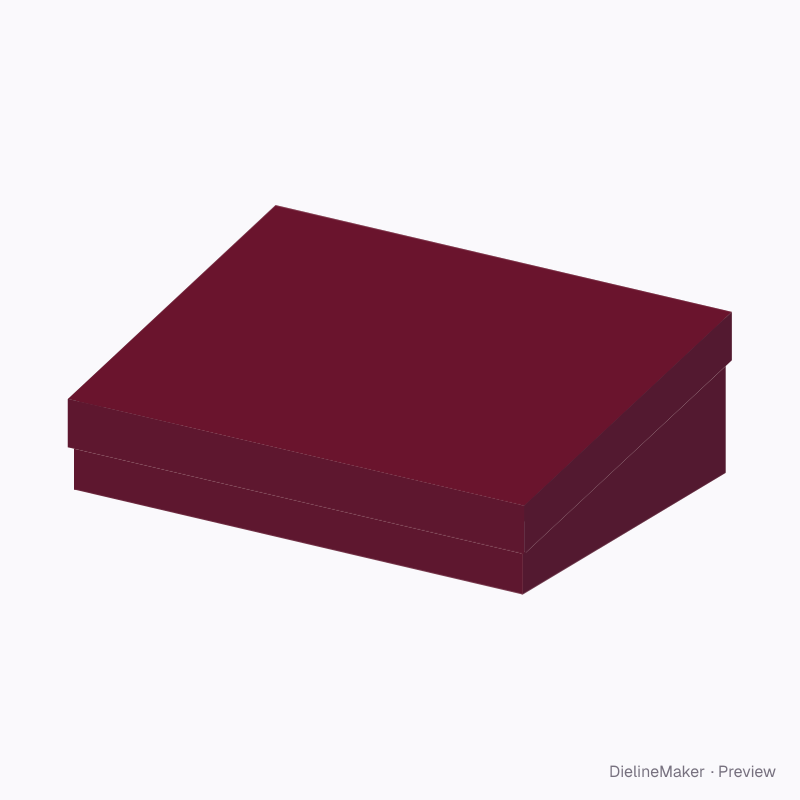

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SLOPING-RIGID-BOX-01Rigid
Shallow wedge rigid box dieline
A wrapped greyboard lid-and-base box whose back stands taller than the front, with a lid that follows the slope. A ready-sized preset of the rigid box with sloping lid and base — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside250 × 180 × 80 mm
Outside256 × 186 × 83 mm
Flat blank444.2 × 342 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SLOPING-RIGID-BOX-01
- Inside size
- Length 250 · Depth 180 · Back height 80 mm
- Size range
- Length 60–450 · Depth 50–350 · Back height 40–400 mm
- Manufacturing
- 253 × 183 × 81.5 mm score to score · inside vs outside sizes
- Parts
- 4 parts — Base printed wrap, Base greyboard blank, Lid wrap, Lid greyboard blank
- Board area
- 0.378 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Rigid greyboard 1.5 mm · 1.5 mm caliper
- Board options
- Rigid 2 mmRigid 1.5
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-SLOPING-RIGID-BOX-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.5 mm for Rigid greyboard 1.5 mm). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BaseBase printed wrap | 253.3 × 183.3 | – |
| BackBase printed wrap | 253.3 × 80.2 | – |
| FrontBase printed wrap | 253.3 × 45.2 | – |
| Left sideBase printed wrap | 80.2 × 183.3 | – |
| Right sideBase printed wrap | 80.2 × 183.3 | – |
| Turn-in roll ×2Base printed wrap | 250 × 1.7 | L × – |
| Glue flap ×2Base printed wrap | 80.2 × 15 | – |
| Glue flap ×2Base printed wrap | 45.2 × 15 | – |
| Turn-in roll ×2Base printed wrap | 1.7 × 183.3 | – |
| Turn-in inner ply ×2Base printed wrap | 250 × 15 | L × – |
| Turn-in inner ply ×2Base printed wrap | 14.7 × 183.3 | – |
| BaseBase greyboard blank | 253 × 183 | L + 2T × W + 2T |
| BackBase greyboard blank | 253 × 80 | L + 2T × H |
| FrontBase greyboard blank | 253 × 45 | L + 2T × – |
| Left sideBase greyboard blank | 80 × 183 | H × W + 2T |
| Right sideBase greyboard blank | 80 × 183 | H × W + 2T |
15 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Front heightmm
- Lid depthmm
