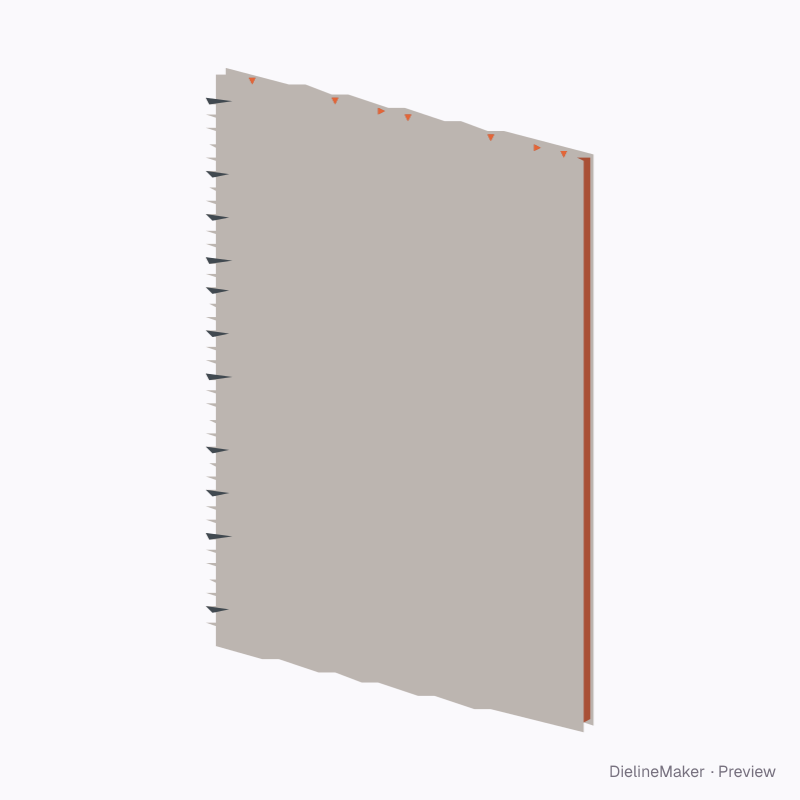

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
B5 176 × 250 mm spiral notebook dieline
176 × 250 mm cover with an editable 8 mm spine. Confirm bound thickness with your printer. A ready-sized preset of the spiral notebook — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside176 × 8 × 250 mm
Outside176 × 8 × 250 mm
Flat blank176 × 250 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Cover width 176 · Page-block thickness 8 · Cover height 250 mm
- Size range
- Cover width 90–300 · Page-block thickness 4–20 · Cover height 120–360 mm
- Manufacturing
- 176 × 8 × 250 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Front cover with punches, Back cover with punches, Page-block trim + punch reference
- Board area
- 0.131 m² · about 9 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 7 options; the template and 3D preview follow each change.
- Punch pitchmm
- Punch diametermm
- Binding3 options
- Page shape2 options
- Concealed-coil coveron / off
- Index-tab dividerscount
- Tab projectionmm
