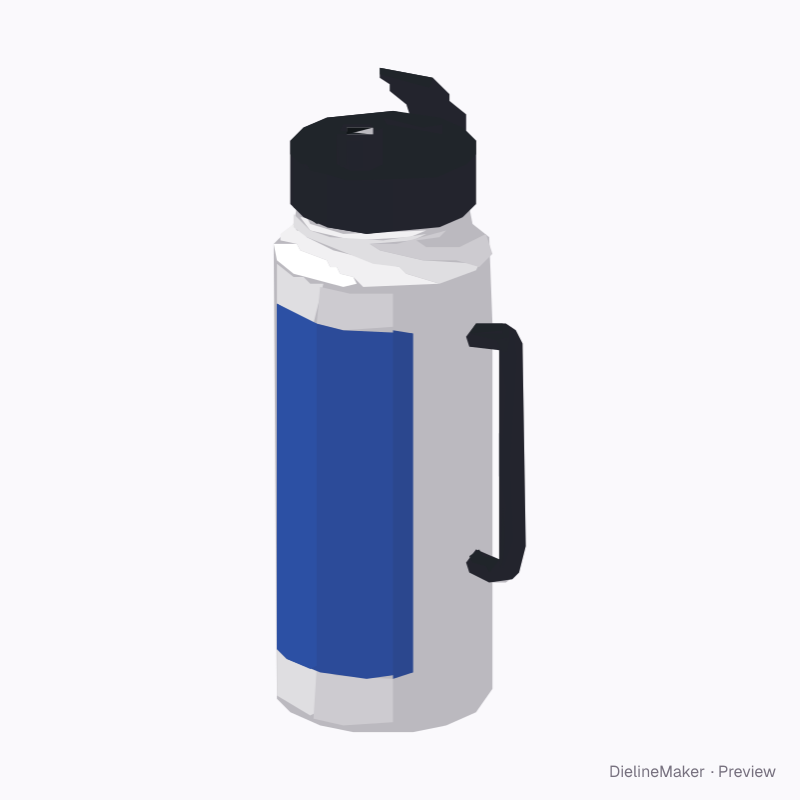

A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
Clear straw bottle with handle label template
Sports water & shaker bottle with independently sized width and depth, shaped shoulders and a push-pull sports spout, hinged flip cap or wide shaker mouthpiece. Exports are the flat front and back labels; body dimensions are a visual starting point, not a mould drawing or certified capacity. A ready-sized preset of the sports water & shaker bottle — adjust the object dimensions and decoration area to preview your artwork at size.
Object size88 × 88 × 250 mm
Artwork area72.2 × 150 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
