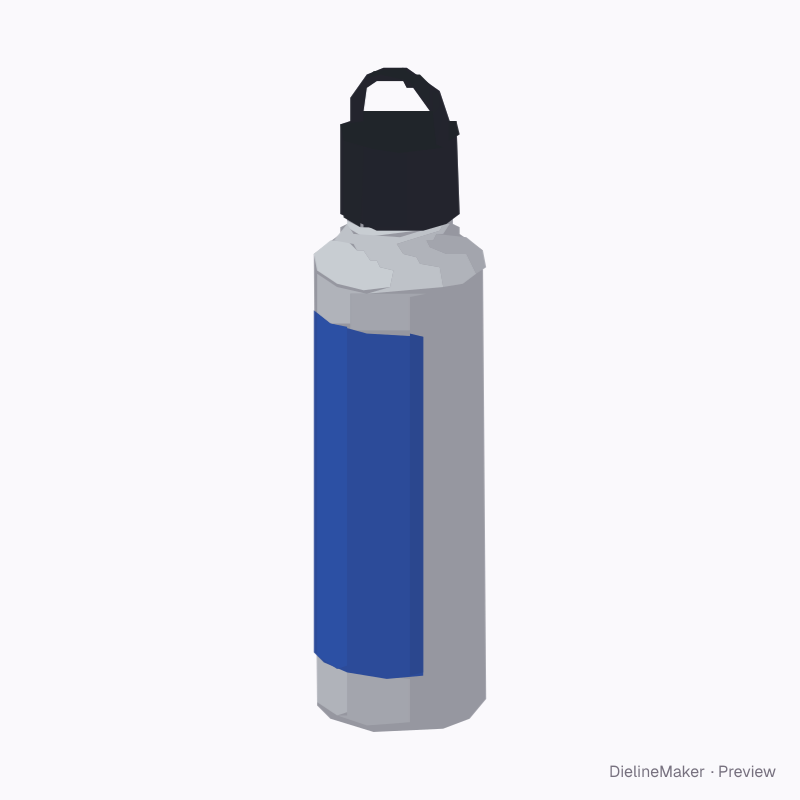

Stainless steel water bottle 750 ml label template
Sports water & shaker bottle with independently sized width and depth, shaped shoulders and a push-pull sports spout, hinged flip cap or wide shaker mouthpiece. Exports are the flat front and back labels; body dimensions are a visual starting point, not a mould drawing or certified capacity. A ready-sized preset of the sports water & shaker bottle — adjust the object dimensions and decoration area to preview your artwork at size.
Object size74 × 74 × 265 mm
Artwork area60.7 × 159 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Body width 74 · Body depth 74 · Overall height 265 mm
- Size range
- Body width 40–240 · Body depth 25–180 · Overall height 90–420 mm
- Parts
- 2 parts — Front label, Back label
- Artwork area
- 0.019 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 12 options; the template and 3D preview follow each change.
- Label width (0 = auto)mm
- Label height (0 = auto)mm
- Back labelon / off
- Body colour10 options
- Cap colour10 options
- Drinking closure4 options
- Bottle material4 options
- Bottle body3 options
- Carry attachment3 options
- Integral side handleon / off
- Internal drinking strawon / off
- Domed spout overcapon / off
