Square juice bottle label template

Square & rectangular bottle with independently sized width and depth, shaped shoulders and a screw, flip-top, disc-top, pump or fine-mist closure. Molded profiles support independent face recesses, with artwork that bridges the recesses, uses a smooth seat or follows their shape. Stepped rectangular bodies have broad upper and lower sections with separate labels on the narrower middle. A localized side waist narrows the side contours while retaining tall front and back labels. A long side handle leaves a real opening beside complementary notched labels. Export separate front and back labels, or one wrap label for compatible profiles; body dimensions are a visual starting point, not a mould drawing or certified capacity. A ready-sized preset of the square & rectangular bottle — adjust the object dimensions and decoration area to preview your artwork at size.

Download the artwork templatePro

PDFWith dimensionsPro planIllustratorNative .ai via scriptPro planSVGVector, by layerPro planDXFArtwork boundaryPro plan

Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans

Reference

—

Object size

Body width 58 · Body depth 58 · Bottle height without carry attachment 160 mm

Size range

Body width 40–240 · Body depth 25–180 · Bottle height without carry attachment 90–420 mm

Parts

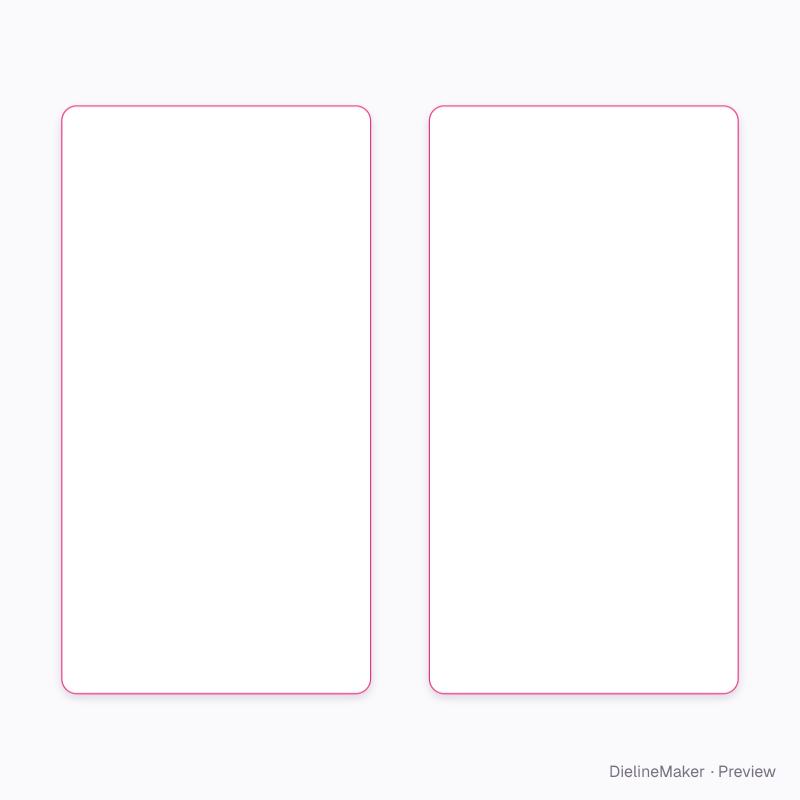

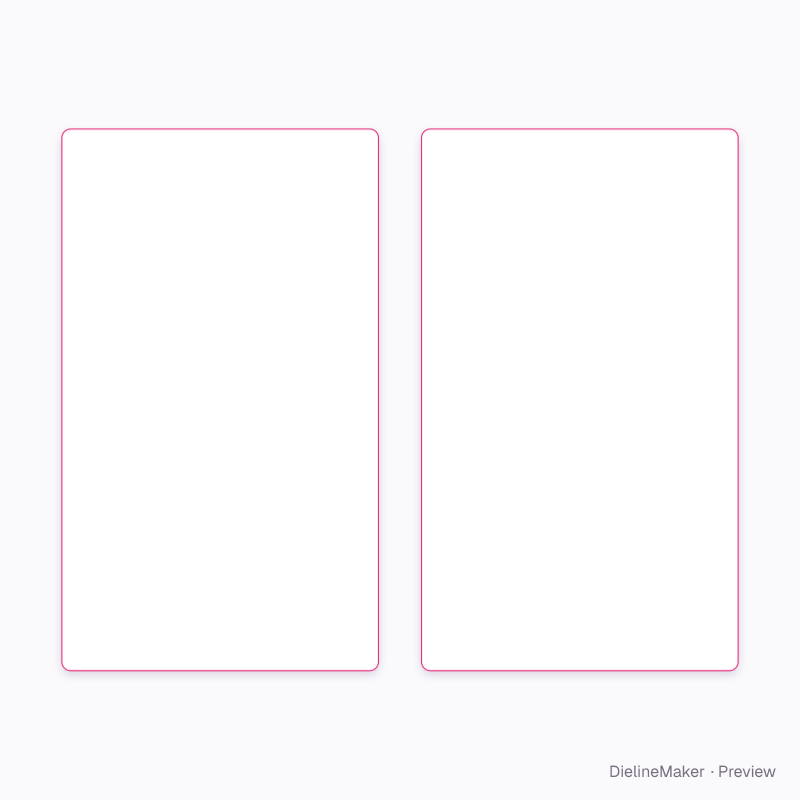

2 parts — Front label, Back label

Artwork area

0.007 m²

Good for

juice250 mlsquare bottlerectangular bottleolive oilspiritglass bottlelabel templatemockuplong side handle
