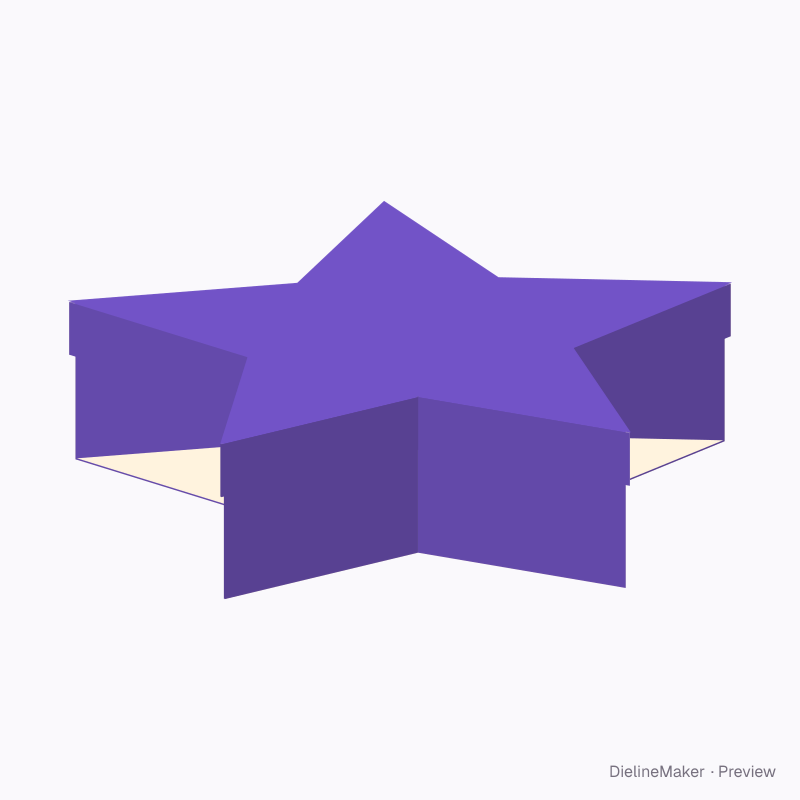

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
Star keepsake box dieline
A three to twelve-point star with adjustable inner valleys, scored convex and reverse corners, separate caps and a fitted lift-off lid. Continuous wall strips keep the concave points printable without overlapping tray flaps. A ready-sized preset of the star gift box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside250 × 240 × 65 mm
Outside251 × 241 × 66 mm
Flat blank897 × 72.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 250 · Length 240 · Height 65 mm
- Size range
- Width 80–350 · Length 80–350 · Height 20–100 mm
- Manufacturing
- 250.5 × 240.5 × 65.5 mm score to score · inside vs outside sizes
- Parts
- 4 parts — Lid cap, Base wall strip, Base cap, Lid wall strip
- Board area
- 0.142 m² · about 9 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Gift box lidLid cap | 217.3 × 100 | – |
| Pose rigLid cap | 40 × 100 | – |
| Base wall ×2Base wall strip | 89 × 65.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 89 × 7 | – |
| Base wall ×2Base wall strip | 88.3 × 65.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 88.3 × 7 | – |
| Base wall ×2Base wall strip | 88.7 × 65.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 88.7 × 7 | – |
| Base wall ×2Base wall strip | 89.1 × 65.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 89.1 × 7 | – |
| Base wall ×2Base wall strip | 88.5 × 65.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 88.5 × 7 | – |
| Wall glue seamBase wall strip | 10 × 65.5 | – × H + T |
| Base floorBase cap | 250 × 240 | L × W |
| Lid wall ×2Lid wall strip | 90.7 × 22 | – |
| Cap bonding tab ×2Lid wall strip | 90.7 × 7 | – |
11 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Lid depthmm
- Star pointscount
- Valley / point radius%
The star gift box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this star keepsake box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
