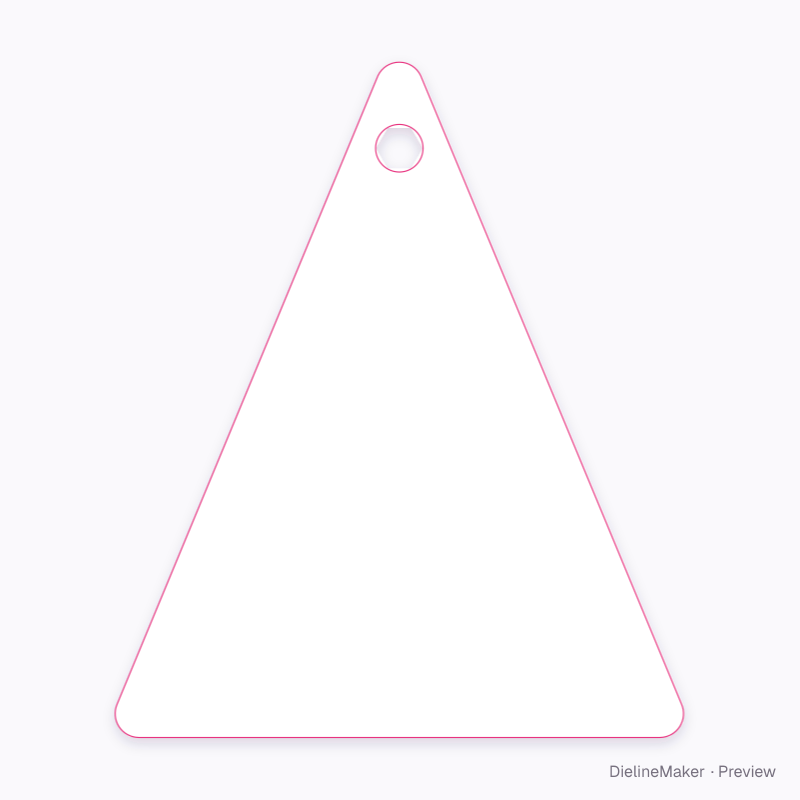

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
Triangle hang tag dieline
50 × 60 mm triangular swing tag with a 4 mm string hole below the apex. A ready-sized preset of the sticker & label — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside50 × 60 mm
Outside50 × 60 mm
Flat blank48 × 56.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 50 · Height 60 mm
- Size range
- Width 10–300 · Height 10–300 mm
- Manufacturing
- 50 × 60 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.001 m² · about 368 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
- Board options
- Label glossClear BOPPPaper 170SBS 300SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 9 options; the template and 3D preview follow each change.
- Profile2 options
- Shape18 options
- Corner radiusmm
- Lobe / wing sizemm
- Curl corner4 options
- Hang hole3 options
- Hole sizemm
- Hole from topmm
- Cut2 options
The sticker & label family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this triangle hang tag yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
