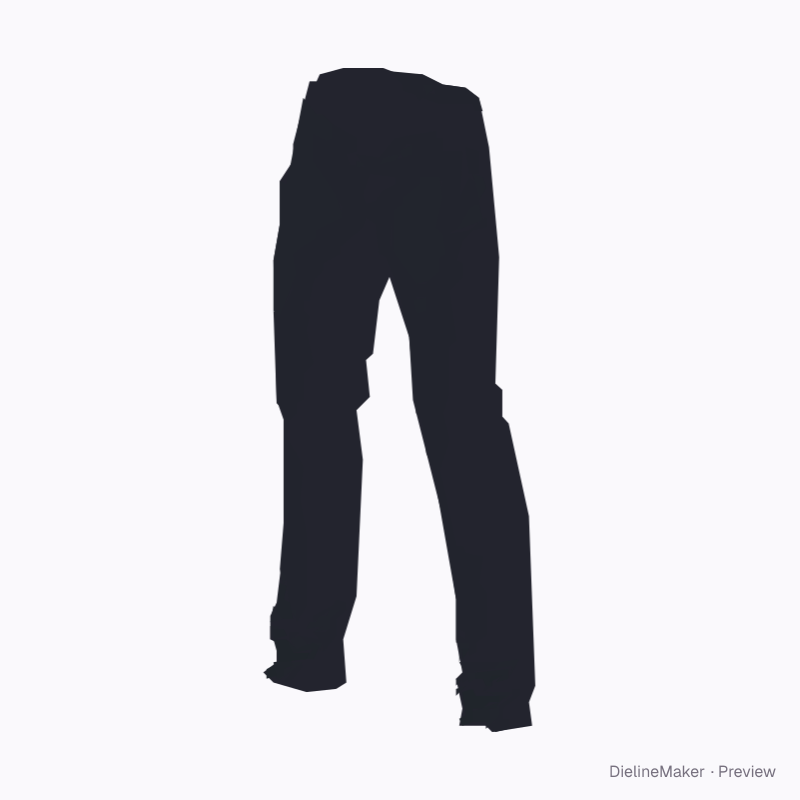

A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementApparel & merchandise
Straight-leg trousers decoration template
Original straight legs keep broad open hems, with an open waistband, belt loops, a buttoned fly and shaped pocket welt lips. No gathered ankle cuffs. Both front and rear leg decoration areas are independently editable. Export supplier decoration references; cutting, grading and all-over sewing panels are separate. A ready-sized preset of the straight-leg trousers — adjust the object dimensions and decoration area to preview your artwork at size.
Object size470 × 1050 mm
Artwork area98.7 × 252 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Hip width 470 · Garment height 1050 mm
- Size range
- Hip width 305.5–658 · Garment height 682.5–1365 mm
- Parts
- 4 parts — Left leg decoration · front, Right leg decoration · front, Left leg decoration · rear, Right leg decoration · rear
- Artwork area
- 0.099 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 2 options; the template and 3D preview follow each change.
- Object colour17 options
- Hanging on a hangeron / off
The straight-leg trousers family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this straight-leg trousers yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
