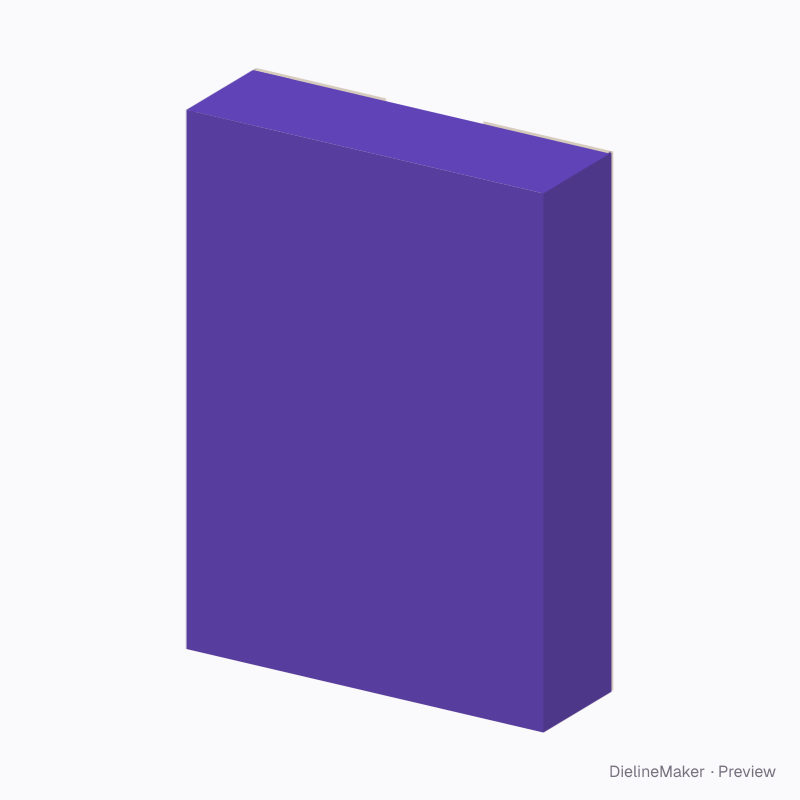

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA A20.20.03.03Tuck end
Card game box dieline
Tuck box for a 52-card poker deck. A ready-sized preset of the straight tuck end — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside65 × 20 × 90 mm
Outside66 × 21 × 91 mm
Flat blank183.5 × 153.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA A20.20.03.03
- Inside size
- Length 65 · Width 20 · Height 90 mm
- Size range
- Length 20–400 · Width 12–300 · Height 20–500 mm
- Manufacturing
- 65.5 × 20.5 × 90.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.021 m² · about 23 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350F-fluteE-flute WPET 0.3SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA A20.20.03.03 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 65.5 × 90.5 | L + T × H + T |
| Left side | 20.5 × 90.5 | W + T × H + T |
| Back | 65.5 × 90.5 | L + T × H + T |
| Right side | 20 × 90.5 | W × H + T |
| Glue flap | 12 × 90.5 | – × H + T |
| Top closure | 65.5 × 19.5 | L + T × W − T |
| Top tuck | 64.5 × 12 | L − T × – |
| Top dust flap | 20.5 × 16 | W + T × – |
| Top dust flap | 20 × 16 | W × – |
| Bottom closure | 65.5 × 19.5 | L + T × W − T |
| Bottom tuck | 64.5 × 12 | L − T × – |
| Bottom dust flap | 20.5 × 16 | W + T × – |
| Bottom dust flap | 20 × 16 | W × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 8 options; the template and 3D preview follow each change.
- Tuck depthmm
- Slit lockon / off
- Thumb notchon / off
- Notch radiusmm
- Windowon / off
- Cord handle holeson / off
- Safety clasp3 options
- Clasp widthmm
The straight tuck end family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this card game box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
