Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
Eight-card paint colour fan dieline
Build a fan of individually printed sample cards or one folded cover blank with paired holes, return panels or an open hanger aperture. Fan cards export separately; folded covers export as one two-sided board part. Samples and hardware for the covers are supplied separately; confirm fastener fit and stock performance with a physical prototype. A ready-sized preset of the swatch books and folded covers — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside60 × 160 mm
Outside60 × 160 mm
Flat blank60 × 160 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Card / cover width 60 · Card / cover height 160 mm
- Size range
- Card / cover width 40–400 · Card / cover height 60–300 mm
- Manufacturing
- 60 × 160 mm score to score · inside vs outside sizes
- Parts
- 8 parts — Sample card 1, Sample card 2, Sample card 3, Sample card 4, Sample card 5, Sample card 6, Sample card 7, Sample card 8
- Board area
- 0.077 m² · about 60 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Construction4 options
- Cardscount
- Fan spread°
- Binding hole diametermm
The swatch books and folded covers family
The same structure with sizes, boards and options set for a use.

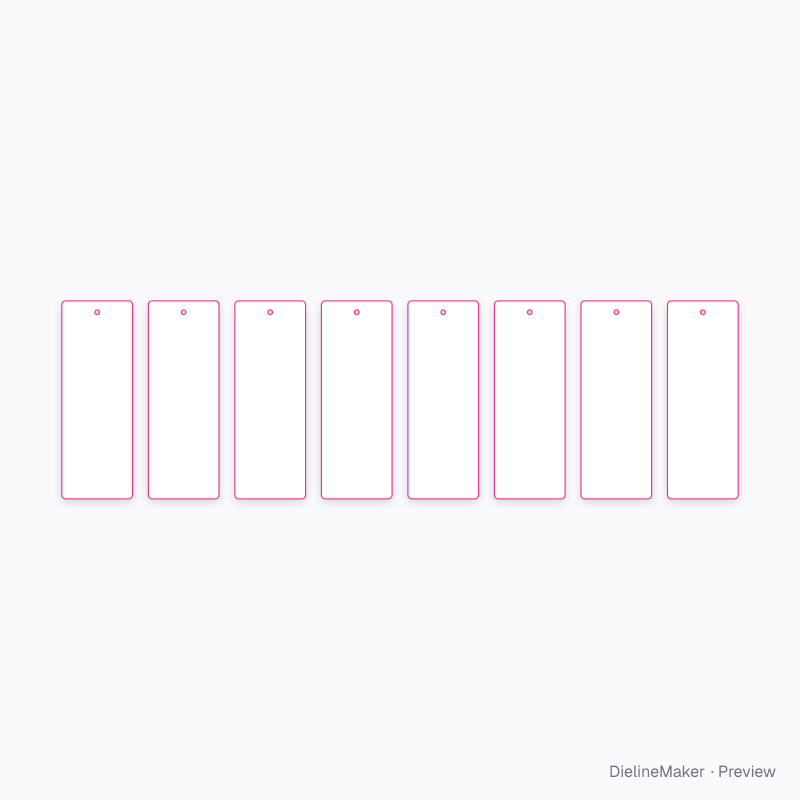

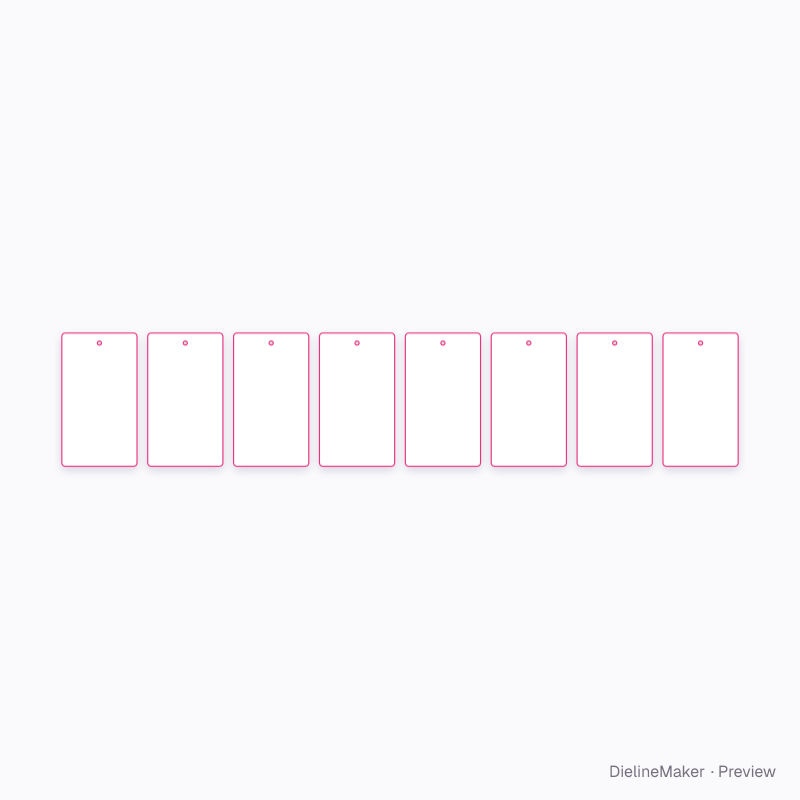

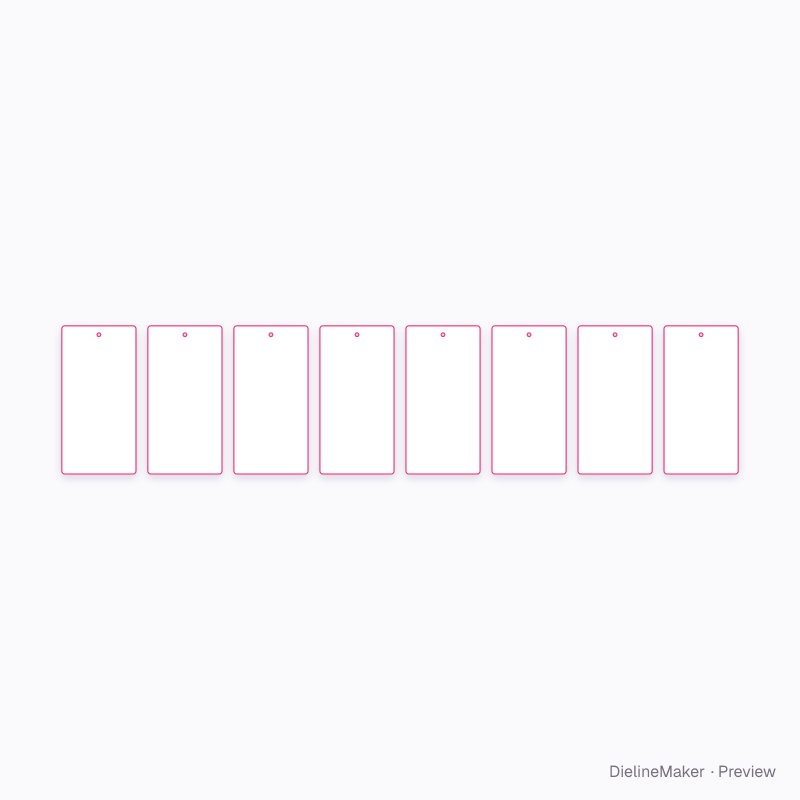

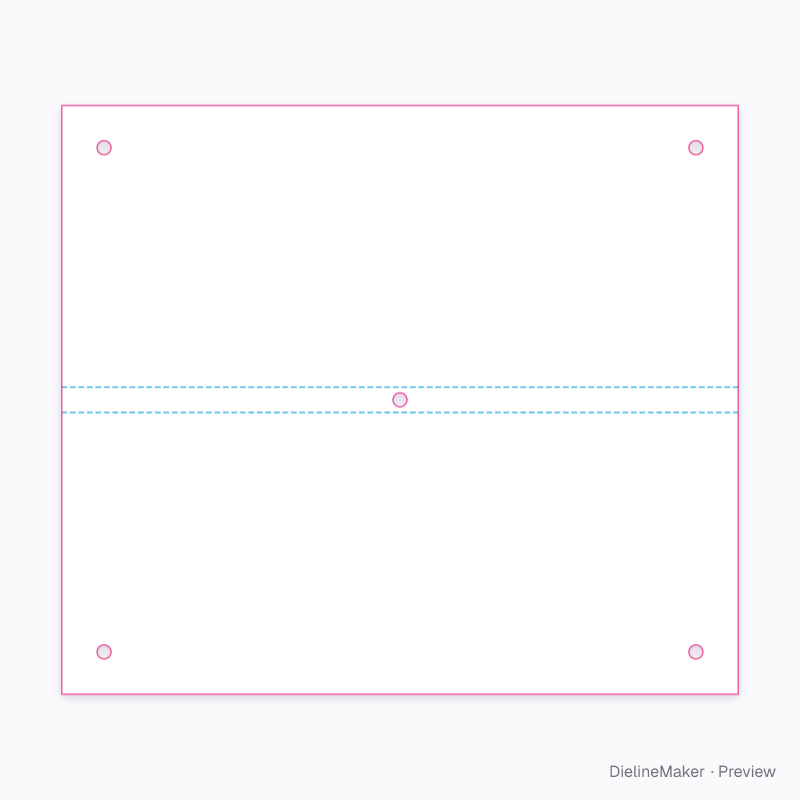

Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this eight-card paint colour fan yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
